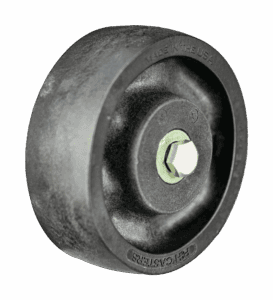

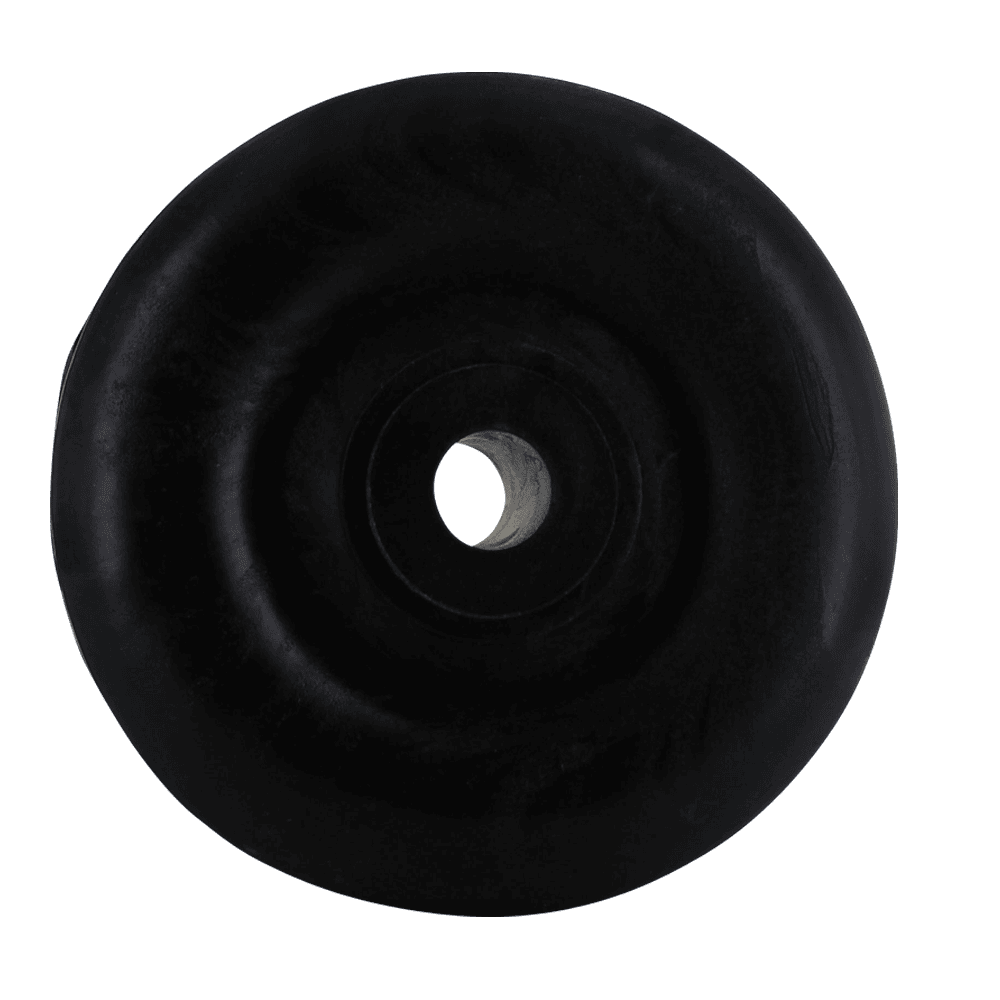

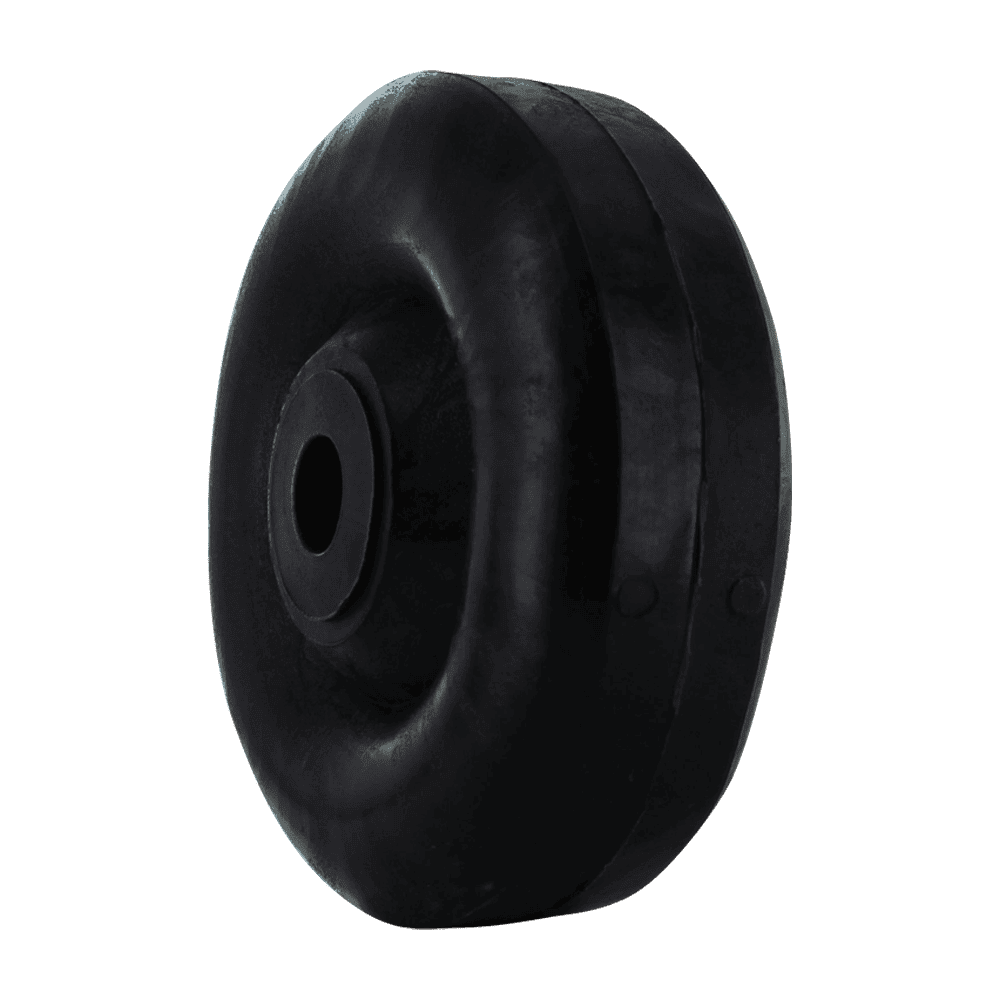

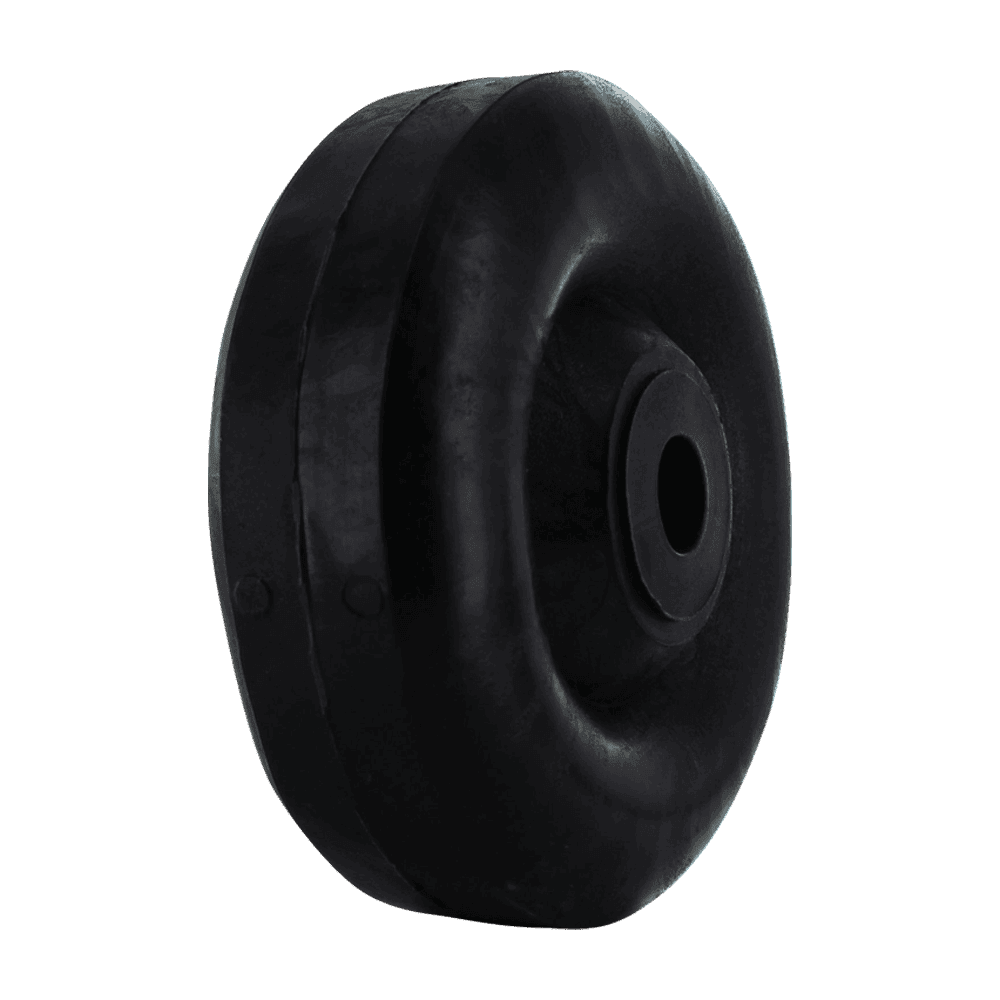

A 4″ light/medium duty HeatEater wheel with a 1-3/8″ donut tread in black and running on a 1/2″ plain bore with a 1-1/2″ hub. It carries 700 lb and operates continuously to 550°F, with a Shore D95 glass filled nylon body.
| Product Series | |
|---|---|
| Series Type | Light/Medium Duty |
| Wheel Diameter | |
| Wheel Tread Width | |
| Hub Width | |
| Wheel Profile | |
| Wheel Tread Material | Glass Filled Nylon |
| Wheel Core Material | Glass Filled Nylon |
| Wheel Durometer | |
| Wheel Color | |
| Bearing Type | |
| Wheel Bore Size | 1/2" |
| Load Capacity | |
| Operating Temp | |
| Options/Features | |
| Weight | |
| Threadguard |
Where it fits. HeatEater is our high temperature wheel line, built on glass filled nylon so the wheel can run through oven and proofer cycles without softening, glazing, or flat-spotting the way a standard tread would. Glass filled nylon is a high-strength tread that carries heavy loads at low rolling resistance and shrugs off water and most chemicals. It will not rust or corrode. Nylon is among the hardest treads offered, so it is best matched to smooth floors where capacity outweighs quiet.
Construction. This is a solid glass filled nylon wheel with no separate core. Hub width is 1-1/2″. A plain bore bearing carries the load.
Load and duty. The 700 lb rating is per wheel. Standard practice is to size a four-wheel set assuming three wheels carry the load, so this wheel supports roughly a 2,100 lb cart with margin for shock loading and uneven floors. Continuous operating range is -70°F to 550°F.
About Series 20. Series 20 wheels cover our light and medium duty range, from 150 lb to 400 lb per wheel. The series includes the crown tread polyurethane family that has become a standard in retail, along with our high temperature wheels for bakery and food service equipment.
