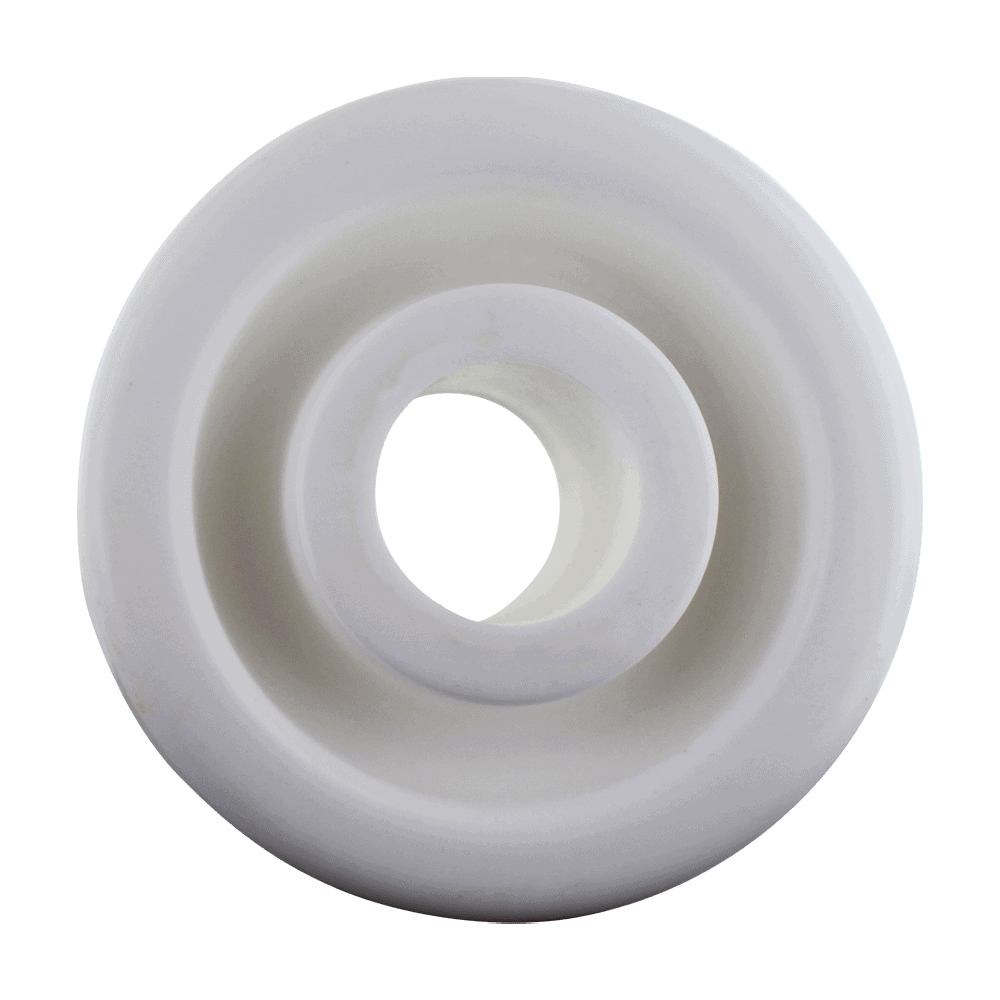

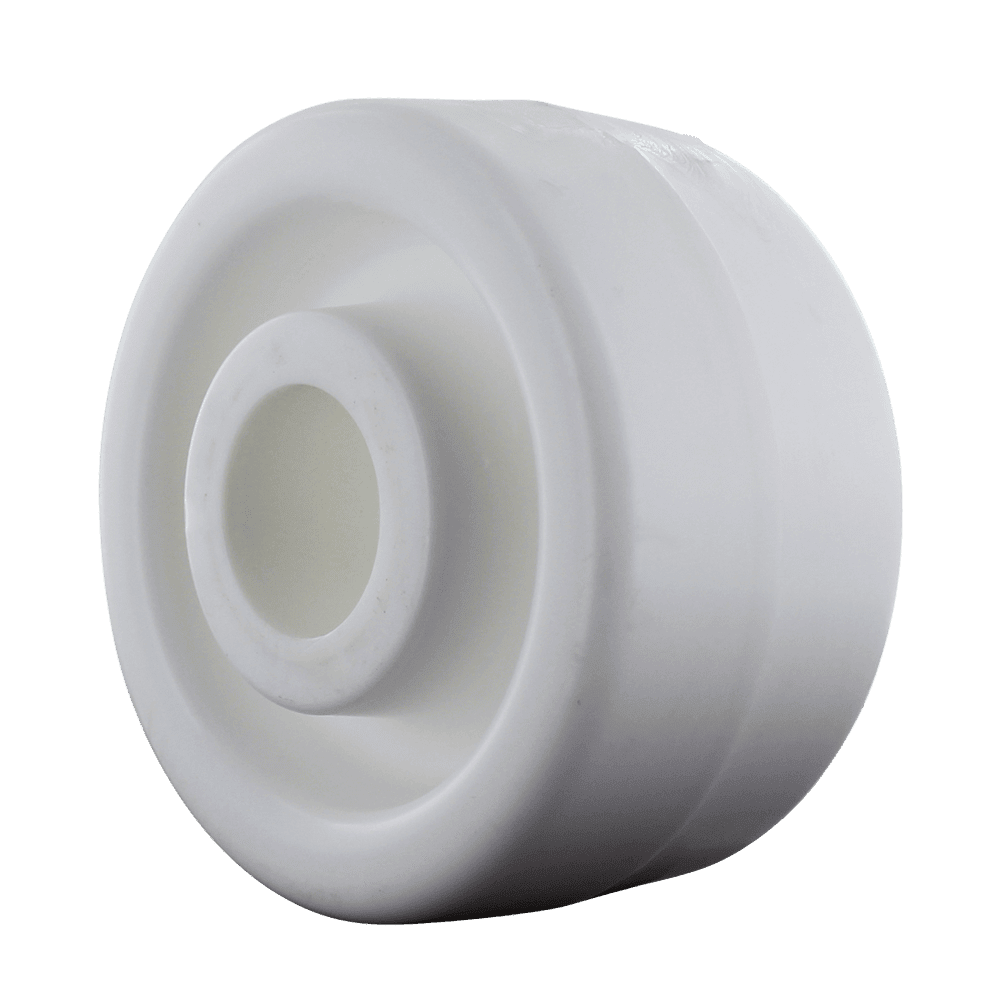

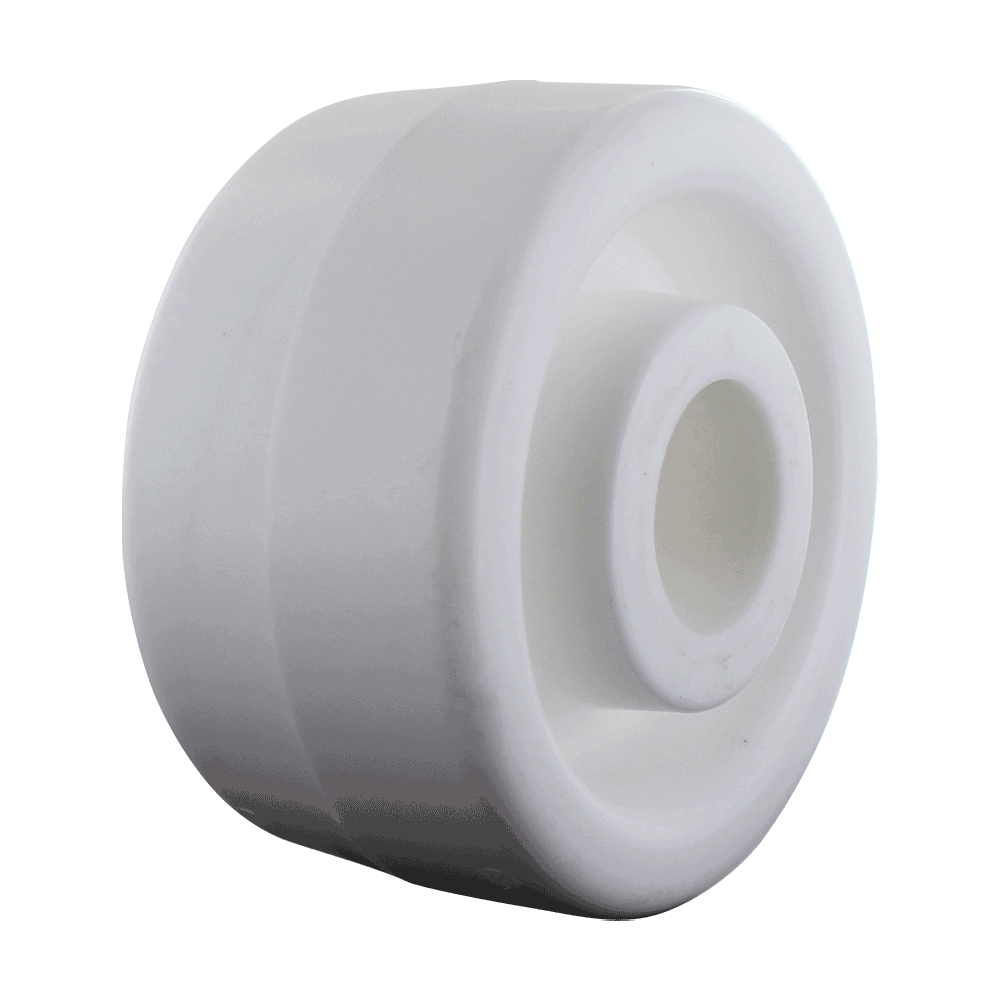

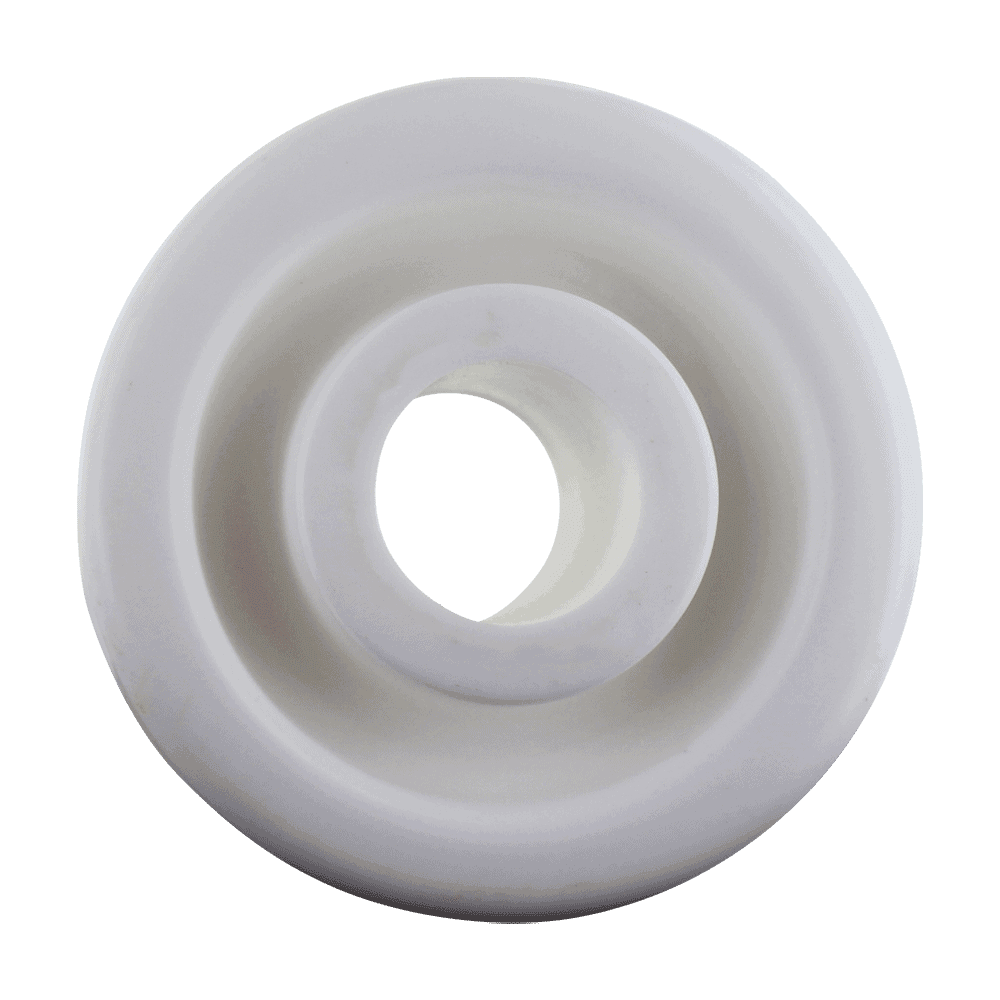

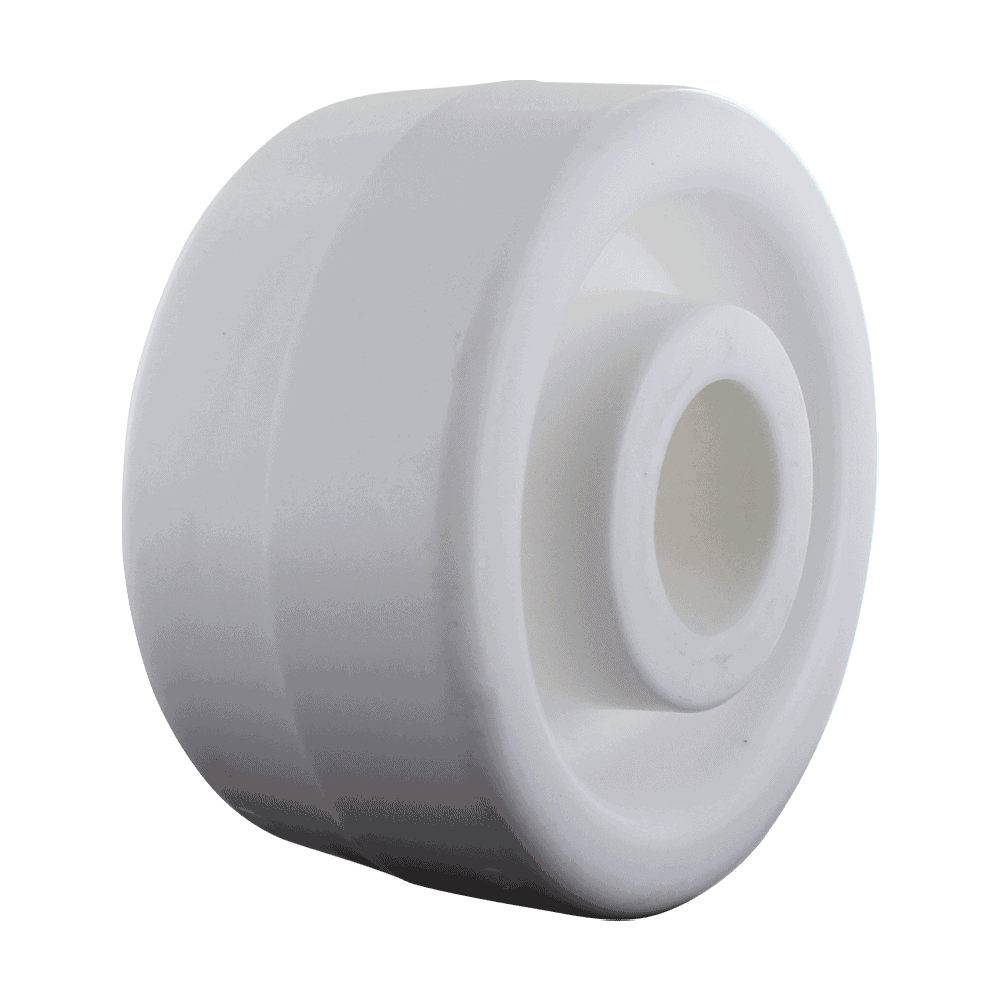

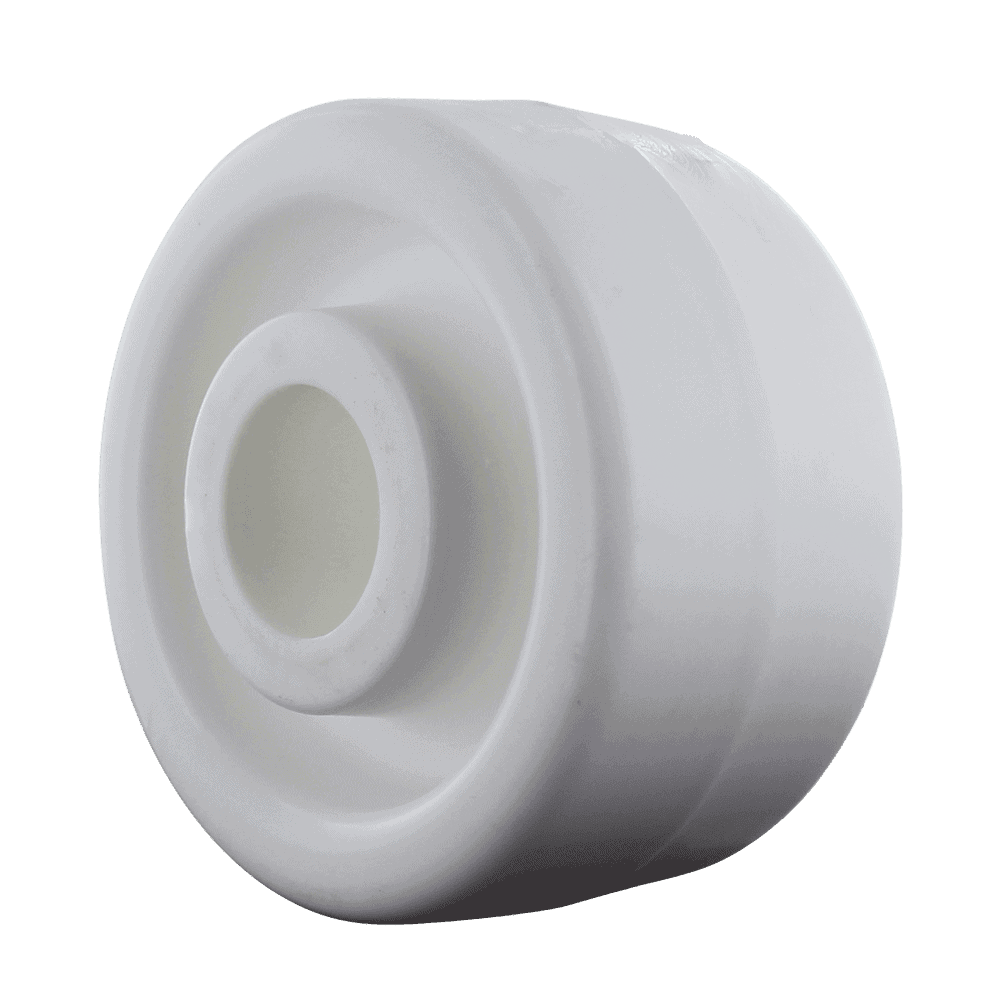

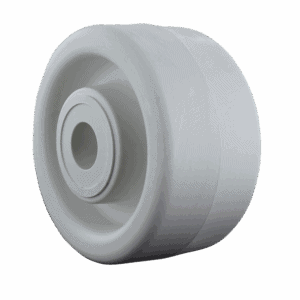

A 4″ light/medium duty Retort wheel with a 2″ flat tread in white and running on a 1-3/16″ plain bore with a 2-3/16″ hub. It carries 700 lb and operates continuously to 290°F, with a Shore D75 high temperature polypropylene body.
| Product Series | |
|---|---|
| Series Type | Light/Medium Duty |
| Wheel Diameter | |
| Wheel Tread Width | |
| Hub Width | |
| Wheel Profile | |
| Wheel Tread Material | High Temperature Polypropylene |
| Wheel Core Material | High Temperature Polypropylene |
| Wheel Durometer | |
| Wheel Color | |
| Bearing Type | |
| Wheel Bore Size | 1 3/16" |
| Load Capacity | |
| Operating Temp | |
| Options/Features | |
| Weight | |
| Warranty Duration | |
| Threadguard |
Where it fits. Retort is our autoclave and sterilizer line, using a high temperature polypropylene tread that tolerates repeated steam and retort cycles while staying non-marking and corrosion free. High temperature polypropylene extends the chemical resistance and low rolling resistance of a standard polypropylene tread into elevated-temperature service. It will not rust or absorb water, which suits it to equipment that cycles between washdown and heat.
Construction. This is a solid high temperature polypropylene wheel with no separate core. Hub width is 2-3/16″. A plain bore bearing carries the load.
Load and duty. The 700 lb rating is per wheel. Standard practice is to size a four-wheel set assuming three wheels carry the load, so this wheel supports roughly a 2,100 lb cart with margin for shock loading and uneven floors. Continuous operating range is -20°F to 290°F.
About Series 20. Series 20 wheels cover our light and medium duty range, from 150 lb to 400 lb per wheel. The series includes the crown tread polyurethane family that has become a standard in retail, along with our high temperature wheels for bakery and food service equipment.
