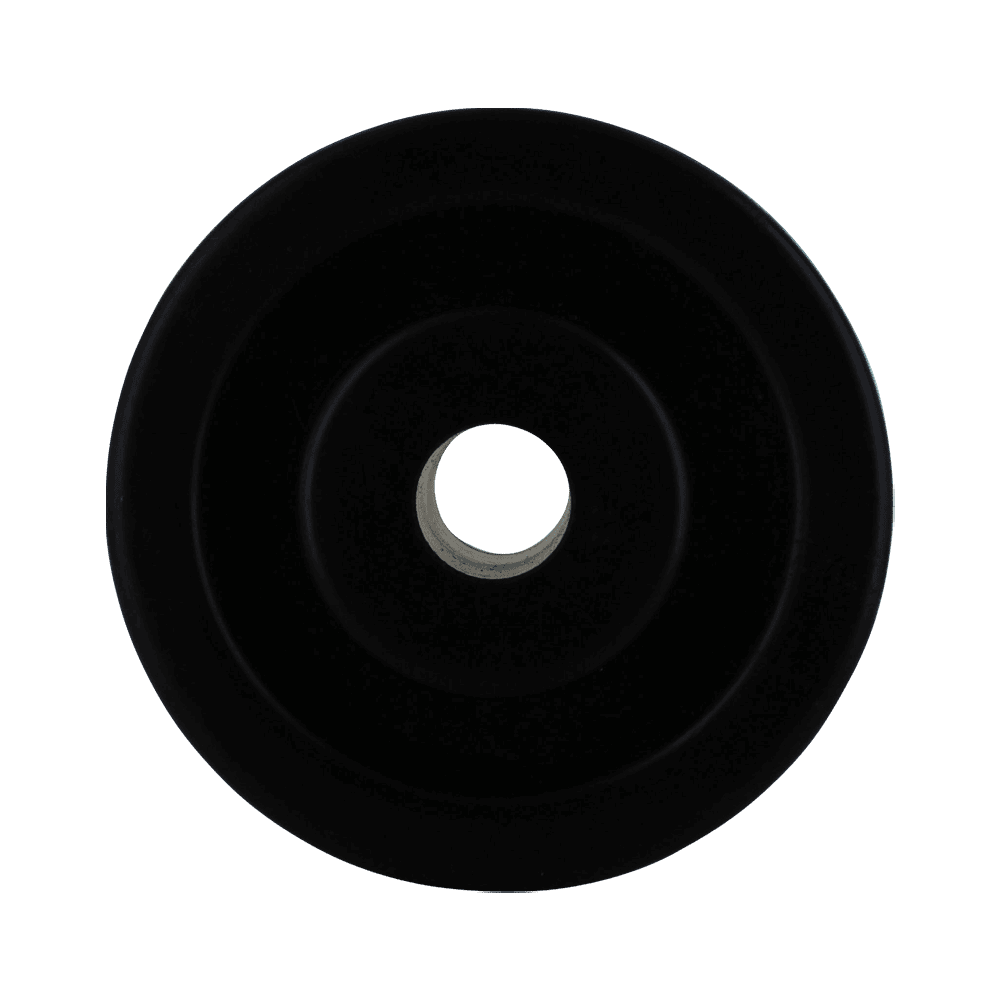

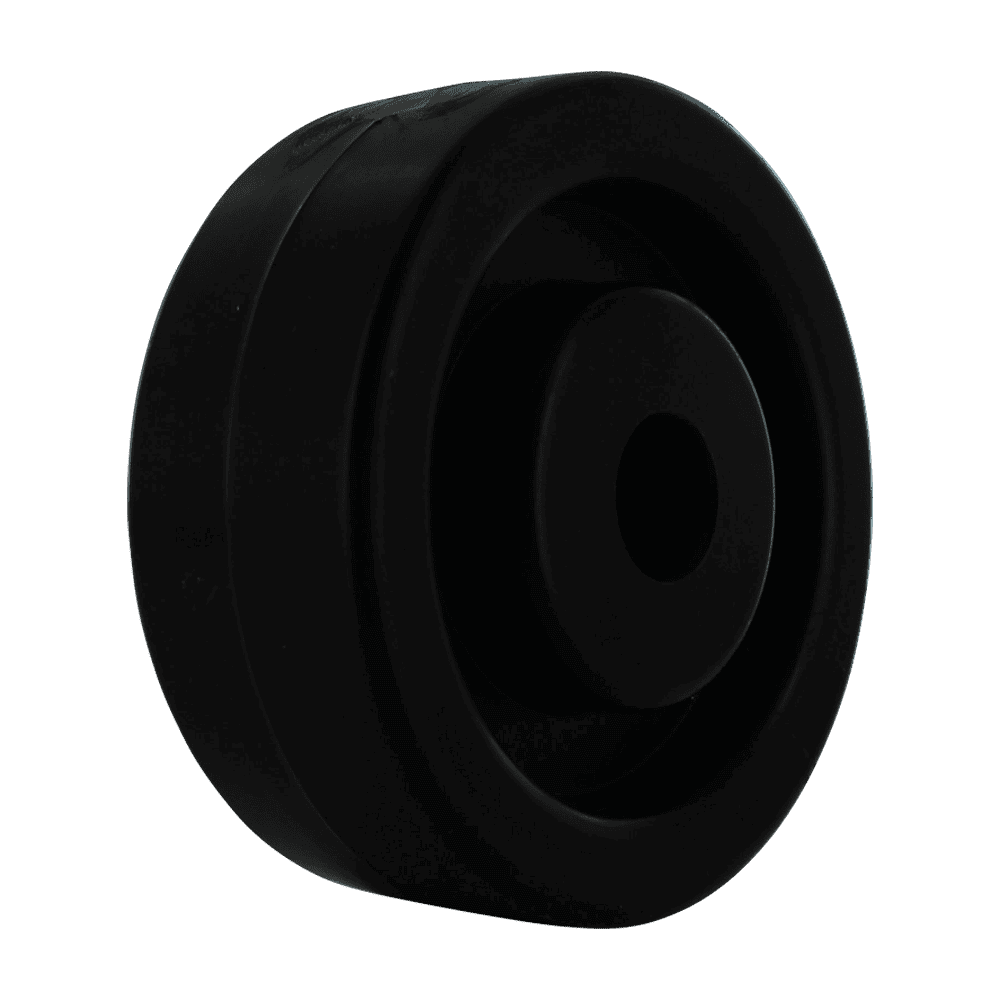

A 4″ light/medium duty polypropylene wheel with a 1-1/2″ flat tread in black and running on a 3/4″ plain bore with a 1-5/8″ hub. It carries 500 lb and operates from -20°F to 190°F, with a Shore D70 tread.
| Product Series | |
|---|---|
| Series Type | Light/Medium Duty |
| Wheel Diameter | |
| Wheel Tread Width | |
| Hub Width | |
| Wheel Profile | |
| Wheel Tread Material | Polypropylene |
| Wheel Core Material | Polypropylene |
| Wheel Durometer | |
| Wheel Color | |
| Bearing Type | |
| Wheel Bore Size | 3/4" |
| Load Capacity | |
| Operating Temp | |
| Options/Features | |
| Weight | |
| Threadguard |
Where it fits. Polypropylene is the economical workhorse tread. It will not rust, corrode, or absorb water, it resists most cleaning chemicals, and its hard surface rolls with very little effort. Hard treads transmit floor irregularity and noise, so specify polypropylene where floors are smooth and quiet operation is not the priority.
Construction. This is a solid polypropylene wheel with no separate core. Hub width is 1-5/8″. A plain bore bearing carries the load.
Load and duty. The 500 lb rating is per wheel. Standard practice is to size a four-wheel set assuming three wheels carry the load, so this wheel supports roughly a 1,500 lb cart with margin for shock loading and uneven floors. Continuous operating range is -20°F to 190°F.
About Series 20. Series 20 wheels cover our light and medium duty range, from 150 lb to 400 lb per wheel. The series includes the crown tread polyurethane family that has become a standard in retail, along with our high temperature wheels for bakery and food service equipment.
