Where it fits. Thermoplastic elastomer is a quiet, non-marking tread built for finished floors. It combines the low rolling resistance of a hard wheel with a cushioned ride that absorbs floor seams and thresholds, which reduces both noise and the push force an operator has to apply. This swivel model rotates a full 360 degrees and is normally specified two per cart with two rigid casters at the opposite end, or four per cart where the equipment has to move sideways in tight aisles.

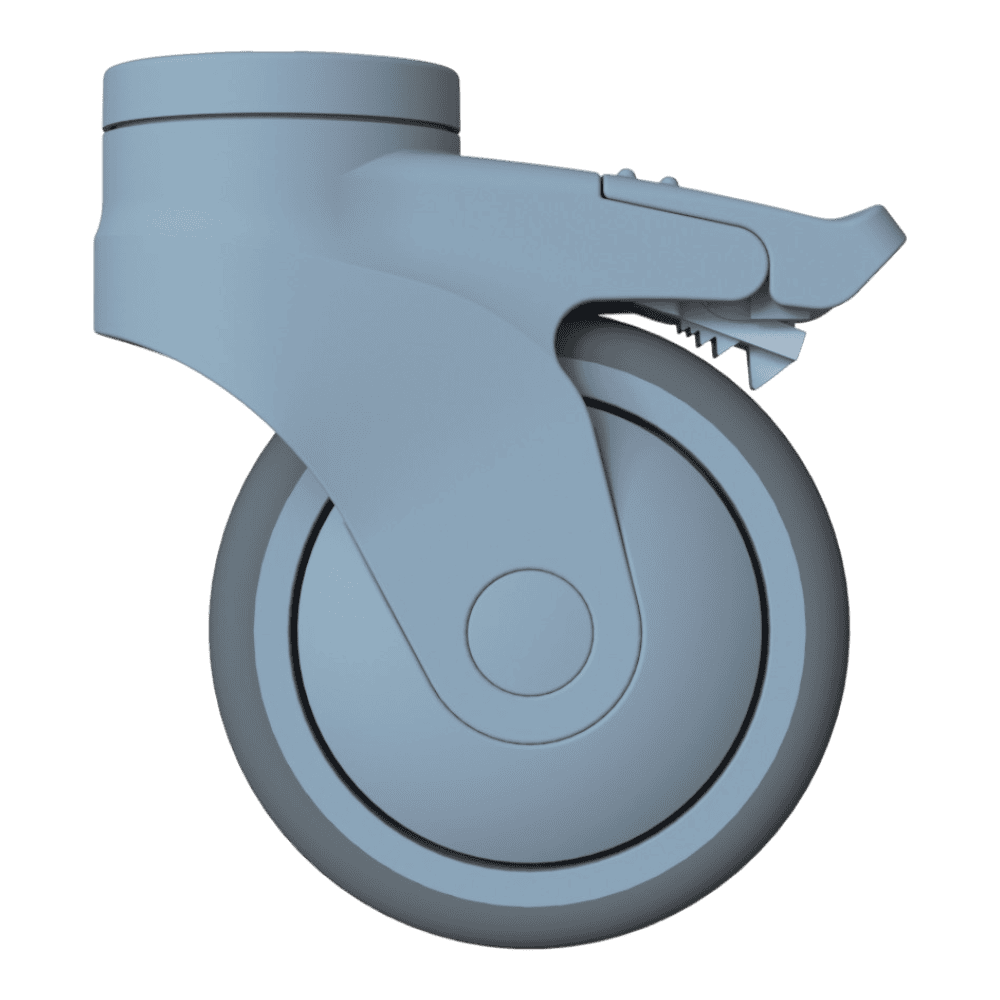

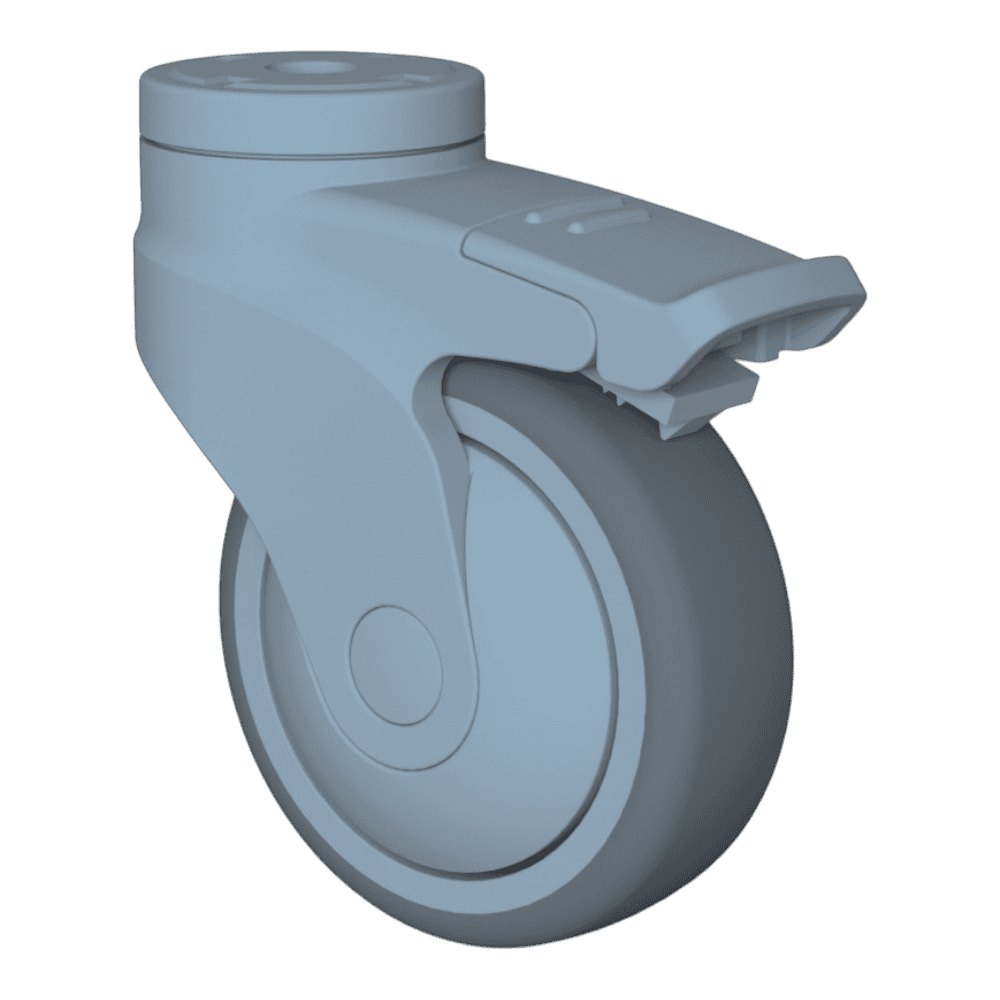

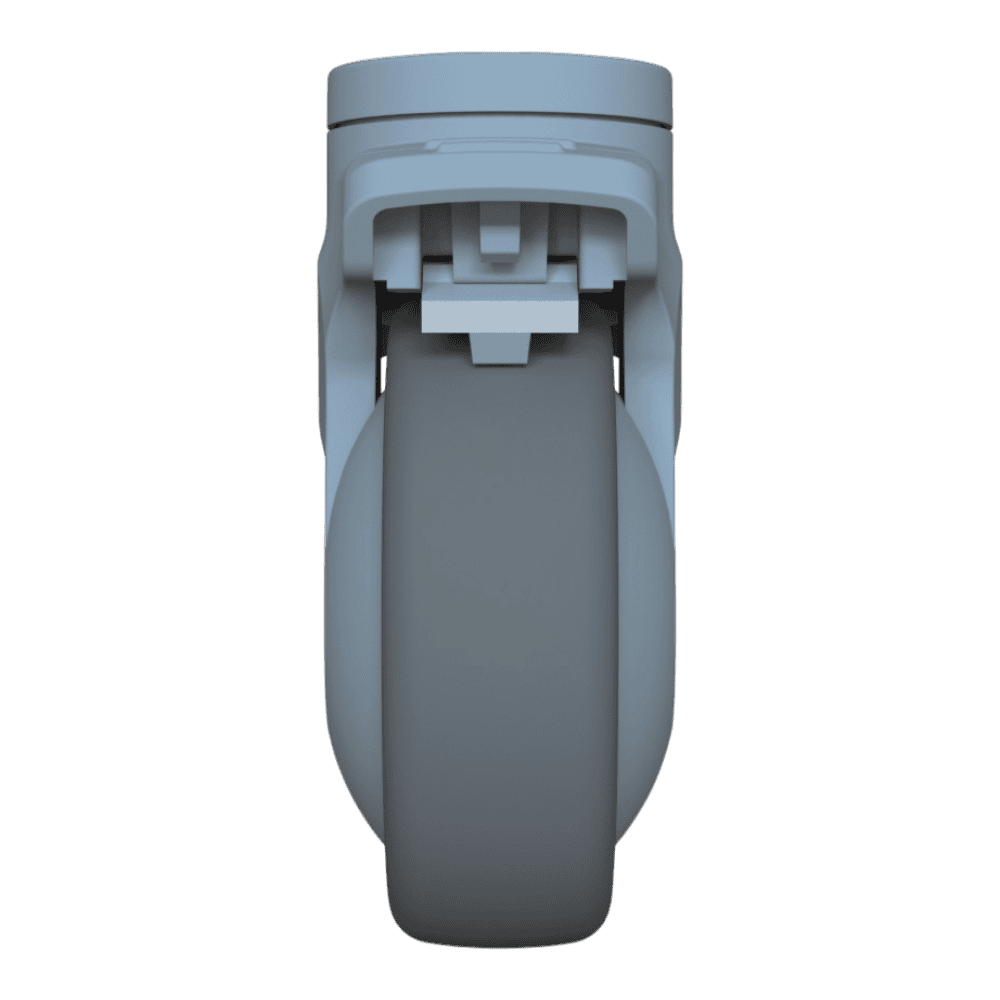

Construction. The body is molded from glass filled nylon and will not rust or corrode. It uses an open hole attachment. This model is supplied with a total lock brake. A steel single precision bearing carries the load.
Load and duty. The 165 lb rating is per caster. Standard practice is to size a four-caster set assuming three casters carry the load, so this model supports roughly a 450 lb cart with margin for shock loading and uneven floors. Continuous operating range is -4°F to 122°F.
About the line. Kinexus Light pairs a glass filled nylon body with quiet, non-marking 65A TPE wheels, integrated nylon thread guards, and precision wheel bearings, with a full total lock brake as a standard feature.
Standard Features:
Also available:
- Without a brake — MP20H06075BABE18
- With grip ring stem (F17 – 7/16″ x 7/8″) — MP20F17075BABE14
- With grip ring stem (F18 – 7/16″ x 1-7/16″) — MP20F18075BABE14
- With threaded stem (T27 – M10 X 25mm) — MP20T27075BABE14
Custom options:
- Custom tread and body colors
- Conductive wheels
- Stainless steel for washdown service
- Private label or custom branding
Please consult factory for all customizations.
