Where it fits. Thermoplastic rubber is the quiet, floor-friendly choice. The soft non-marking tread absorbs shock and rolls without the clatter a hard wheel produces on tile and sealed concrete, which makes it a common specification for patient areas, retail floors, and anywhere noise carries. Softer treads trade some rolling efficiency for that quiet. This swivel model rotates a full 360 degrees and is normally specified two per cart with two rigid casters at the opposite end, or four per cart where the equipment has to move sideways in tight aisles.

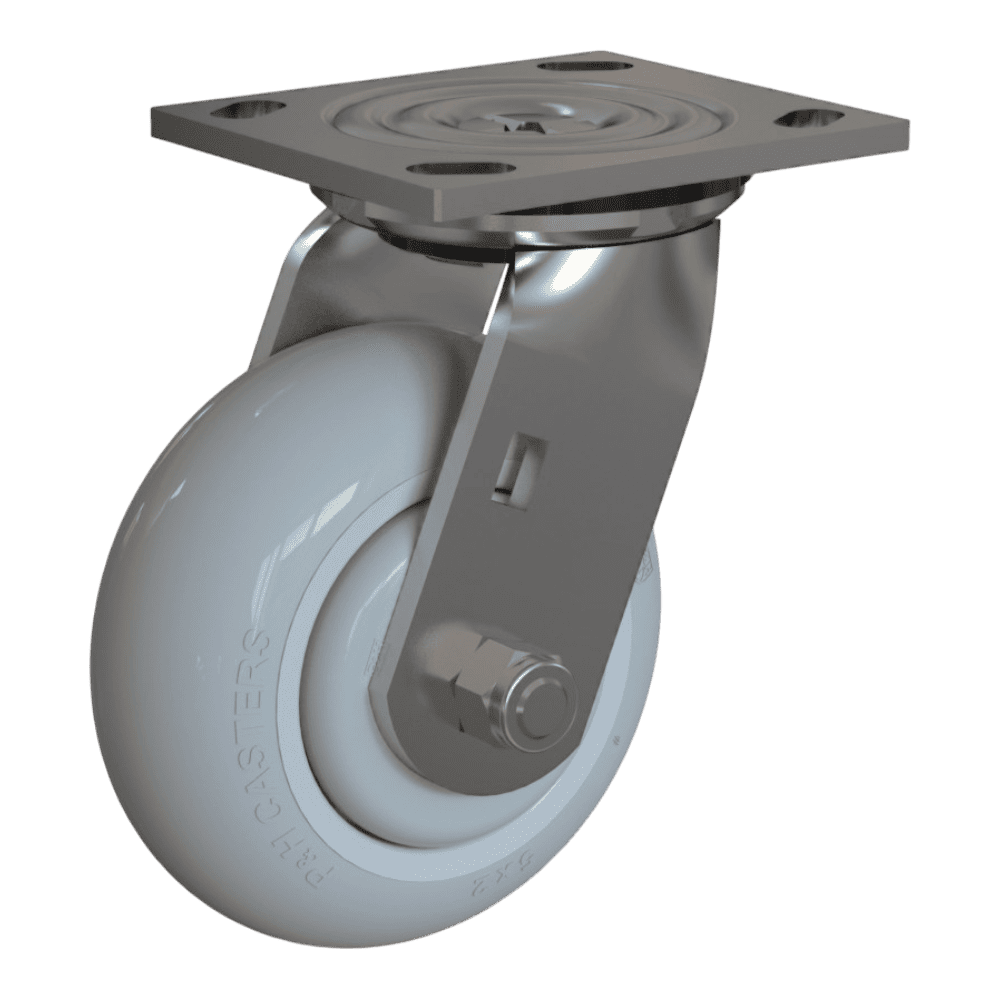

Construction. The yoke is formed from zinc-plated steel for corrosion resistance. It mounts on a 4″ x 4-1/2″ top plate. Thread guards are fitted to keep string, film, and debris out of the axle. A 1/2″ steel roller bearing rides on a 1/2″ axle for smooth, low-effort rolling.
Load and duty. The 425 lb rating is per caster. Standard practice is to size a four-caster set assuming three casters carry the load, so this model supports roughly a 1,250 lb cart with margin for shock loading and uneven floors. Continuous operating range is -30°F to 140°F.
About Series 40. Our medium and heavy duty line is engineered to make light work of heavy loads, handling up to 1,500 lb per caster with ergonomics and maneuverability in mind so that a loaded cart stays manageable. The line continues to expand as new industries bring us new requirements.
Standard Features:
- 360 degree swivel
- Large Threadguards
- Made in the USA
Also available:
- Rigid version — N42P352KGNZGL
- With quad x bearing — Z40P352NGPL
- With side brake, with quad x bearing — Z40P352NGPLB
- Rigid version, with quad x bearing — Z42P352NAPL
Custom options:
- Custom tread and body colors
- Conductive wheels
- Stainless steel for washdown service
- Private label or custom branding
Please consult factory for all customizations.
