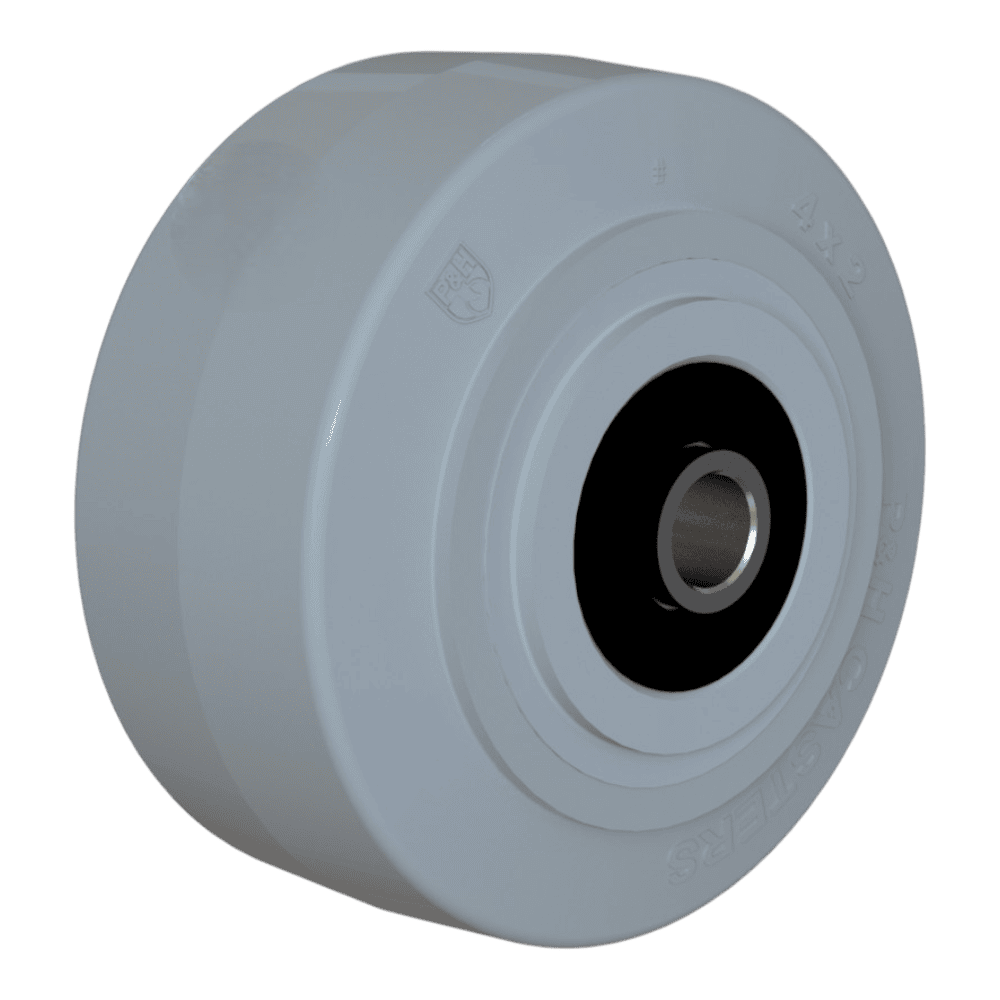

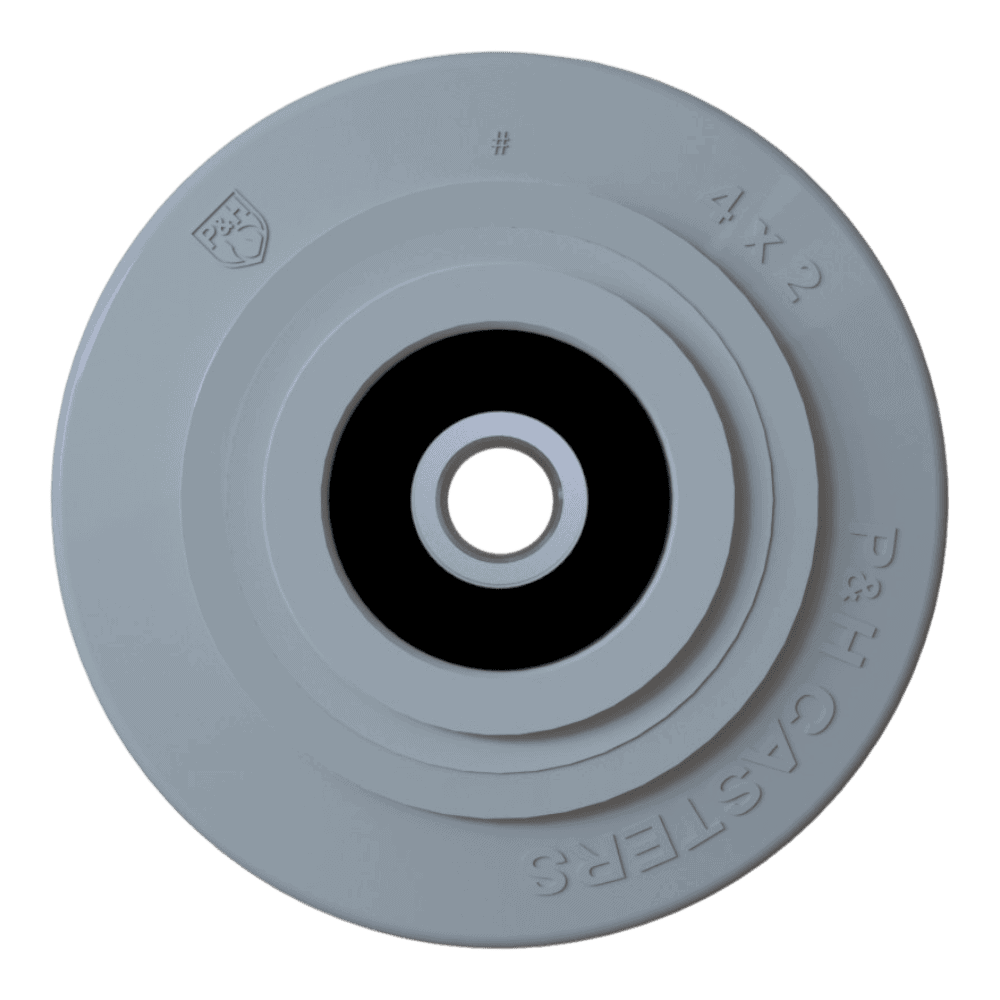

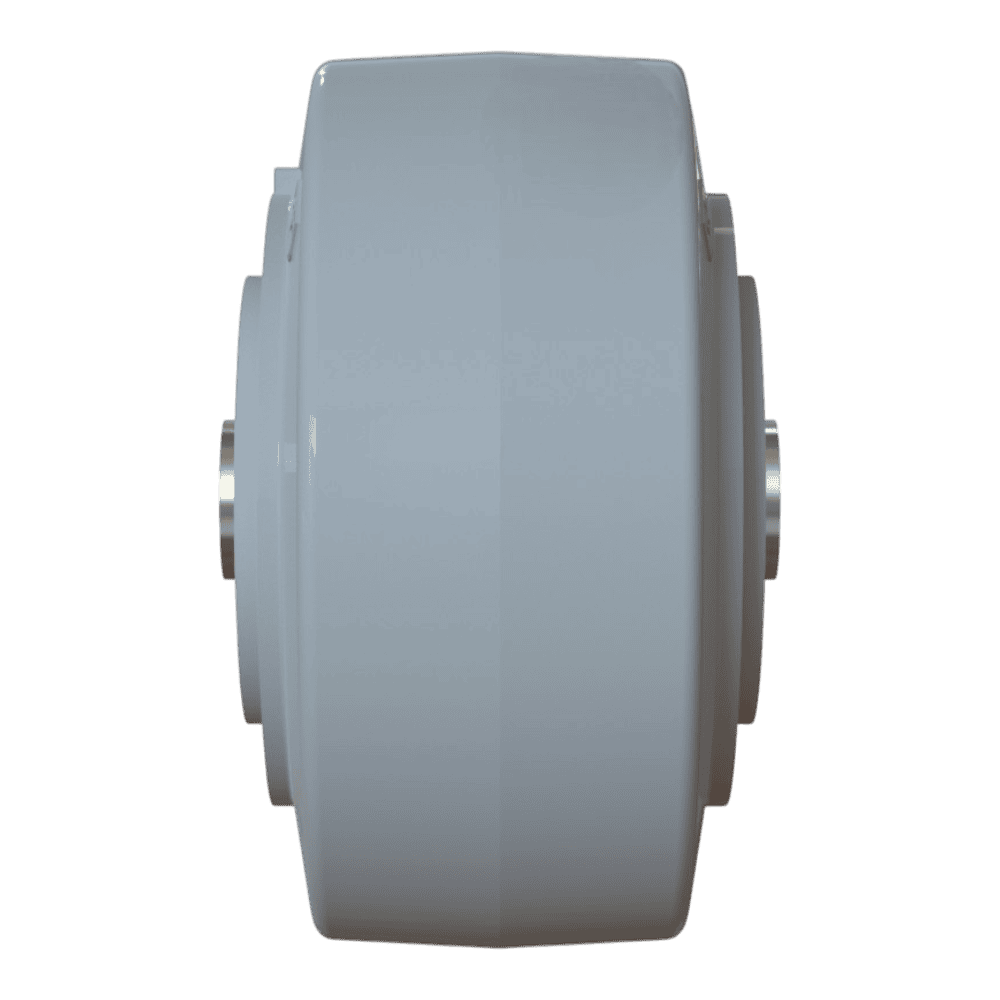

A 4″ medium/heavy duty TPE wheel with a 2″ flat tread in pantone cool c7 (gray) on pantone 4281c (gray) and running on a quad x bearing with a 62mm hub. It carries 400 lb and operates from -30°F to 140°F, with a Shore A70 tread.
| Product Series | |
|---|---|
| Series Type | Medium/Heavy Duty |
| Wheel Diameter | |
| Wheel Tread Width | |
| Hub Width | |
| Wheel Profile | |
| Wheel Tread Material | TPE |
| Wheel Core Material | Polypropylene |
| Wheel Durometer | |
| Wheel Color | |
| Bearing Type | |
| Bearing Material | |
| Load Capacity | |
| Bearing Size | |
| Operating Temp | |
| Options/Features | |
| Weight | |
| Threadguard |
Where it fits. Thermoplastic elastomer is a quiet, non-marking tread built for finished floors. It combines the low rolling resistance of a hard wheel with a cushioned ride that absorbs floor seams and thresholds, which reduces both noise and the push force an operator has to apply.
Construction. The tread is molded to a polypropylene core. Hub width is 62.60mm. A steel Quad X bearing carries the load.
Load and duty. The 400 lb rating is per wheel. Standard practice is to size a four-wheel set assuming three wheels carry the load, so this wheel supports roughly a 1,200 lb cart with margin for shock loading and uneven floors. Continuous operating range is -30°F to 140°F.
About the line. ElastoPro wheels deliver quiet, non-marking performance for demanding commercial and industrial environments. The 70A TPE tread combines the low rolling resistance of a hard wheel with the cushioned, floor-protecting ride of a soft wheel, reducing operator fatigue and protecting finished floors. The tread is bonded to a corrosion-resistant polypropylene core that will not rust. Made in the USA.
