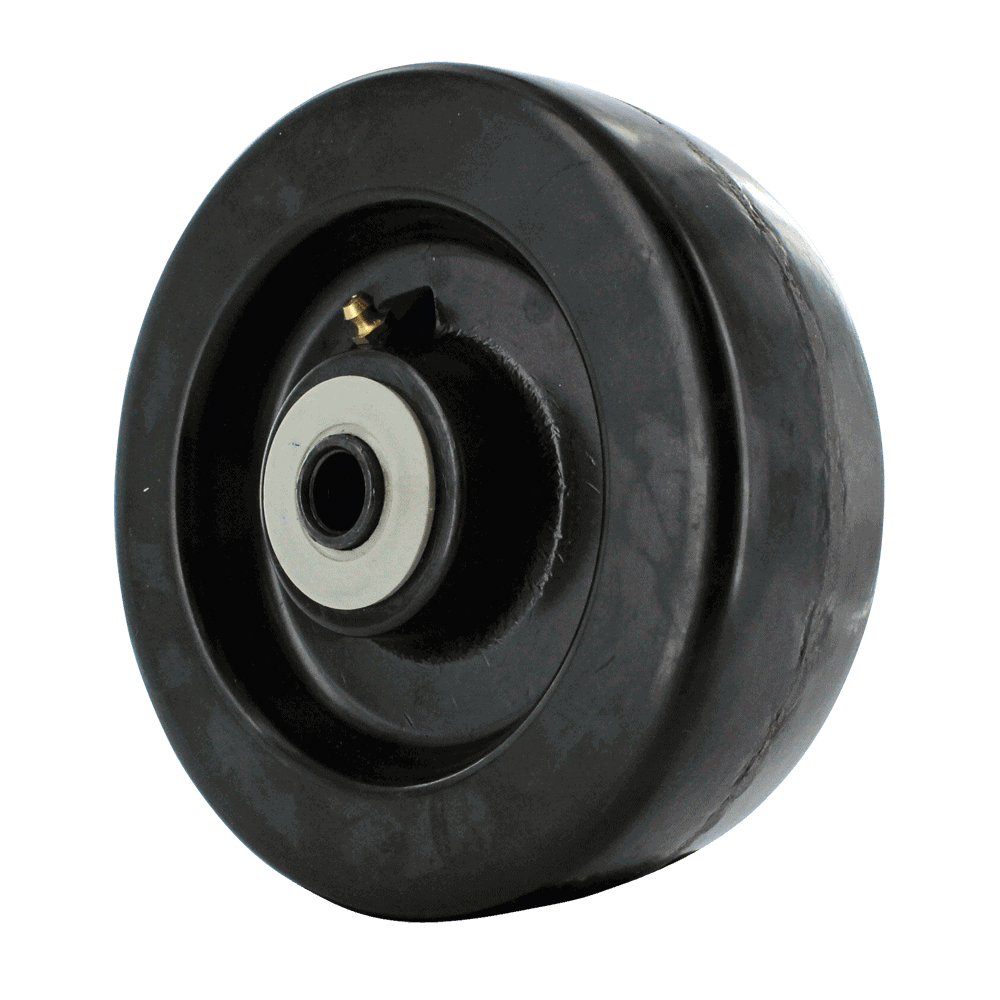

A 6″ medium/heavy duty phenolic wheel with a 2″ flat tread in black and running on a 1/2″ roller bearing with a 2-7/16″ hub. It carries 1,200 lb and operates from -30°F to 195°F, with a Shore D95 tread.
| Product Series | |
|---|---|
| Series Type | Medium/Heavy Duty |
| Wheel Diameter | |
| Wheel Tread Width | |
| Hub Width | |
| Wheel Profile | |
| Wheel Tread Material | Phenolic |
| Wheel Core Material | Phenolic |
| Wheel Durometer | |
| Wheel Color | |
| Bearing Type | |
| Wheel Bore Size | 1/2" |
| Bearing Material | |
| Load Capacity | |
| Bearing Size | |
| Operating Temp | |
| Weight | |
| Warranty Duration | |
| Threadguard |
Where it fits. Phenolic is the workhorse tread for hot, dry environments. The wheel is molded from resin-impregnated fabric that resists most chemicals, water, and steam without softening, which is why it moves between a cooler and a hot oven without flat-spotting. Hard treads transmit floor irregularity, so specify phenolic where floors are smooth and sealed.
Construction. This is a solid phenolic wheel with no separate core. Hub width is 2-7/16″. Thread guards are fitted to keep string, film, and debris out of the bore. A 1/2″ steel roller bearing fits a 1/2″ axle.
Load and duty. The 1,200 lb rating is per wheel. Standard practice is to size a four-wheel set assuming three wheels carry the load, so this wheel supports roughly a 3,600 lb cart with margin for shock loading and uneven floors. Continuous operating range is -30°F to 195°F.
About Series 40. Our medium and heavy duty wheels handle loads up to 1,500 lb per wheel, engineered with ergonomics and maneuverability in mind so that a loaded cart stays manageable across a wide range of environments.
