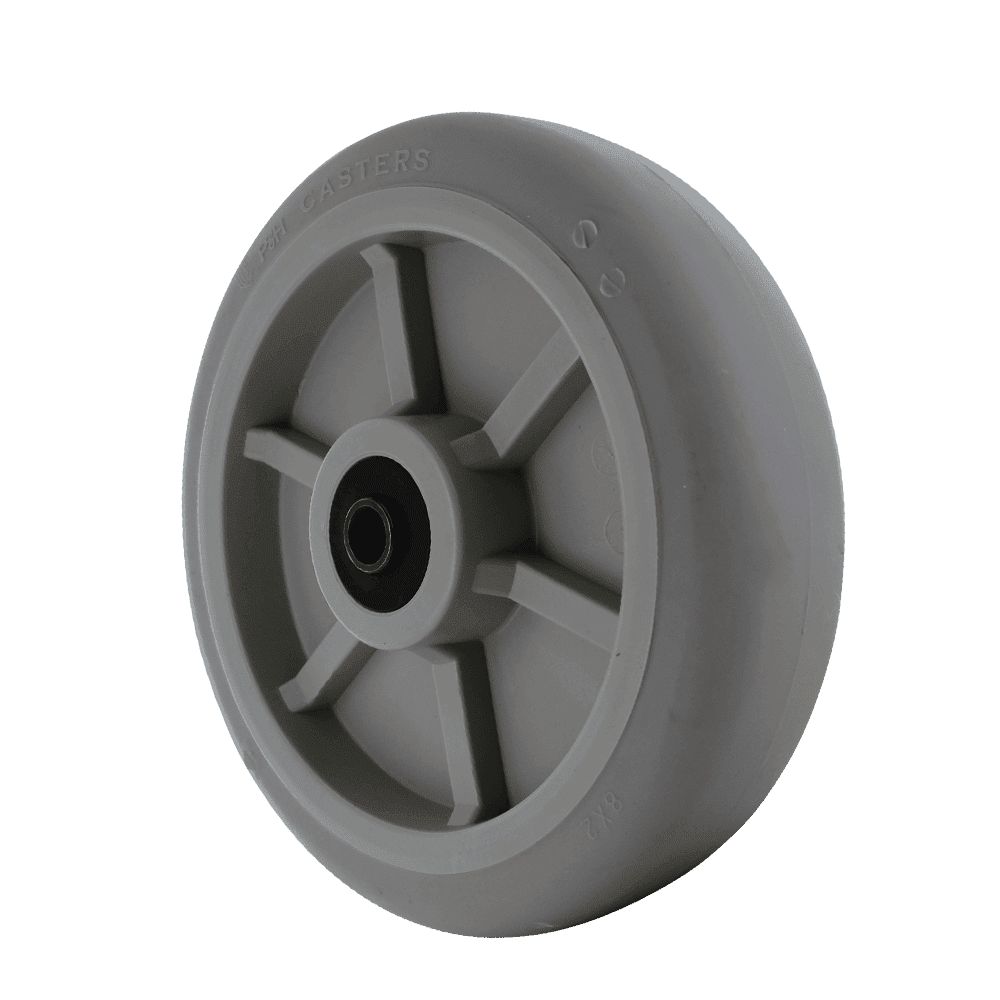

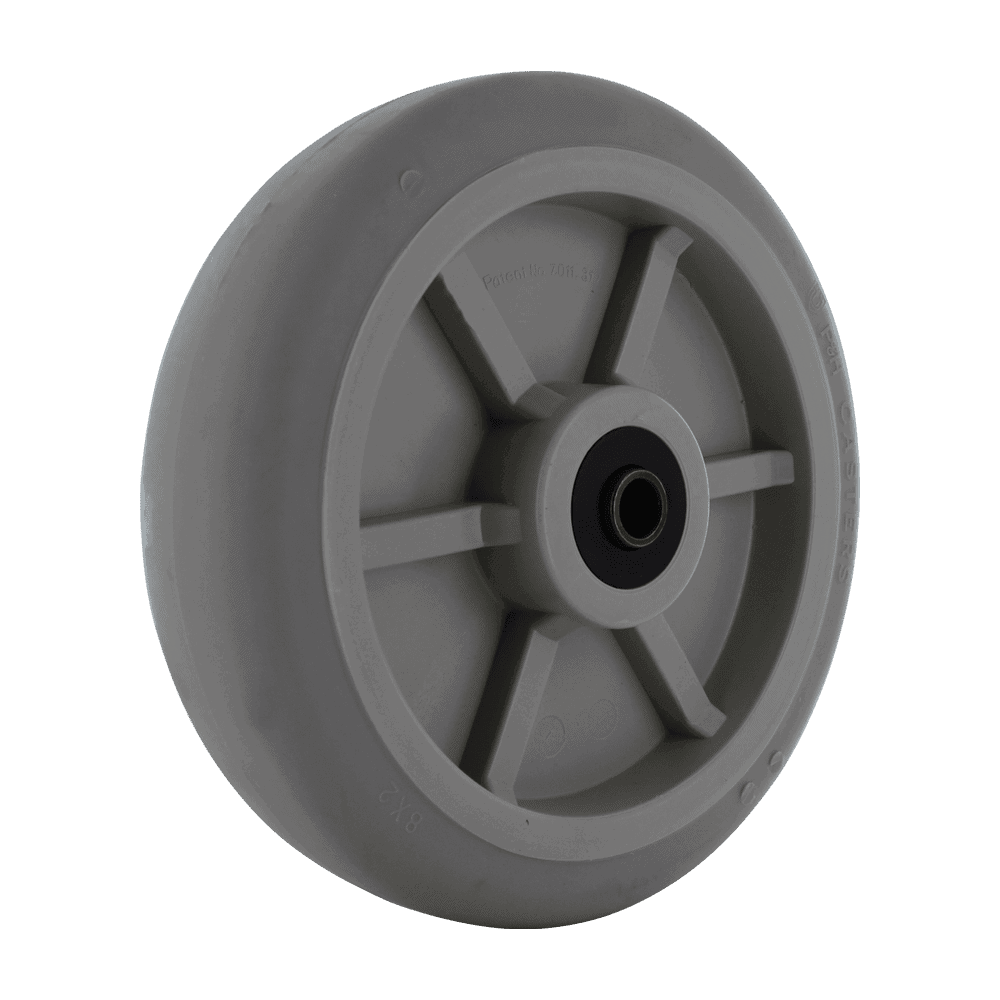

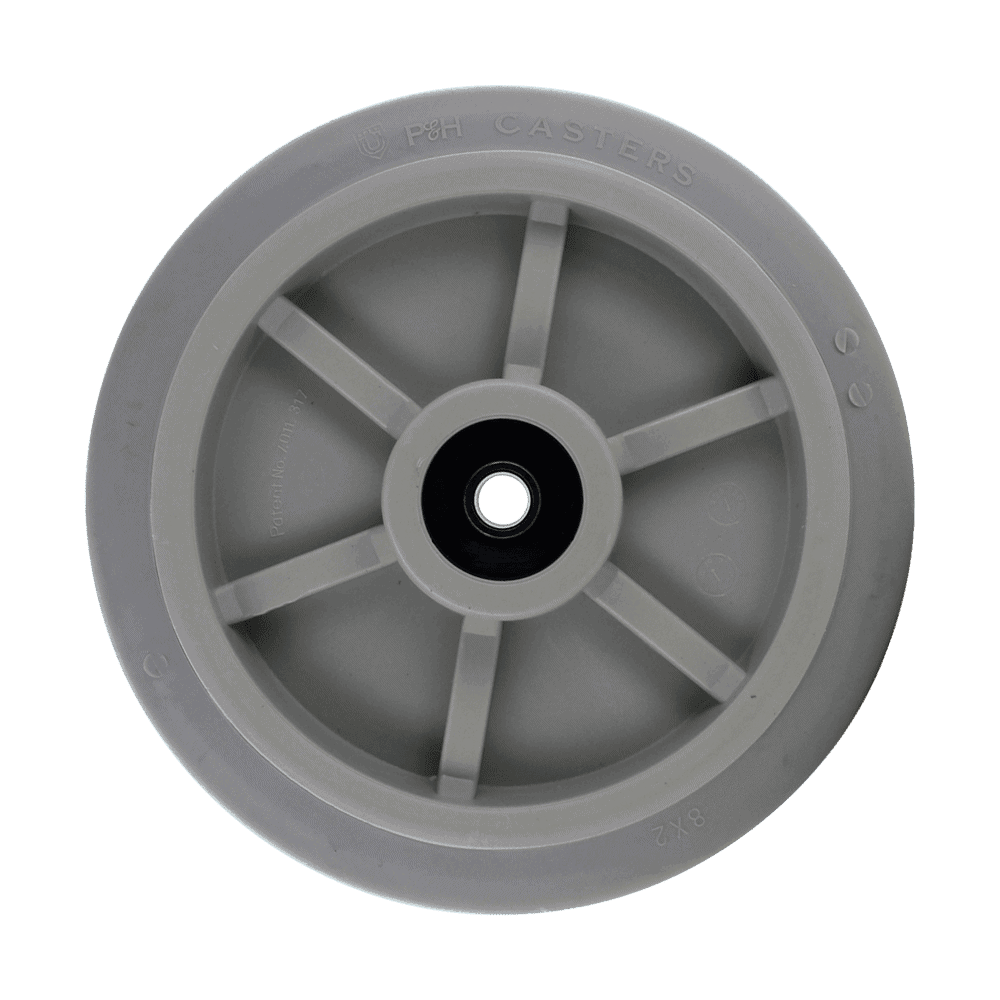

An 8″ medium/heavy duty TPR wheel with a 2″ crown tread in gray on gray and running on a 1/2″ quad x bearing with a 2-1/2″ hub. It carries 550 lb and operates from -30°F to 140°F, with a Shore A70 tread.
| Product Series | |
|---|---|
| Series Type | Medium/Heavy Duty |
| Wheel Diameter | |
| Wheel Tread Width | |
| Hub Width | |
| Wheel Profile | |
| Wheel Tread Material | TPR |
| Wheel Core Material | Polypropylene |
| Wheel Durometer | |
| Wheel Color | |
| Bearing Type | |
| Wheel Bore Size | 1/2" |
| Bearing Material | |
| Load Capacity | |
| Bearing Size | |
| Operating Temp | |
| Weight | |
| Warranty Duration | |
| Threadguard |
Where it fits. Thermoplastic rubber is the quiet, floor-friendly choice. The soft non-marking tread absorbs shock and rolls without the clatter a hard wheel produces on tile and sealed concrete, which makes it a common specification for patient areas, retail floors, and anywhere noise carries. Softer treads trade some rolling efficiency for that quiet.
Construction. The tread is molded to a polypropylene core. Hub width is 2-1/2″. A 1/2″ steel Quad X bearing fits a 1/2″ axle.
Load and duty. The 550 lb rating is per wheel. Standard practice is to size a four-wheel set assuming three wheels carry the load, so this wheel supports roughly a 1,650 lb cart with margin for shock loading and uneven floors. Continuous operating range is -30°F to 140°F.
About Series 40. Our medium and heavy duty wheels handle loads up to 1,500 lb per wheel, engineered with ergonomics and maneuverability in mind so that a loaded cart stays manageable across a wide range of environments.
