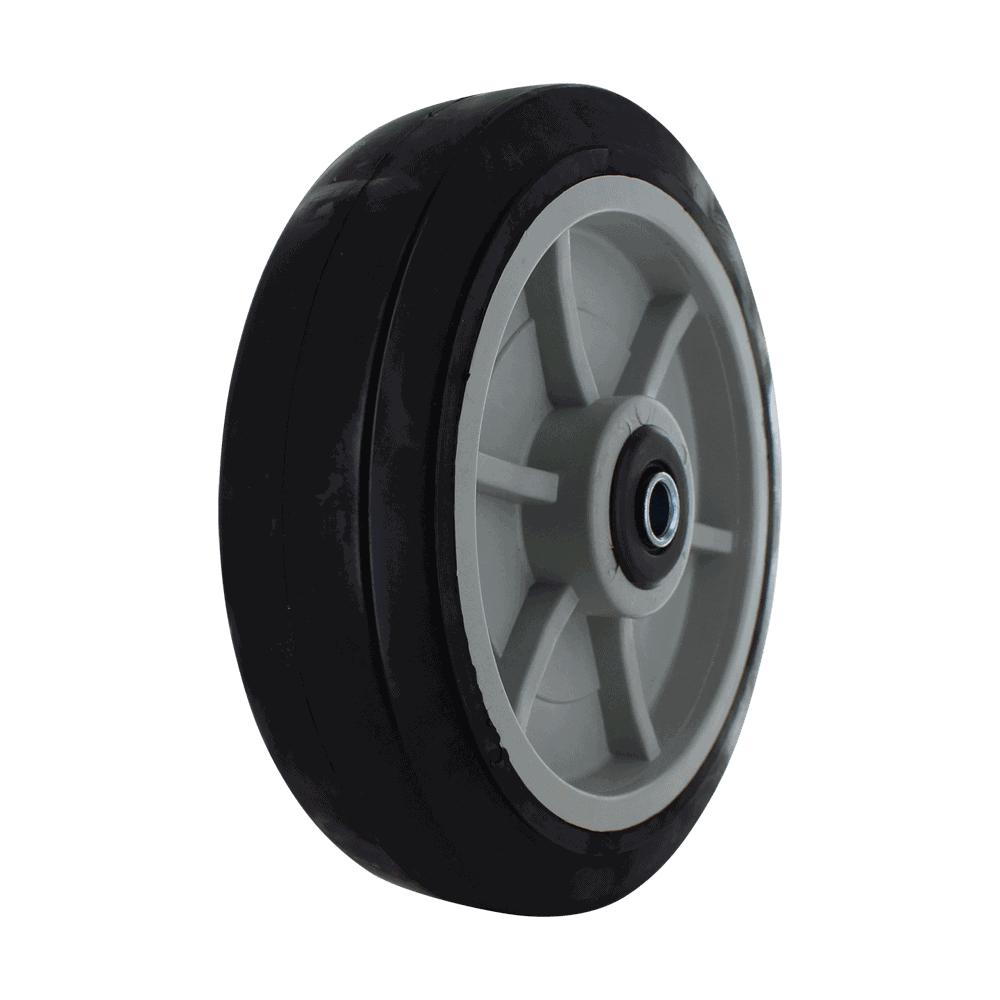

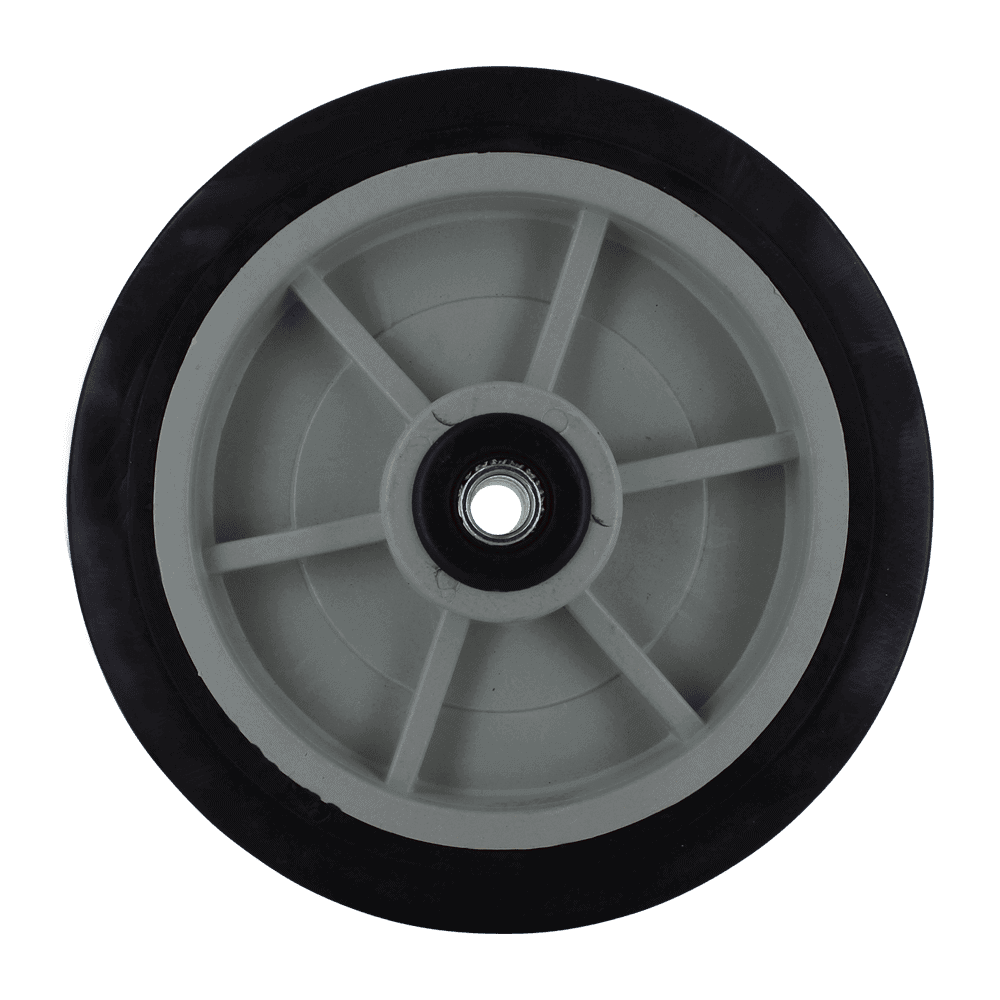

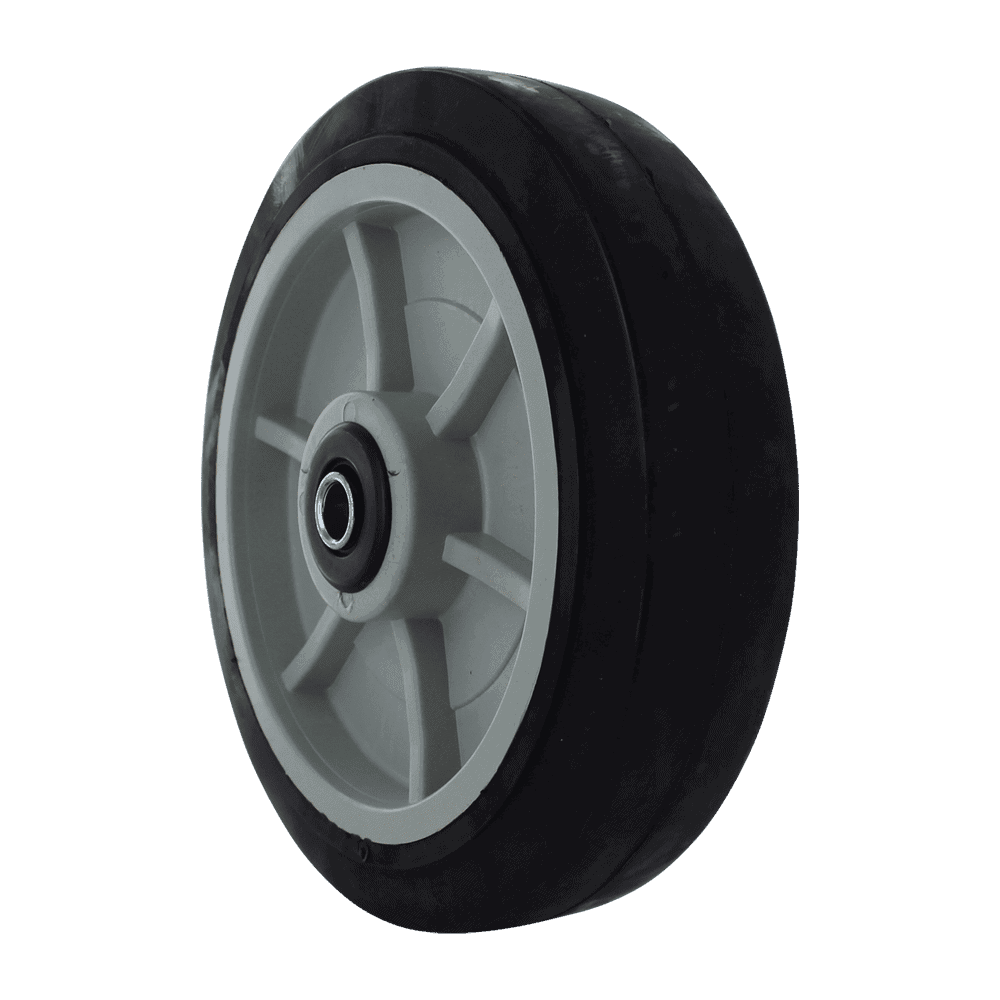

An 8″ medium/heavy duty TPU wheel with a 2″ flat tread in black on tan and running on a 1/2″ roller bearing with a 2-7/16″ hub. It carries 800 lb and operates from -30°F to 140°F, with a Shore A98 tread.
| Product Series | |
|---|---|
| Series Type | Medium/Heavy Duty |
| Wheel Diameter | |
| Wheel Tread Width | |
| Hub Width | |
| Wheel Profile | |
| Wheel Tread Material | TPU |
| Wheel Core Material | Polypropylene |
| Wheel Durometer | |
| Wheel Color | |
| Bearing Type | |
| Wheel Bore Size | 1/2" |
| Bearing Material | |
| Load Capacity | |
| Bearing Size | |
| Operating Temp | |
| Warranty Duration | |
| Threadguard |
Where it fits. Thermoplastic polyurethane is the general-purpose upgrade tread. It is non-marking, resists oils and most mild chemicals, and carries more load than rubber at the same diameter without the noise of a hard tread. TPU holds its shape under sustained static load, so carts parked loaded overnight are less prone to flat spots.
Construction. The tread is molded to a polypropylene core. Hub width is 2-7/16″. Thread guards are fitted to keep string, film, and debris out of the bore. A 1/2″ steel roller bearing fits a 1/2″ axle.
Load and duty. The 800 lb rating is per wheel. Standard practice is to size a four-wheel set assuming three wheels carry the load, so this wheel supports roughly a 2,400 lb cart with margin for shock loading and uneven floors. Continuous operating range is -30°F to 140°F.
About Series 40. Our medium and heavy duty wheels handle loads up to 1,500 lb per wheel, engineered with ergonomics and maneuverability in mind so that a loaded cart stays manageable across a wide range of environments.
