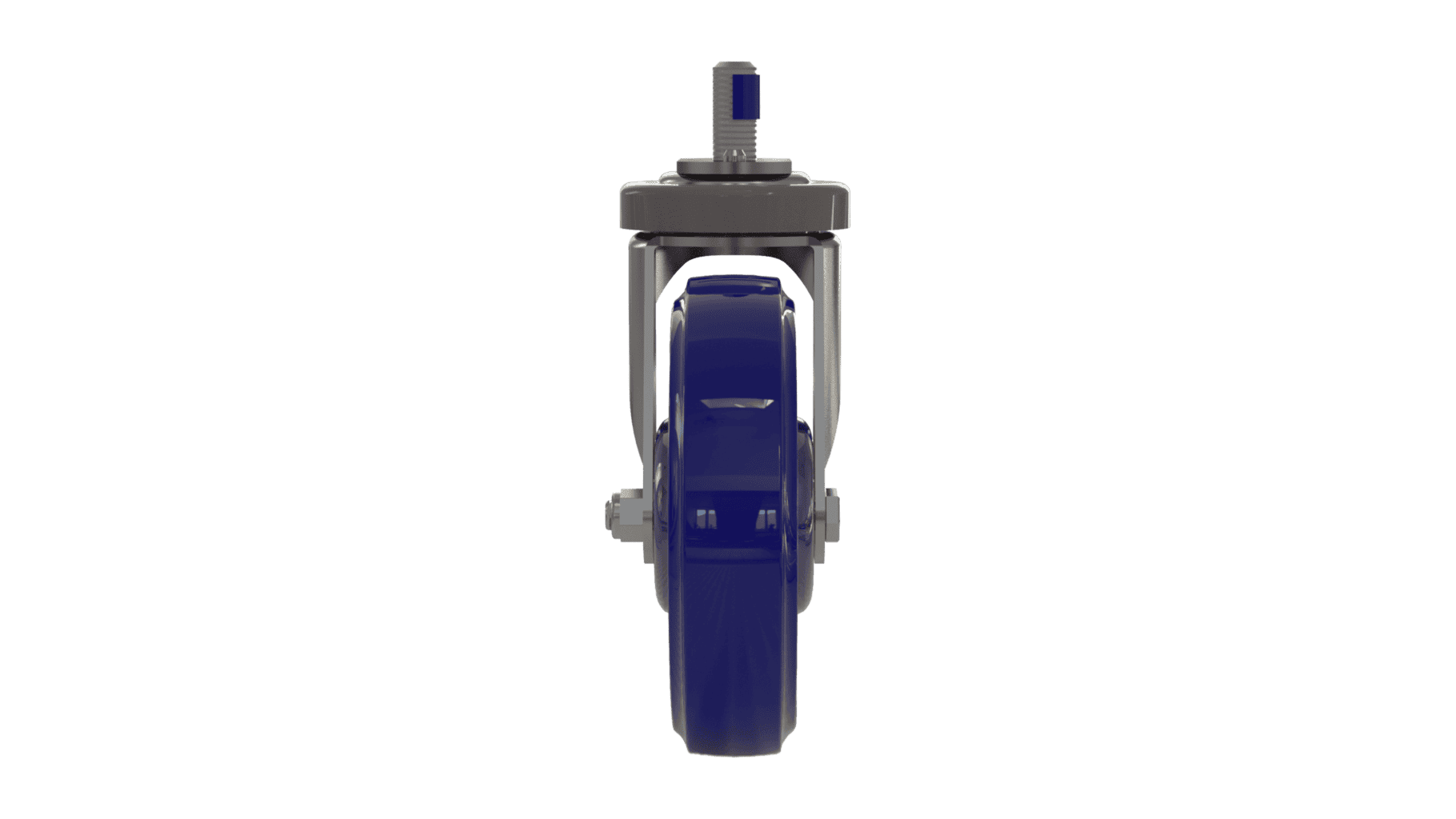

A 5″ shopping cart rigid caster pairing a crown tread TPU wheel with a premium zinc non heat treated yoke on a M12 x 40mm open hole with bolt. It carries 250 lb, stands 6-3/16″ tall, and rolls on a 5/16″ steel dual precision bearing, operating from -20°F to 140°F.
| Product Series | |
|---|---|
| Series Type | Shopping Cart |
| Caster Type | |
| Wheel Part No | WC2054LD |
| Wheel Diameter | |
| Wheel Tread Width | |
| Hub Width | |
| Wheel Profile | |
| Wheel Tread Material | TPU |
| Wheel Core Material | Polypropylene |
| Wheel Durometer | |
| Wheel Color | |
| Bearing Type | |
| Bearing Material | |
| Bearing Size | |
| Axle Size | |
| Load Capacity | |
| Operating Temp | |
| Overall Height | |
| Caster Finish | |
| Threadguard | |
| Attachment Method | |
| Mount Size | M12 x 40mm |
| Warranty Duration | |
| Attachment Detail | Round |
Where it fits. Thermoplastic polyurethane is the general-purpose upgrade tread. It is non-marking, resists oils and most mild chemicals, and carries more load than rubber at the same diameter without the noise of a hard tread. TPU holds its shape under sustained static load, so carts parked loaded overnight are less prone to flat spots. This rigid model tracks straight and is normally specified two per cart with two swivel casters at the opposite end.
Construction. The yoke is formed from premium zinc-plated steel for corrosion resistance. It uses an open hole with bolt attachment. Thread guards are fitted to keep string, film, and debris out of the axle. A 5/16″ steel dual precision bearing rides on a 5/16″ axle for smooth, low-effort rolling.
Load and duty. The 250 lb rating is per caster. Standard practice is to size a four-caster set assuming three casters carry the load, so this model supports roughly a 750 lb cart with margin for shock loading and uneven floors. Continuous operating range is -20°F to 140°F.
About Series 30. Series 30 is built for retail, with a focus on shopping cart equipment. P&H has specialized in shopping cart wheels and casters since the 1980s, and our shopping cart casters have become a standard across much of the US retail market. The series also includes travelator and moving walkway casters for carts found primarily outside the US.
