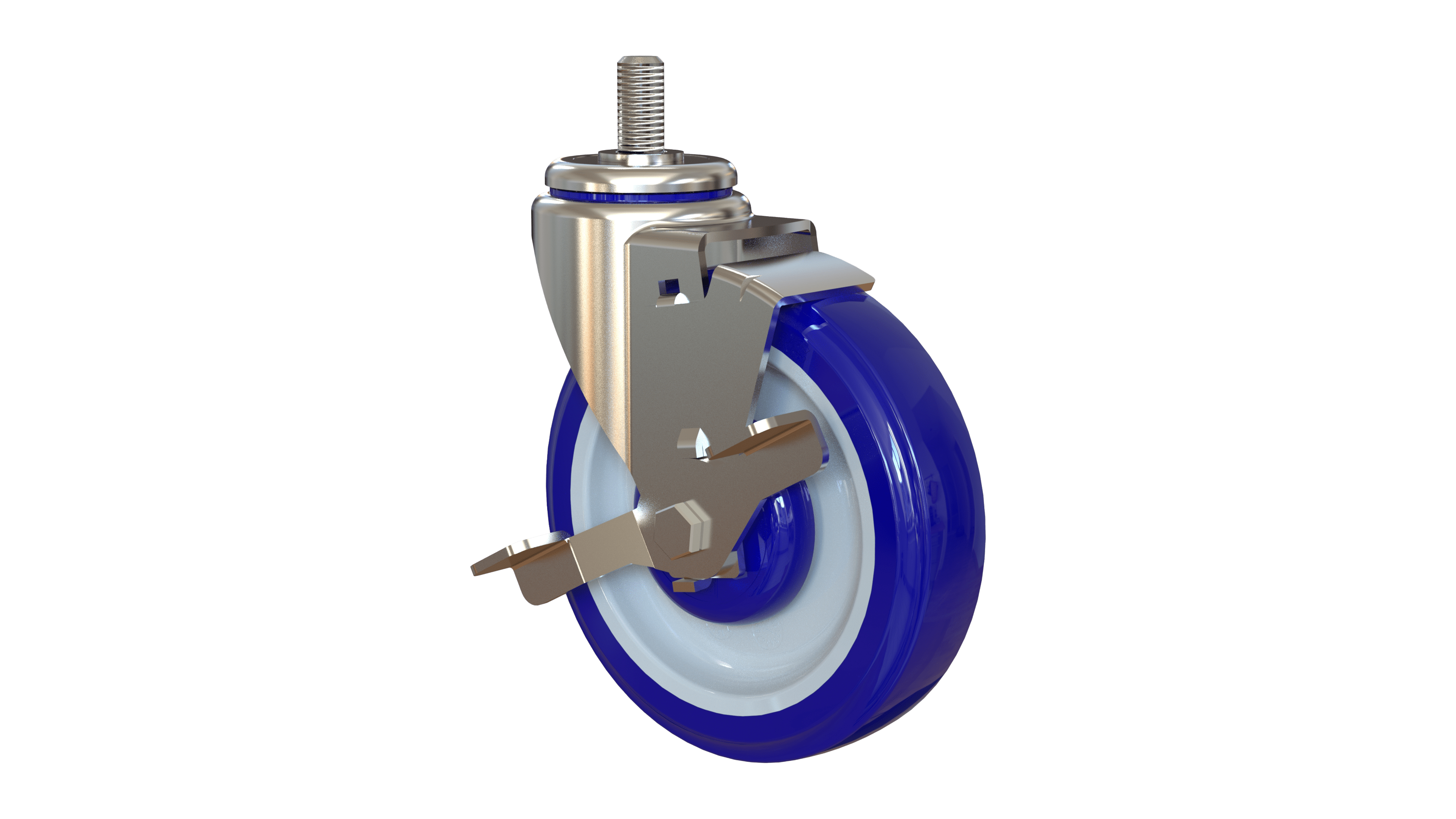

Front view of Z20A054CLDEB caster with side brake and blue polyurethane wheel
Z20A054CLDEB - Image 2
Front view of Z20A054CLDEB caster with side brake and blue polyurethane wheel

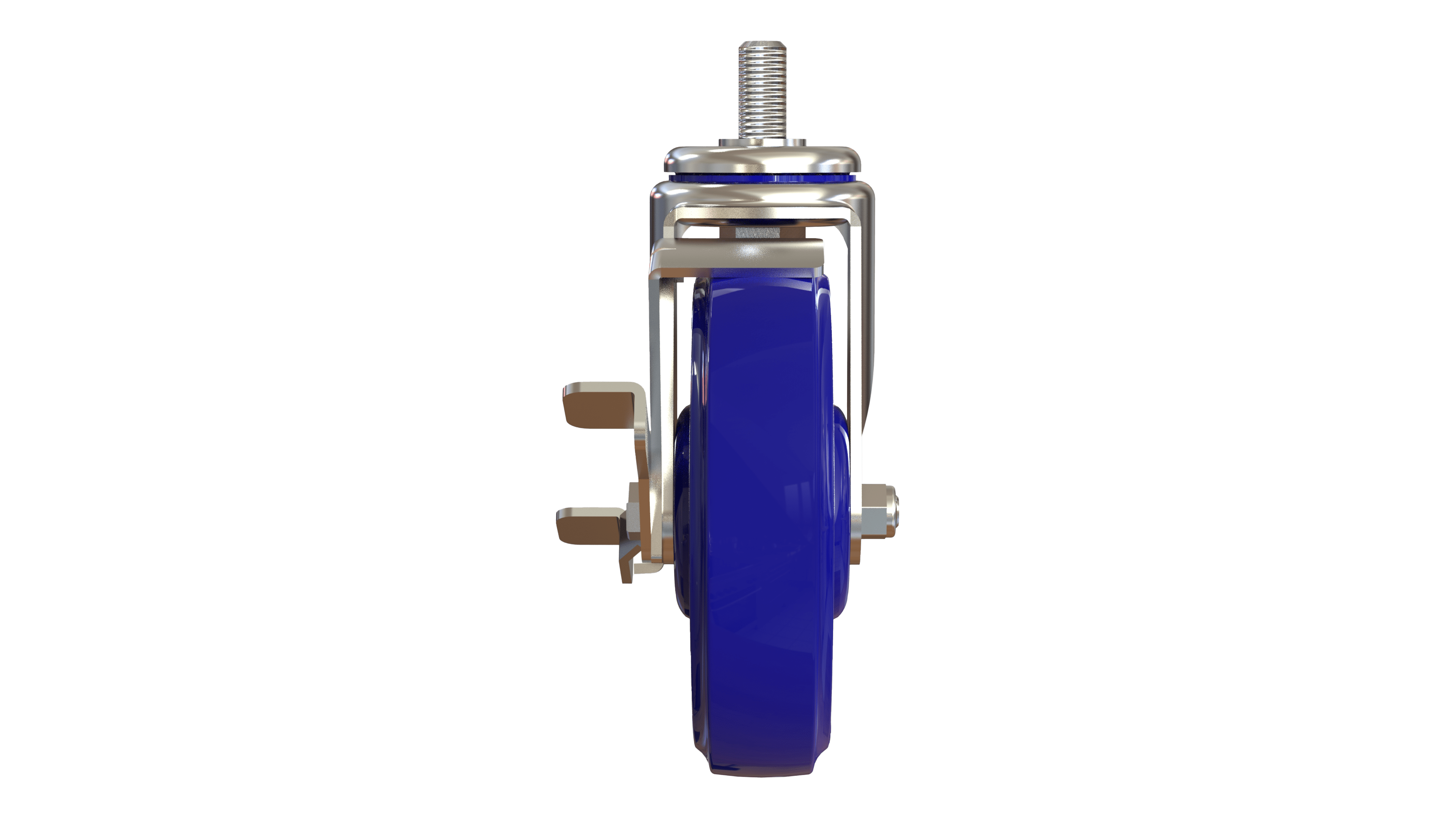

Rear view of Z20A054CLDEB caster showing brake mechanism and tread width

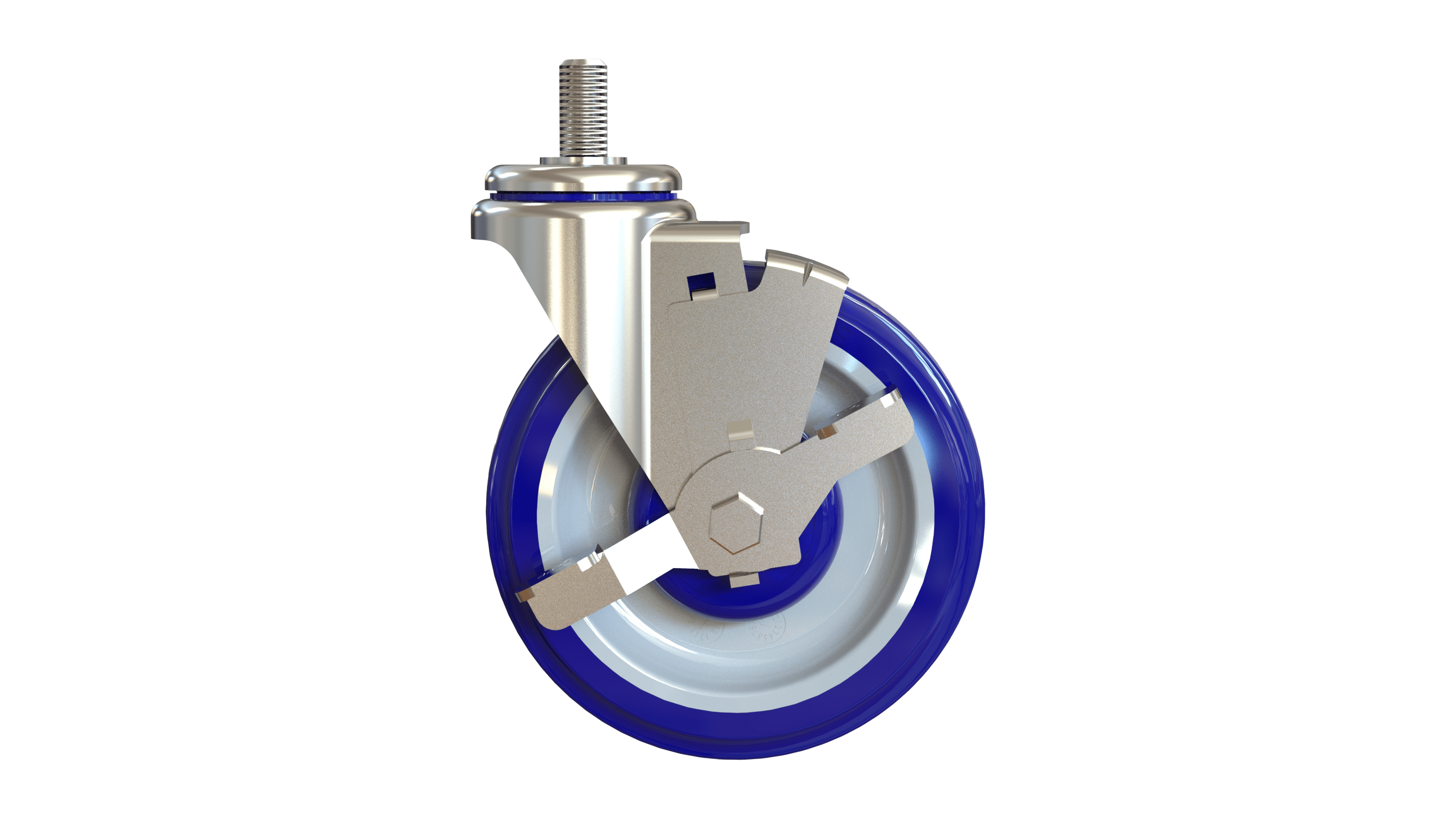

Side view of Z20A054CLDEB caster with side brake and threaded stem

Z20A054CLDEB

5″ blue polyurethane swivel caster with dual precision bearings, zinc-plated steel finish, M12 threaded stem, and side brake. Built for material handling and industrial carts.

  • Caster Type:Swivel
  • Tread Width:32mm
  • Wheel Diameter:5"
  • Wheel Type:Polyurethane
  • Capacity:150 LBS
  • Finish:Zinc Plated Steel with Lacquer Dip
Category: Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,
Add to Quote
Compare

Additional information

Caster Type

Wheel Part No

Wheel Material

Attachment Method

Caster Finish

Product Series

Series Types

Industry

, , ,

Application

, , , , ,

Threadguard

Open Hole With Bolt Size

Overall Height

Weight

Wheel Diameter

Wheel Tread Width

Wheel Color

Axle Size

Bearing Type

Bearing Material

Wheel Profile

Hub Width

Wheel Durometer

Load Capacity

Operating Temp

Bearing Size

Warranty Duration

  • Applications:

    • Food Equipment

    • Material Handling

    • Backroom Carts

    • Institutional Equipment

    • Distribution/Logistics

    • Industrial Manufacturing

    • Food & Beverage Processing

    Industries:

    • Food Service

    • Distribution/Logistics

    • Institutional

    • Hospitality

    • Retail

    • Industrial Facilities

The Z20A054CLDEB is a premium swivel caster designed for reliability in industrial, commercial, and food service environments. Engineered with a dual precision bearing and a non-marking blue polyurethane tread, this caster ensures ultra-smooth rolling under load while minimizing floor damage. Its zinc-plated steel with lacquer dip finish offers superior corrosion resistance, making it ideal for applications requiring durability and hygiene. Equipped with a side brake and threadguard, this 5″ caster meets the demands of material handling, carts, and transport equipment in temperature-sensitive settings ranging from -20°F to 140°F.

  • Brake Type: Side Brake

  • Attachment Type: Threaded Stem (M12 x 1.75)

  • Tread Material Options: Polyurethane

  • Bearing Options: Dual Precision Bearings

  • Finish Options:

    • Z: Zinc Plated Steel with Lacquer Dip

    • P: Plastic

    • Q: Supreme Zinc Plated, Non Heat Treated

    • S: Supreme Zinc Plated, Heat Treated

    • T: Stainless Steel

    • X: Premium Zinc Plated, Non Heat Treated

  • Wheel Color Options: L: Blue on Tan

  • Customizable Load Capacities and Stem Sizes Available Upon Request

Add to Quote
Category: Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,
download

See Shipping information for details about shipping.

Questions? Contact Us
