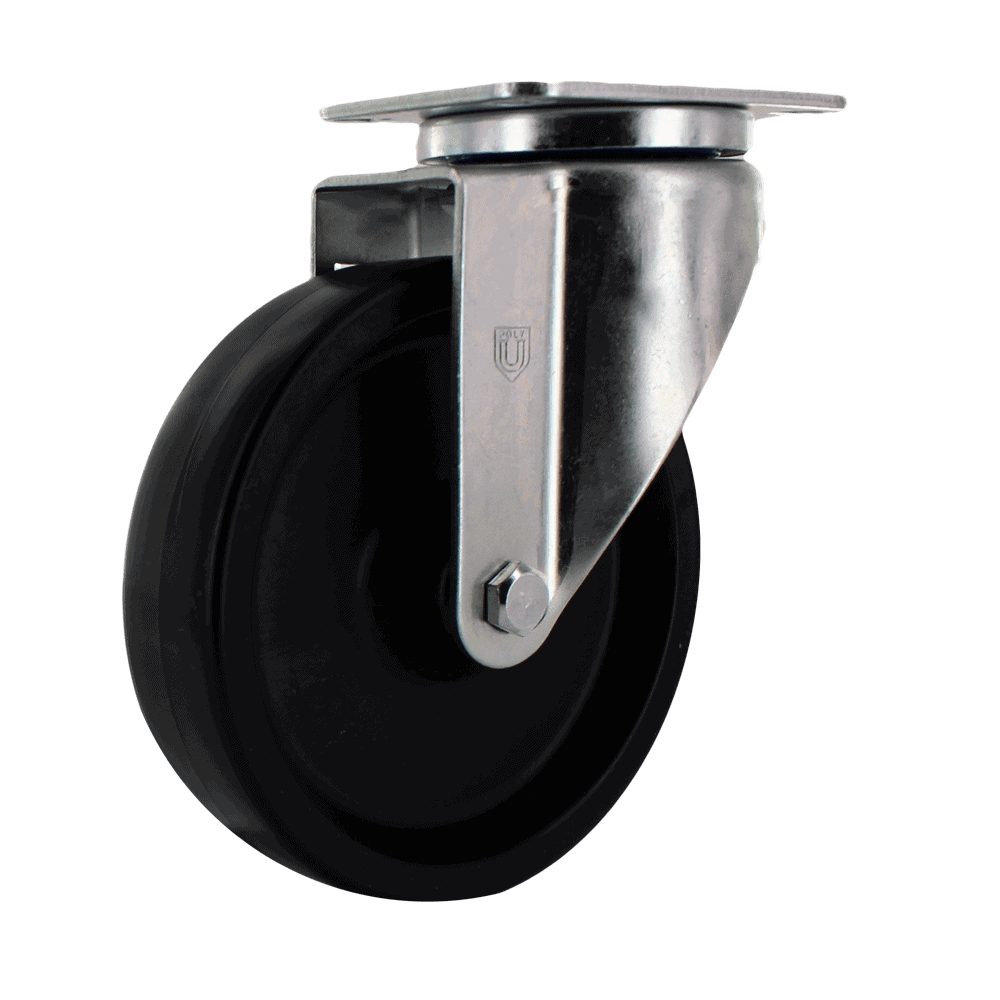

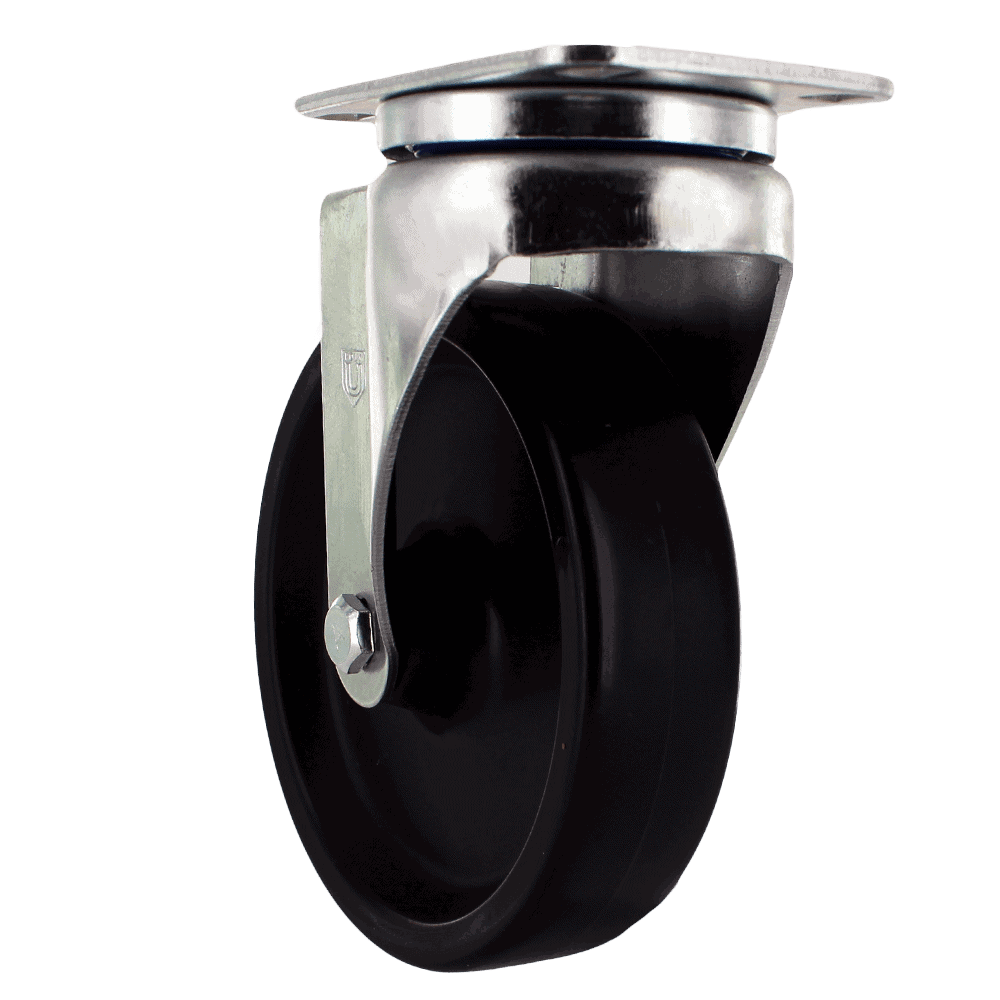

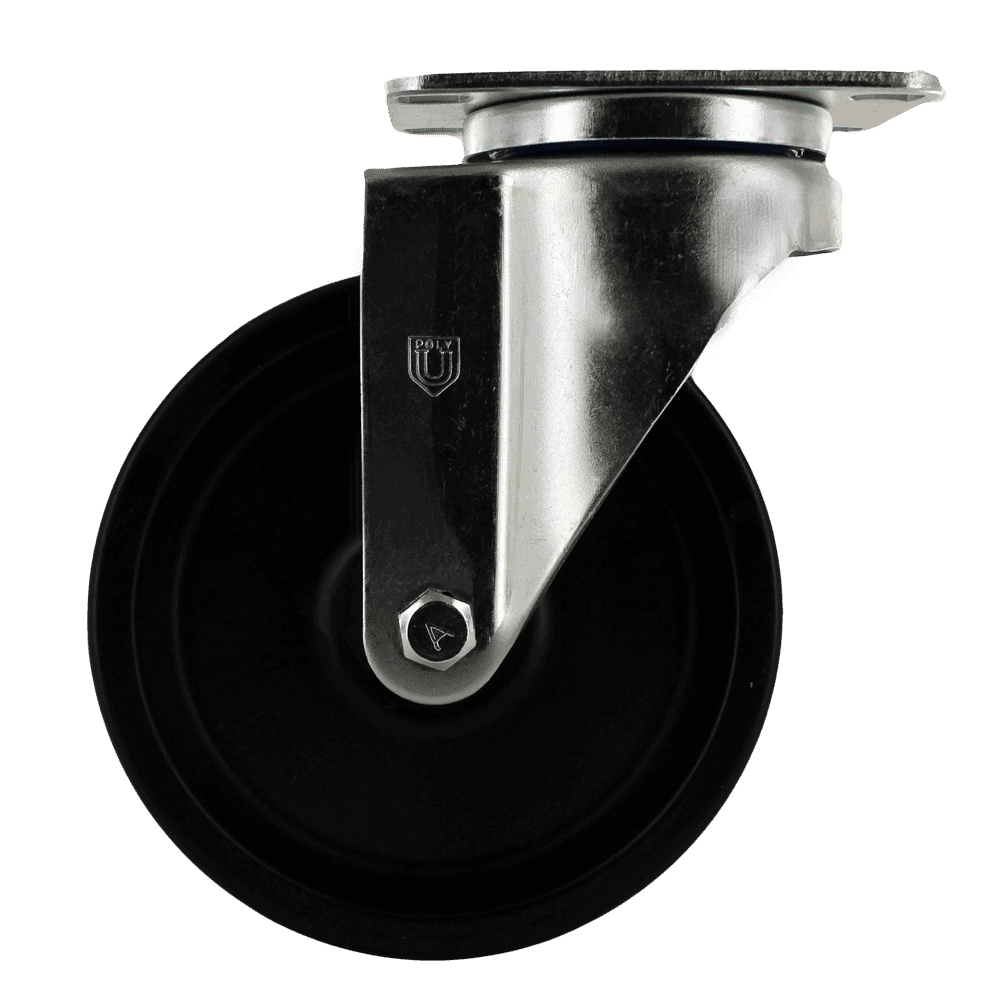

A 5″ industrial swivel caster pairing a crown tread polypropylene wheel with a zinc plated steel yoke on a 2-3/8″ x 3-5/8″ top plate. It carries 200 lb, stands 6-1/4″ tall, has a 4″ swivel radius, and turns on a 5/16″ steel bushing bearing, operating from -30°F to 140°F.
| Product Series | |
|---|---|
| Series Type | Industrial |
| Caster Type | |
| Wheel Part No | WA2054BC |
| Wheel Diameter | |
| Wheel Tread Width | |
| Hub Width | |
| Wheel Profile | |
| Wheel Tread Material | Polypropylene |
| Wheel Core Material | Polypropylene |
| Wheel Durometer | |
| Wheel Color | |
| Bearing Type | |
| Bearing Material | |
| Bearing Size | |
| Axle Size | |
| Load Capacity | |
| Operating Temp | |
| Overall Height | |
| Swivel Radius | |
| Caster Finish | |
| Threadguard | |
| Attachment Method | |
| Mount Size | 2 3/8" x 3 5/8" |
| Warranty Duration | |
| Plate Hole Centers | |
| Weight |
Where it fits. Polypropylene is the economical workhorse tread. It will not rust, corrode, or absorb water, it resists most cleaning chemicals, and its hard surface rolls with very little effort. Hard treads transmit floor irregularity and noise, so specify polypropylene where floors are smooth and quiet operation is not the priority. This swivel model rotates a full 360 degrees and is normally specified two per cart with two rigid casters at the opposite end, or four per cart where the equipment has to move sideways in tight aisles.
Construction. The yoke is formed from zinc-plated steel for corrosion resistance. It mounts on a 2-3/8″ x 3-5/8″ top plate with 2-15/16″ x 1-3/4″ bolt-hole centers. Thread guards are fitted to keep string, film, and debris out of the axle. A 5/16″ steel bushing rides on a 5/16″ axle for smooth, low-effort rolling.
Load and duty. The 200 lb rating is per caster. Standard practice is to size a four-caster set assuming three casters carry the load, so this model supports roughly a 600 lb cart with margin for shock loading and uneven floors. Continuous operating range is -30°F to 140°F.
About Series 20. Series 20 spans our light and medium duty caster range, from 150 lb to 400 lb per caster, in zinc plated steel, stainless steel, and rust-resistant plastic bodies. It is the general purpose line for day-to-day cart, rack, and equipment service. The series also includes our Precision Raceway casters, which use a precision bearing raceway in the swivel to cut rolling effort and noise.
