Z26P374CTKIR

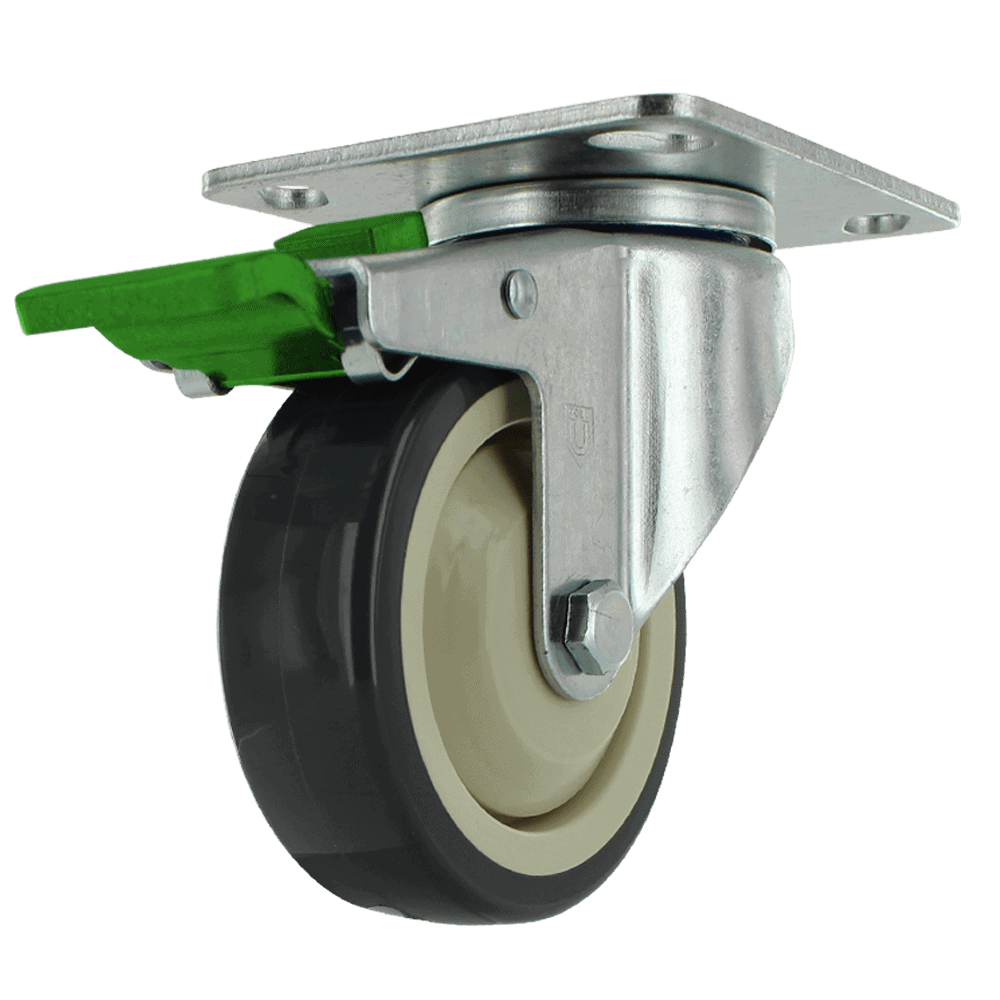

Industrial Swivel Caster with Zinc Plated Steel with Lacquer Dip Yoke, 4″ X 4 1/2″ Plate Mount, 3 1/2″ X 1 1/4″ TPU A98 Crown Tread Gray on Tan Wheel, 3/8″ Dual Precision Bearings with 3/8″ Axle and Nylon Lock Nut. With Directional Lock Brake.

  • Caster Type:Swivel
  • Tread Width:1 1/4"
  • Wheel Diameter:3 1/2"
  • Wheel Type:Polyurethane
  • Capacity:250 LBS
  • Finish:Zinc Plated Steel with Lacquer Dip
Category:
Compare

See Shipping information for details about shipping.

Questions? Contact Us

Additional information

Caster Type

Wheel Material

Attachment Method

Caster Finish

Product Series

Series Types

Industry

, , , ,

Application

, , , , ,

Threadguard

Brake

Directional Brake

Imperial Plate Size

Overall Height

Plate Hole Centers

Swivel Radius

Weight

Wheel Diameter

Wheel Tread Width

Wheel Color

Axle Size

Bearing Type

Bearing Material

Wheel Profile

Hub Width

Wheel Durometer

Load Capacity

Operating Temp

Bearing Size

Warranty Duration

Wheel Part No

  • Food service equipment
  • Display racks
  • Material handling carts
  • Retail racks and carts
  • Gravity conveyors
  • Hospitality carts and racks
  • Institutional equipment
  • Sports equipment

Our new Series 26 Medium duty Industrial line of products includes both swivel and rigid plate casters. This series is designed with a higher mount height than our other 20 Series casters, which makes it an easy choice for replacement casters as it fits a wide range of equipment.

With load capacities ranging from 180 up to 425 pounds, this line of products is suitable for many different types of applications and operating conditions. Wheels are available in smooth, soft riding polyurethane, or thermoplastic rubber (TPR), an excellent choice for wet or wash down applications like food service environments.

These casters also offer a choice or 3 plate sizes and four brake options.

The Series 26 products include a long list of premium features such as:

  • Sealed upper raceways
  • Heat treated yokes
  • Premium 72 hour zinc plating
  • Patented Quad X precision bearings
  • Side, Top, Directional and Total Lock brakes

Polyurethane or TPR wheels available in 6 sizes:

  • 3″
  • 3 1/2″
  • 4″
  • 5″
  • 6″
  • 8″

Mounting Plates available in 3 sizes:

  • 2 3/8″ x 3 5/8″
  • 3 1/8″ x 4 1/8″
  • 4″ x 4 1/2″

Brakes available in 4 types:

  • Side Brake – Restricts forward motion of the wheel activated on the side of the wheel
  • Top Brake – Restricts forward motion of the wheel when activated on the top of the wheel
  • Directional Lock – Restricts the swivel motion of the caster at 0 and 180 degrees when activated
  • Total Lock – Restricts all motion of the wheel and all swivel of the caster
