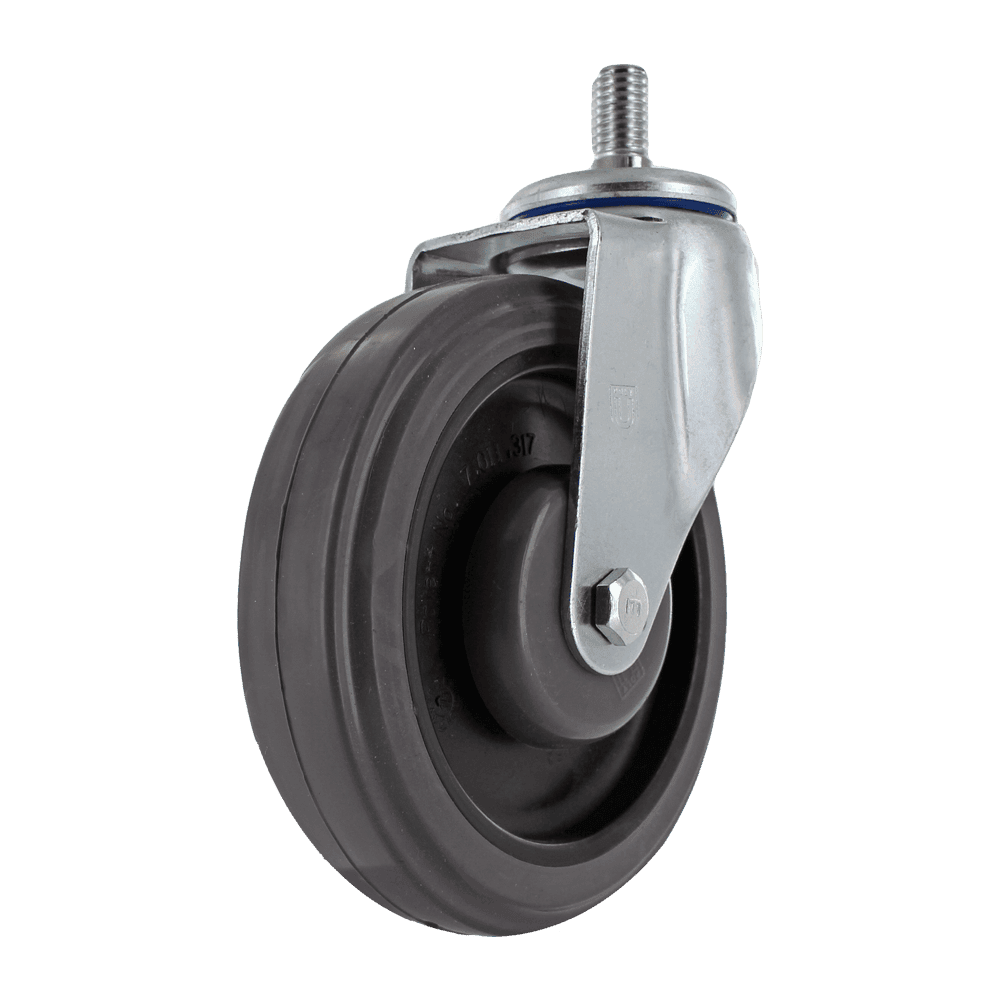

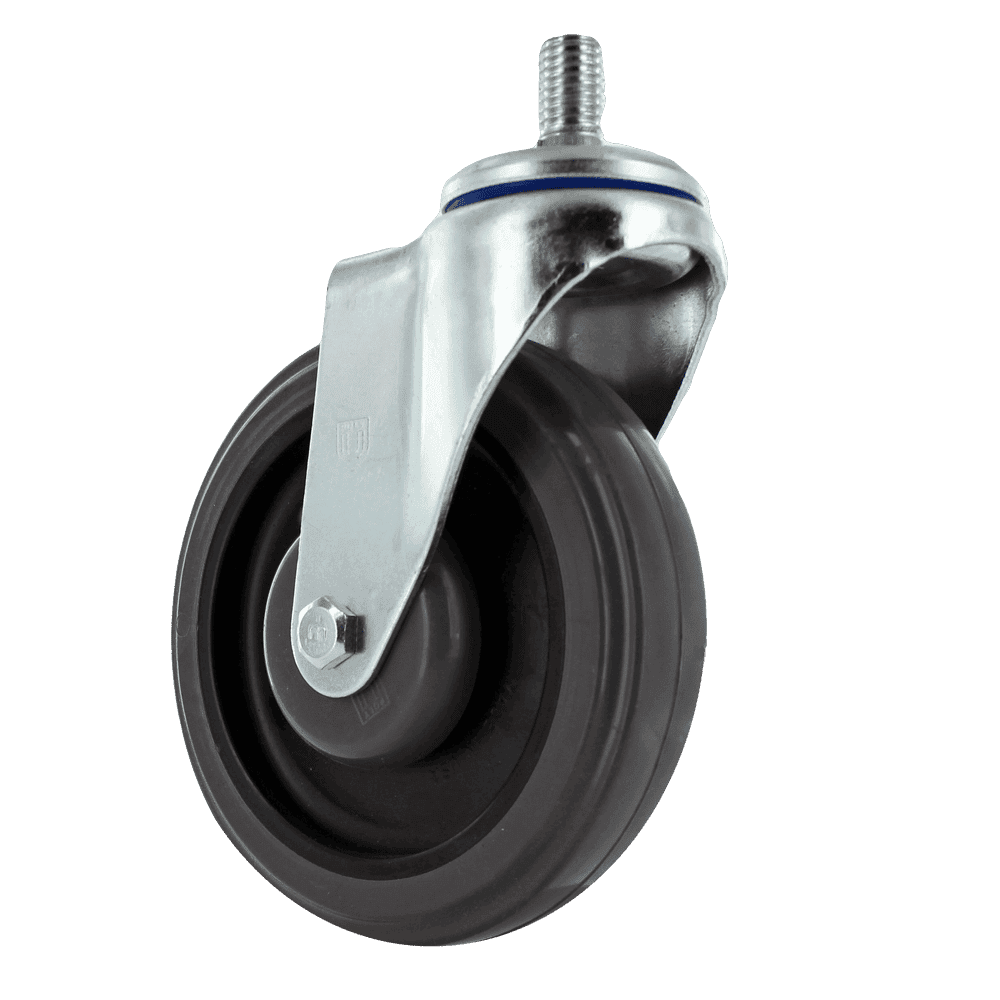

Where it fits. Thermoplastic rubber is the quiet, floor-friendly choice. The soft non-marking tread absorbs shock and rolls without the clatter a hard wheel produces on tile and sealed concrete, which makes it a common specification for patient areas, retail floors, and anywhere noise carries. Softer treads trade some rolling efficiency for that quiet. This swivel model rotates a full 360 degrees and is normally specified two per cart with two rigid casters at the opposite end, or four per cart where the equipment has to move sideways in tight aisles.
Construction. The yoke is formed from zinc-plated steel for corrosion resistance. It uses a shopping cart stem attachment. Thread guards are fitted to keep string, film, and debris out of the axle. A 5/16″ steel dual precision bearing rides on a 5/16″ axle for smooth, low-effort rolling.
Load and duty. The 250 lb rating is per caster. Standard practice is to size a four-caster set assuming three casters carry the load, so this model supports roughly a 750 lb cart with margin for shock loading and uneven floors. Continuous operating range is -30°F to 140°F.
About Series 30. Series 30 is built for retail, with a focus on shopping cart equipment. P&H has specialized in shopping cart wheels and casters since the 1980s, and our shopping cart casters have become a standard across much of the US retail market. The series also includes travelator and moving walkway casters for carts found primarily outside the US.
Standard Features:
Also available:
- Replacement wheel — WN2054ED
- With open hole (1/2″) — Z30O254NEDE
Custom options:
- Custom tread and body colors
- Conductive wheels
- Stainless steel for washdown service
- Private label or custom branding
Please consult factory for all customizations.
