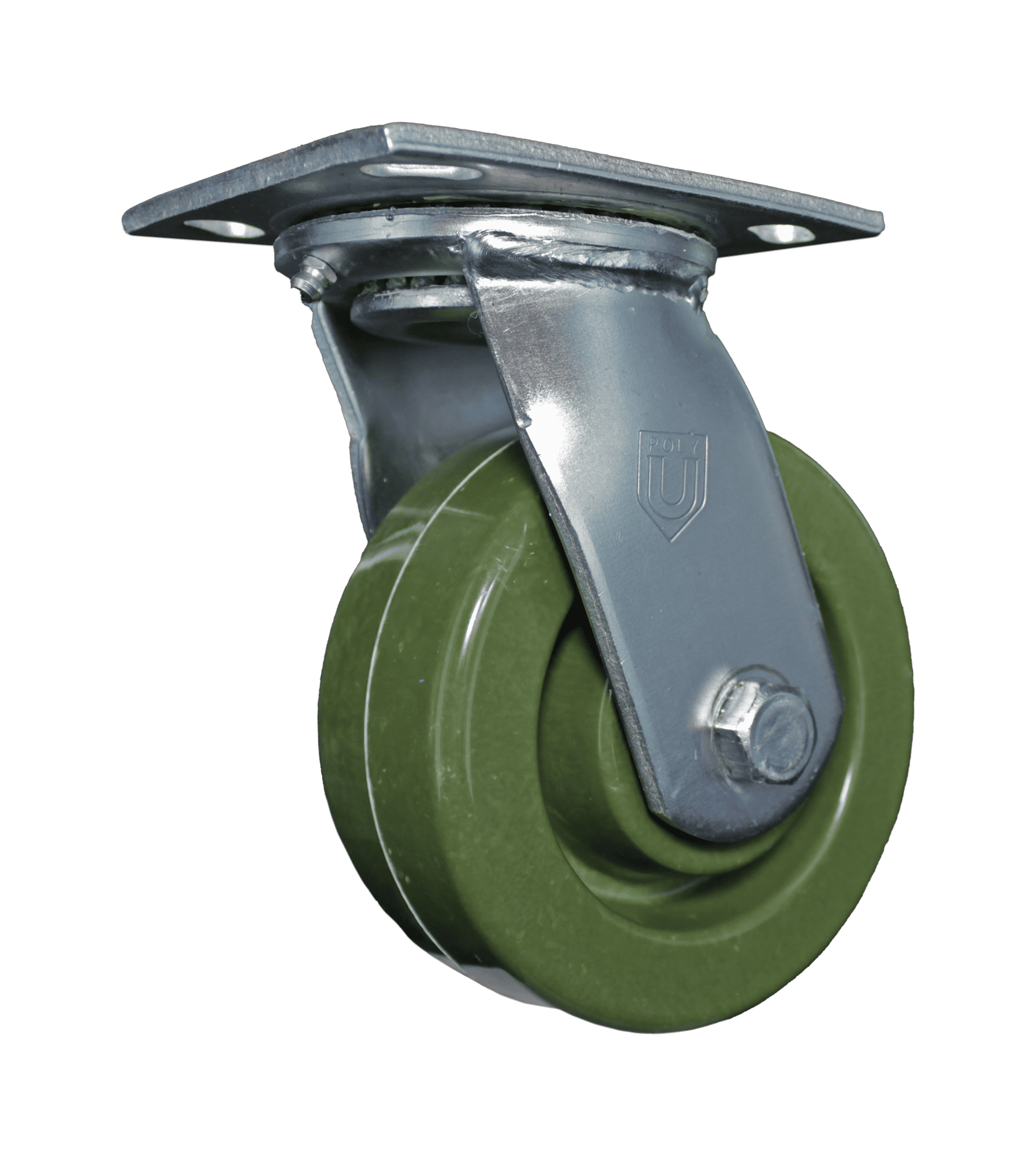

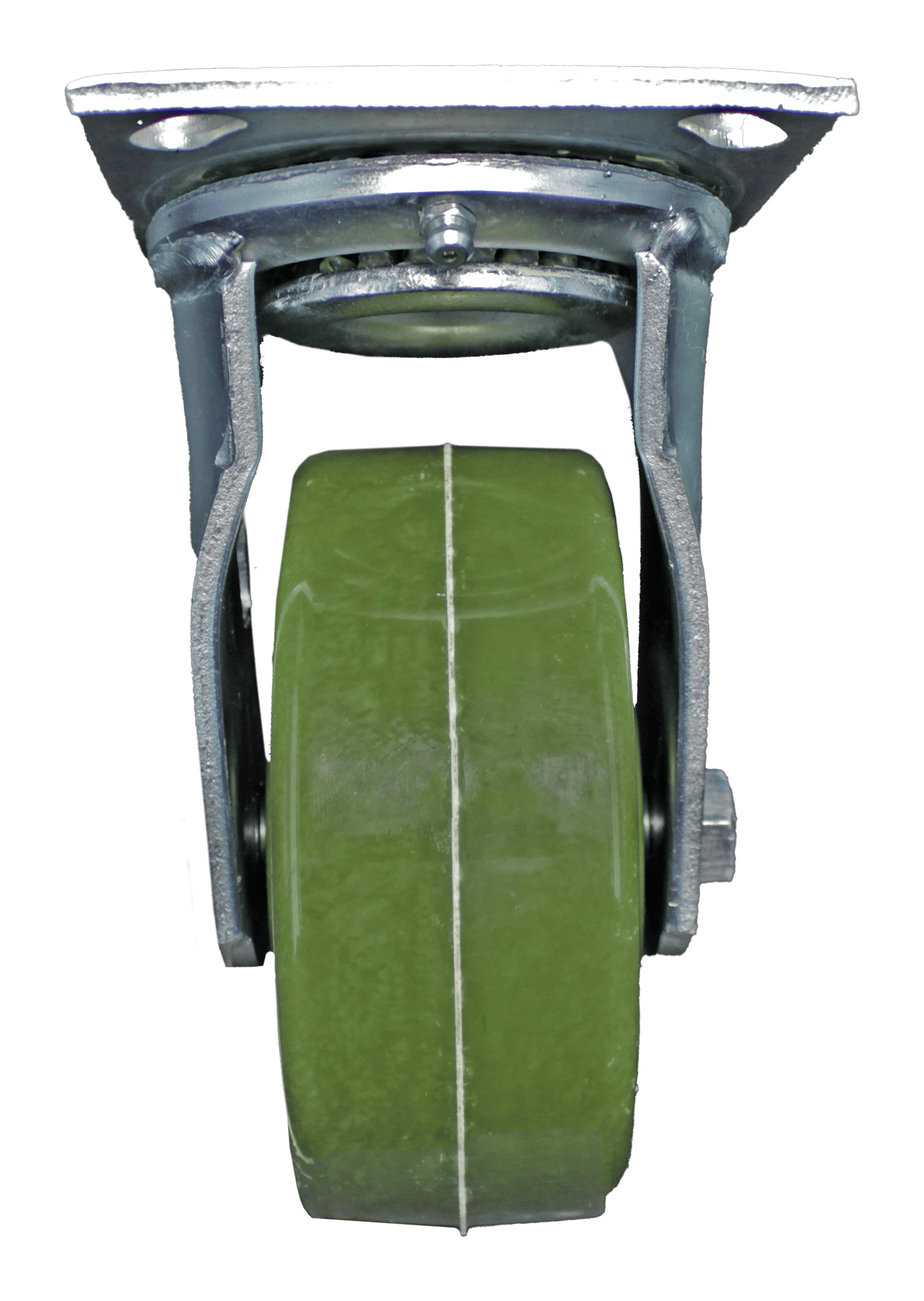

Z40P3521NPKF green high-temperature wheel caster with zinc-plated yoke and 4x4.5 inch plate mount.
Z40P3521NPKF green high-temperature wheel caster with zinc-plated yoke and 4x4.5 inch plate mount.
Z40P3521NPKF green high-temperature wheel caster with zinc-plated yoke and 4x4.5 inch plate mount.
Z40P3521NPKF green high-temperature wheel caster with zinc-plated yoke and 4x4.5 inch plate mount.

Z40P3521NPKF

Experience unmatched performance in high-temperature environments with the Z40P3421NPKF Caster. Designed for durability and smooth operation, it’s the perfect solution for heavy-duty industrial applications.

  • Caster Type:Swivel
  • Tread Width:2"
  • Wheel Diameter:5"
  • Wheel Type:Epoxy Resin
  • Capacity:300 LBS
  • Finish:Zinc Plated Steel with Lacquer Dip
Categories: , Tags: , , , , , , , , , , , , , , , , , ,
Add to Quote
Compare
download

See Shipping information for details about shipping.

Questions? Contact Us

Additional information

Caster Type

Wheel Part No

Wheel Material

Attachment Method

Caster Finish

Product Series

Series Types

Industry

, , ,

Application

, , , , , ,

Imperial Plate Size

Overall Height

Plate Hole Centers

Weight

Wheel Diameter

Wheel Tread Width

Wheel Color

Axle Size

Bearing Type

Bearing Material

Wheel Profile

Hub Width

Load Capacity

Operating Temp

Bearing Size

Warranty Duration

  • Food Processing Equipment
  • Industrial Ovens and Autoclaves
  • Material Handling in High-Temperature Areas
  • Medical and Laboratory Equipment
  • Industrial Bakeries
  • Heat Treatment Facilities
  • Material handling
  • Distribution
  • Back room
  • Industrial
  • Platform & stock trucks
  • Dollies
  • Trash, mail & cargo containers
  • Freight terminal trucks
  • Automotive Equipment
  • Toolboxes
  • Commercial kitchen equipment
  • Janitorial Equipment

  • Product Information for Z40P3521NPKF

    Product Name: High-Temperature Medium/Heavy Duty Caster
    Model: Z40P3521NPKF
    Yoke Finish: Zinc Plated Steel with Lacquer Dip for High Durability
    Mounting Type: 4″ x 4 1/2″ Top Plate for Robust Attachment
    Wheel Size: 5″ Diameter x 2″ Width for Optimal Support
    Wheel Material: High Temp Epoxy Resin, Ideal for Intense Heat Environments
    Wheel Color: Industrial Green, for Easy Identification
    Bearings: Quad X, 1/2″ for Superior Load Distribution and Smooth Movement
    Axle: 1/2″ with Matching Nut, Designed for Stability
    Temperature Range: -20°F to 475°F, Suited for High-Temperature Applications
    Load Capacity: Up to 300 lbs, Catering to Medium and Heavy-Duty Needs
    Durometer: D95, Optimized for High-Temperature Resistance
    Warranty: One Year Warranty, Ensuring Quality and Performance
    Series: Part of a Series Tailored for Specialized Industrial Applications

  • Wheel Options: Available in various materials for different industrial needs.
  • Brake Options: Customizable brake types upon request.
  • Custom Attachments: Tailored attachment methods to fit specific equipment.
  • Color Variants: Wheel colors can be customized based on volume orders.
