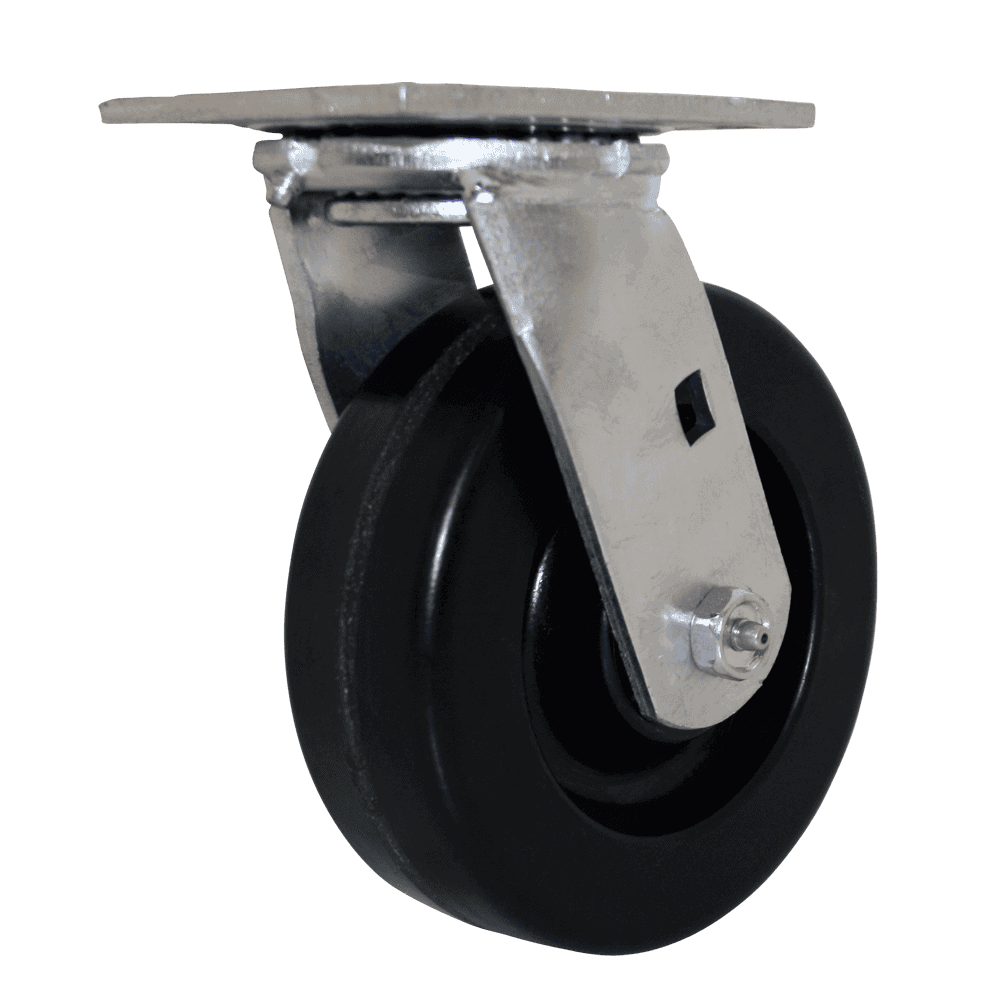

A 6″ medium/heavy duty swivel caster pairing a flat tread phenolic wheel with a zinc plated steel yoke on a 4″ x 4-1/2″ top plate. It carries 1,200 lb, has a 4″ swivel radius, and turns on a 1/2″ steel roller bearing, operating from -20°F to 190°F.
| Product Series | |
|---|---|
| Series Type | Medium/Heavy Duty |
| Caster Type | |
| Wheel Part No | WL4062BN |
| Wheel Diameter | |
| Wheel Tread Width | |
| Hub Width | |
| Wheel Profile | |
| Wheel Tread Material | Phenolic |
| Wheel Core Material | Phenolic |
| Wheel Durometer | |
| Wheel Color | |
| Bearing Type | |
| Bearing Material | |
| Bearing Size | |
| Axle Size | |
| Load Capacity | |
| Operating Temp | |
| Swivel Radius | |
| Caster Finish | |
| Threadguard | |
| Attachment Method | |
| Mount Size | 4" x 4 1/2" |
| Warranty Duration | |
| Plate Hole Centers | |
| Weight | |
| Axle Type | |
| Grease Fittings |
Where it fits. Phenolic is the workhorse tread for hot, dry environments. The wheel is molded from resin-impregnated fabric that resists most chemicals, water, and steam without softening, which is why it moves between a cooler and a hot oven without flat-spotting. Hard treads transmit floor irregularity, so specify phenolic where floors are smooth and sealed. This swivel model rotates a full 360 degrees and is normally specified two per cart with two rigid casters at the opposite end, or four per cart where the equipment has to move sideways in tight aisles.
Construction. The yoke is formed from zinc-plated steel for corrosion resistance. It mounts on a 4″ x 4-1/2″ top plate with 3-1/8″ x 2-1/16″ bolt-hole centers. Thread guards are fitted to keep string, film, and debris out of the axle. A 1/2″ steel roller bearing rides on a 1/2″ axle for smooth, low-effort rolling.
Load and duty. The 1,200 lb rating is per caster. Standard practice is to size a four-caster set assuming three casters carry the load, so this model supports roughly a 3,600 lb cart with margin for shock loading and uneven floors. Continuous operating range is -20°F to 190°F.
About Series 40. Our medium and heavy duty line is engineered to make light work of heavy loads, handling up to 1,500 lb per caster with ergonomics and maneuverability in mind so that a loaded cart stays manageable. The line continues to expand as new industries bring us new requirements.
