4″ swivel caster with non-marking gray TPR wheel, Quad X bearing, and zinc-plated steel finish. Designed for smooth, quiet operation and floor protection in institutional and industrial settings.
| Product Series | |
|---|---|
| Series Types | |
| Caster Type | |
| Wheel Part No | |
| Wheel Diameter | |
| Wheel Tread Width | |
| Wheel Profile | |
| Wheel Durometer | |
| Wheel Material | |
| Bearing Type | |
| Bearing Material | |
| Bearing Size | |
| Axle Size | |
| Load Capacity | |
| Overall Height | |
| Attachment Method | |
| Imperial Plate Size | |
| Plate Hole Centers | |
| Operating Temp | |
| Warranty Duration | |
| Caster Finish | |
| Wheel Color |
Ideal for the following use cases:
Medical carts and hospital equipment
Institutional and commercial equipment
Logistics and warehousing carts
Manufacturing fixtures
Rolling shelves, workstations, and toolboxes
Cleanrooms and noise-sensitive environments
This caster is best suited for indoor use and flat flooring surfaces where maneuverability, quiet operation, and floor protection are critical.

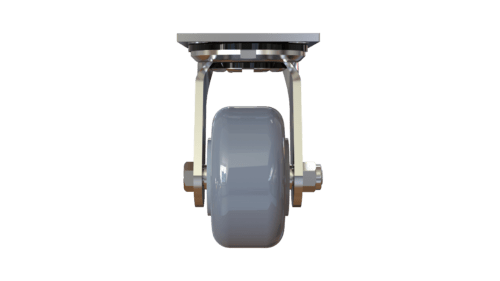

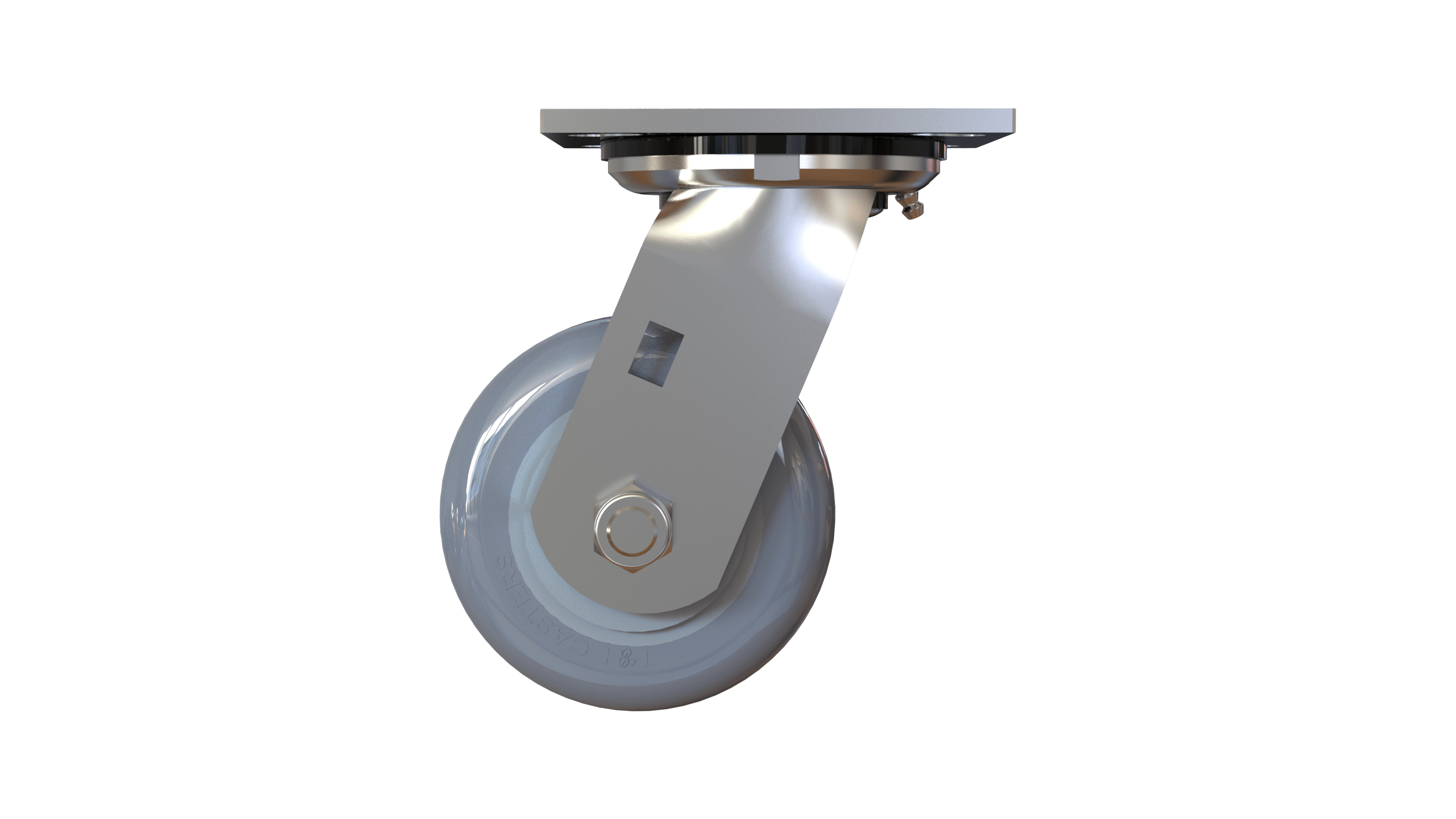

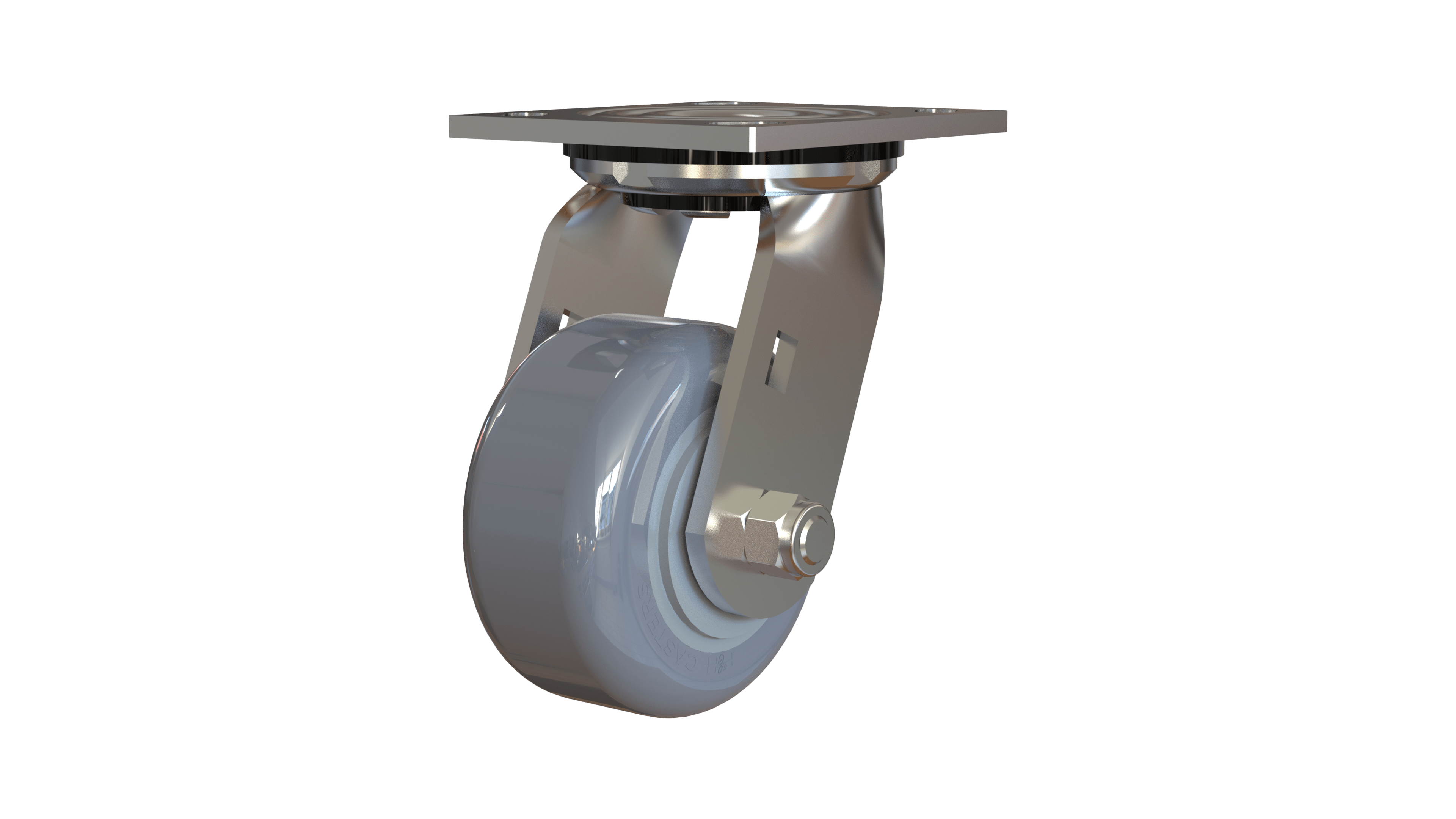

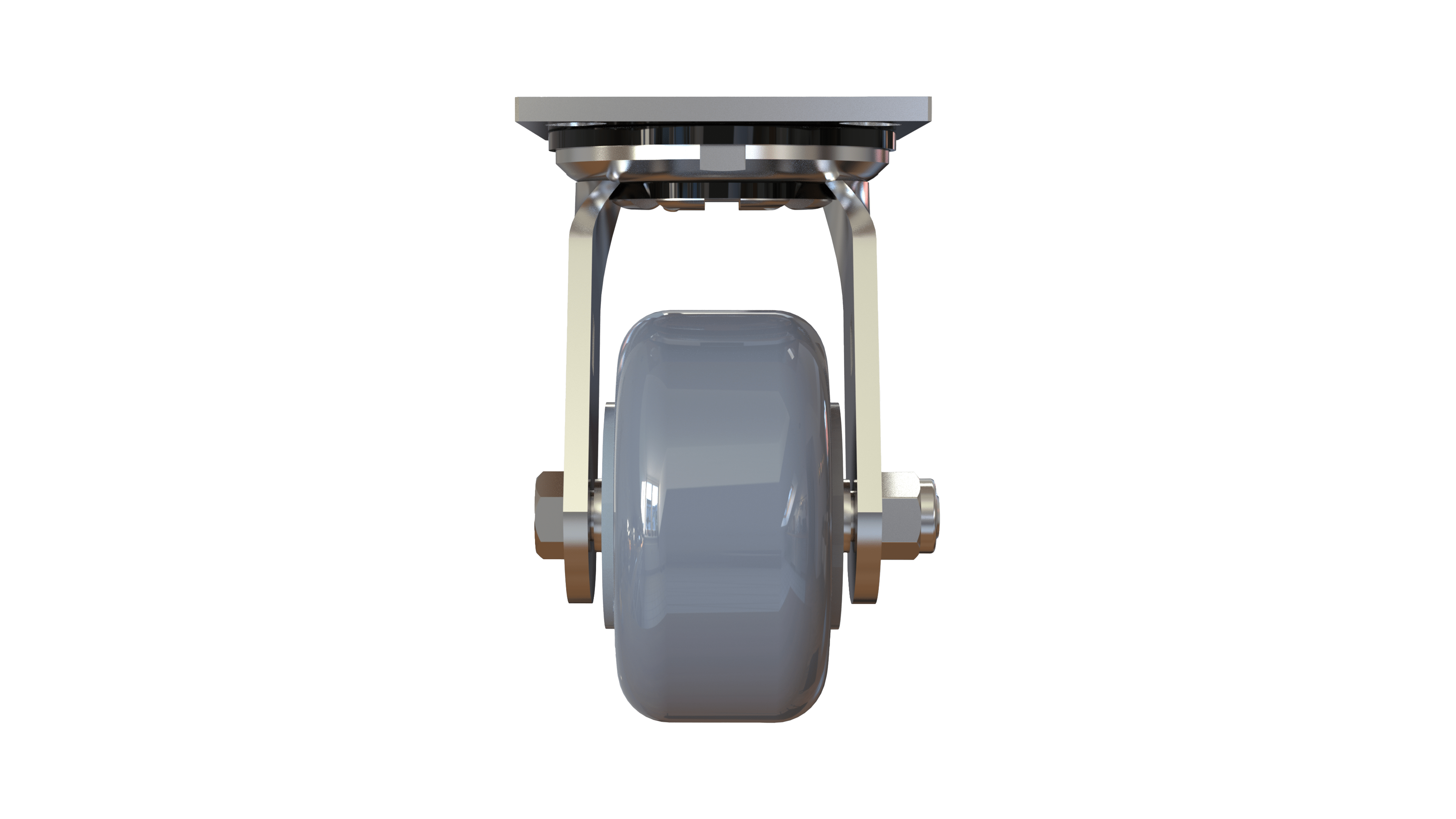

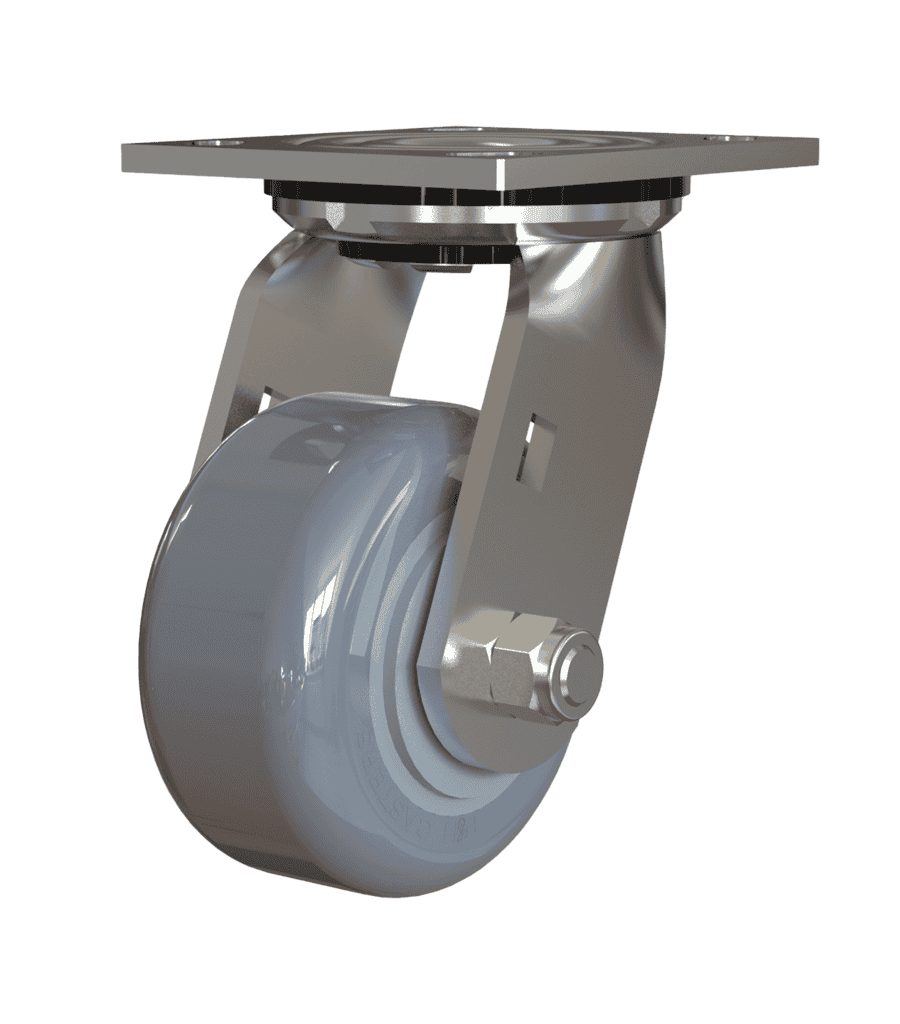

Z40P3X2NGPL Swivel Caster – 4″ Thermoplastic Rubber Wheel, Zinc Finish, Quad X Bearing
Engineered for medium to heavy-duty applications, the Z40P3X2NGPL is a swivel caster featuring a 4″ gray thermoplastic rubber (TPR) wheel mounted on a zinc-plated steel rig with a lacquer dip for added corrosion resistance. This caster includes a Quad X precision bearing for ultra-smooth, quiet operation, making it ideal for environments where silence and protection are key—such as medical, institutional, and logistics facilities.

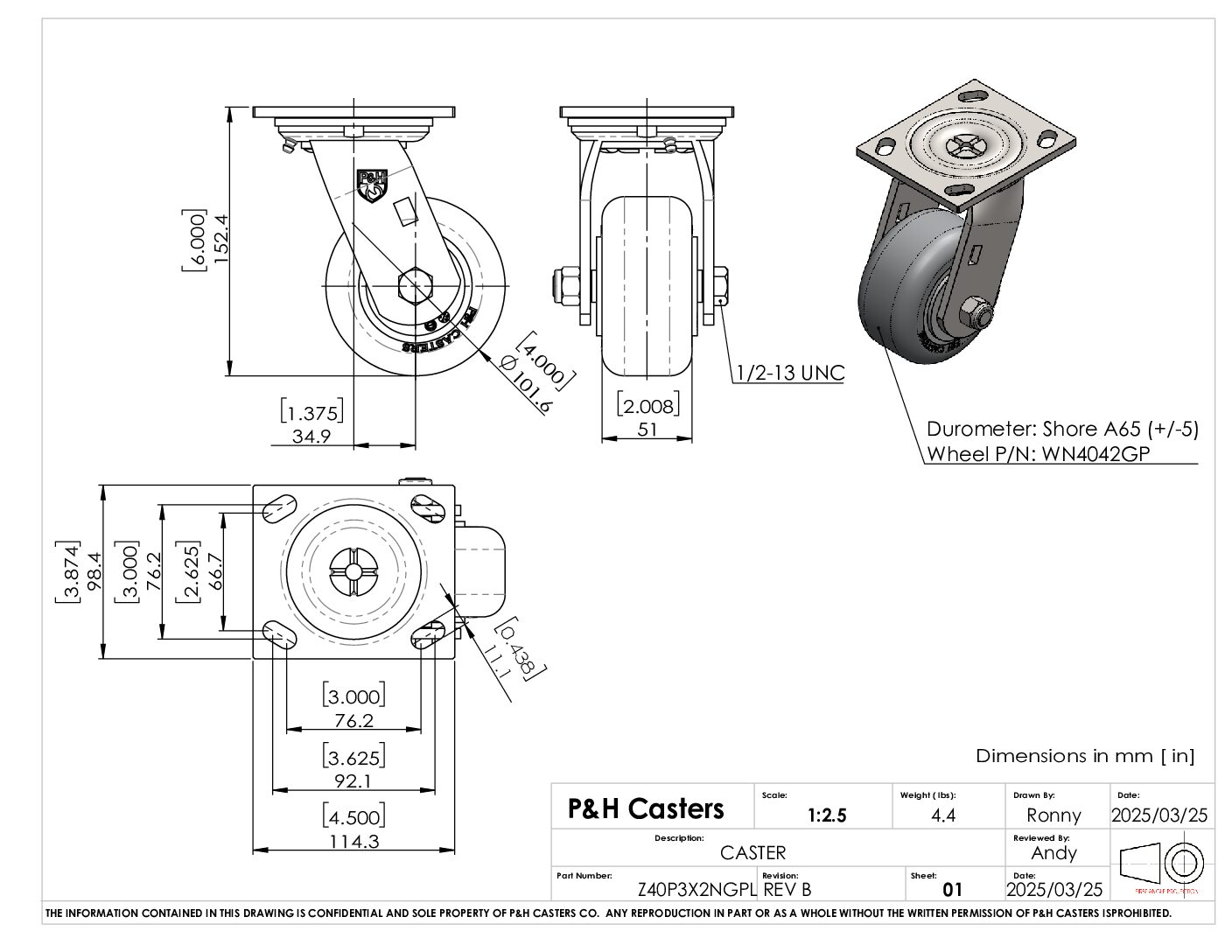

The non-marking TPR tread protects floors while providing excellent traction and shock absorption. The caster includes a standard 4″ x 4.5″ top plate and is fitted with a thread guard for debris protection. With a 400 lb load capacity and crowned tread profile, it offers a perfect balance of performance, maneuverability, and durability.
