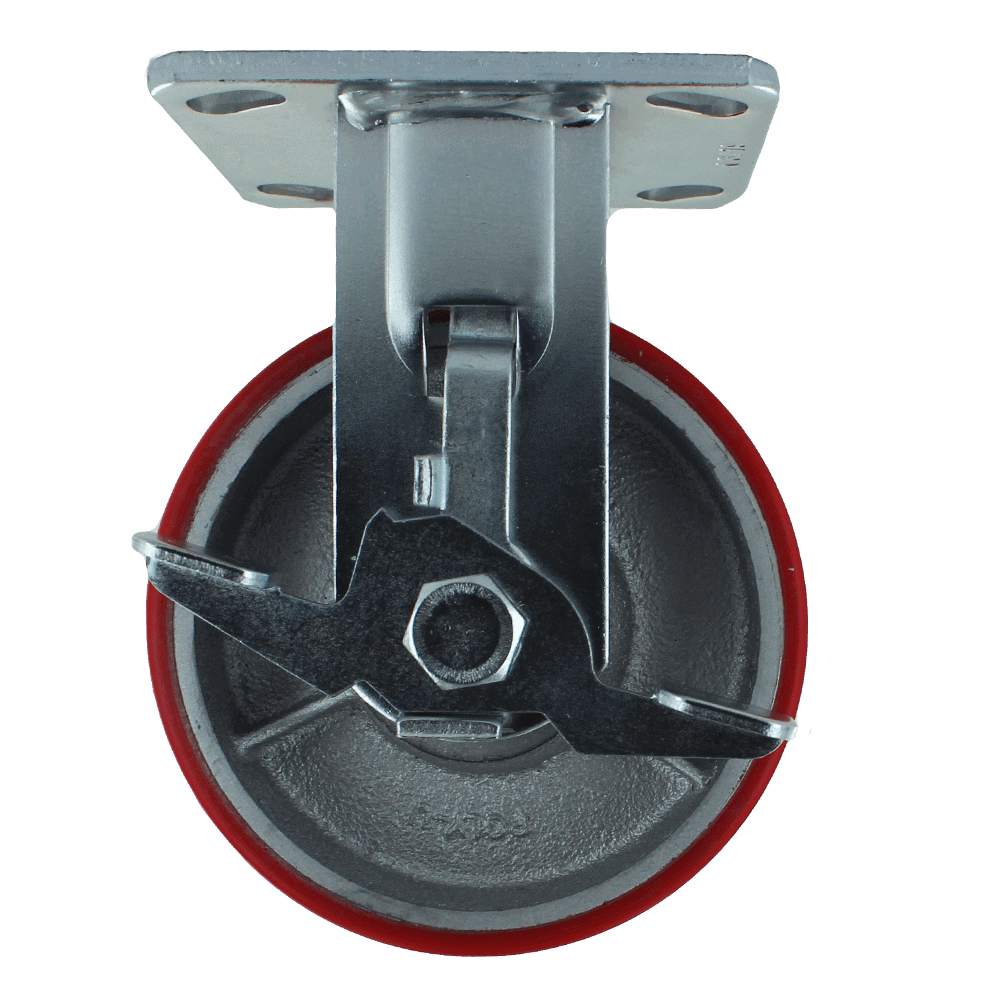

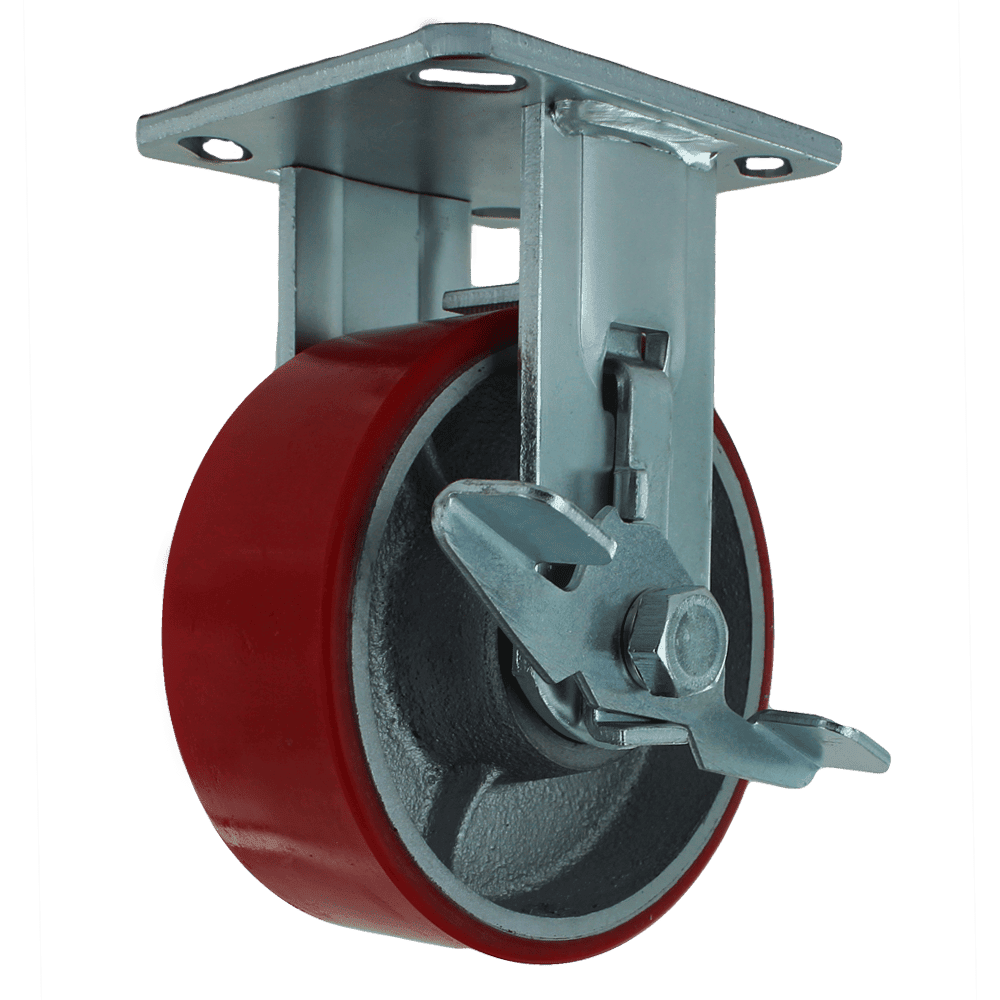

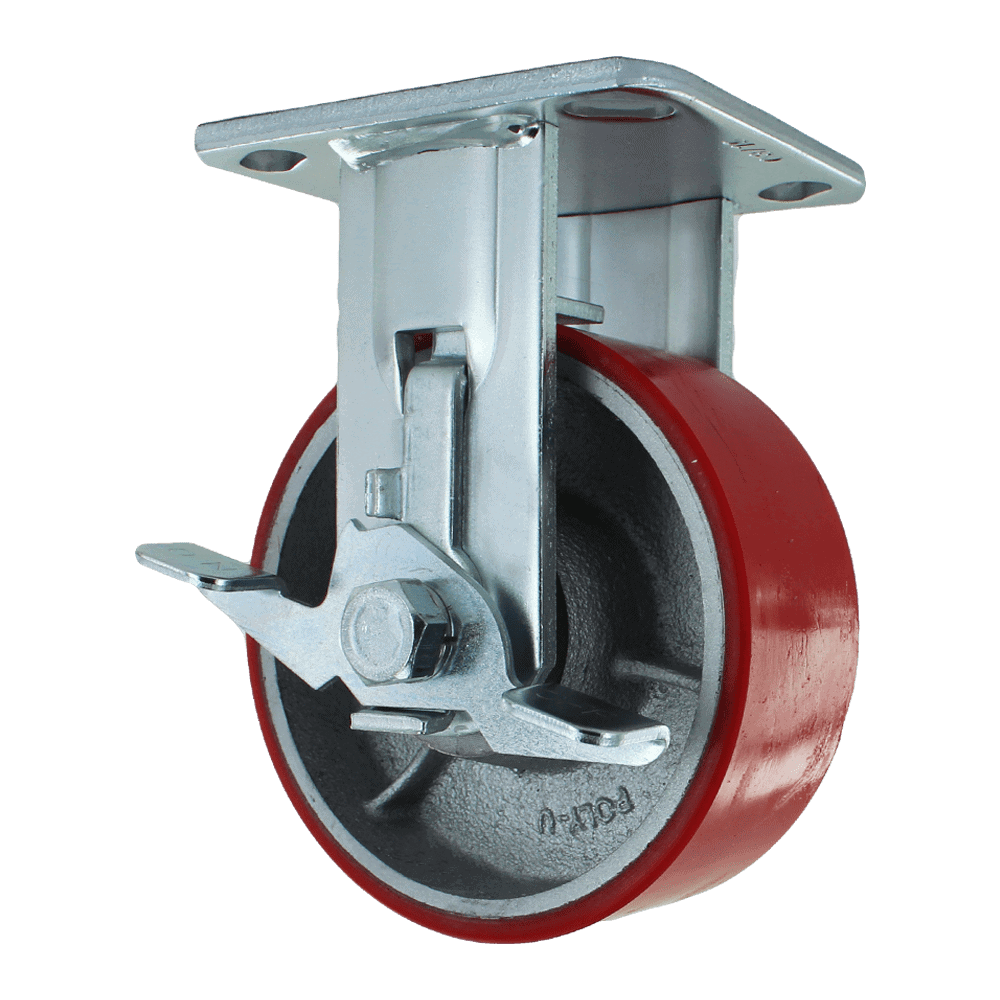

A 5″ medium/heavy duty rigid caster pairing a flat tread TPU wheel with a zinc plated steel yoke on a 4″ x 4-1/2″ top plate. It carries 1,000 lb, stands 7-1/2″ tall, and rolls on a 1/2″ steel dual precision bearing, operating from -30°F to 140°F.
| Product Series | |
|---|---|
| Series Type | Medium/Heavy Duty |
| Caster Type | |
| Wheel Part No | WZ4052P0Y |
| Wheel Diameter | |
| Wheel Tread Width | |
| Hub Width | |
| Wheel Profile | |
| Wheel Tread Material | TPU |
| Wheel Core Material | Steel |
| Wheel Durometer | |
| Wheel Color | |
| Bearing Type | |
| Bearing Material | |
| Bearing Size | |
| Axle Size | |
| Load Capacity | |
| Operating Temp | |
| Overall Height | |
| Caster Finish | |
| Threadguard | |
| Brake | |
| Attachment Method | |
| Mount Size | 4" x 4 1/2" |
| Warranty Duration | |
| Plate Hole Centers | |
| Weight |
Where it fits. Thermoplastic polyurethane is the general-purpose upgrade tread. It is non-marking, resists oils and most mild chemicals, and carries more load than rubber at the same diameter without the noise of a hard tread. TPU holds its shape under sustained static load, so carts parked loaded overnight are less prone to flat spots. This rigid model tracks straight and is normally specified two per cart with two swivel casters at the opposite end.
Construction. The yoke is formed from zinc-plated steel for corrosion resistance. It mounts on a 4″ x 4-1/2″ top plate with 3-1/8″ x 2-1/16″ bolt-hole centers. Thread guards are fitted to keep string, film, and debris out of the axle. This model is supplied with a side brake. A 1/2″ steel dual precision bearing rides on a 1/2″ axle for smooth, low-effort rolling.
Load and duty. The 1,000 lb rating is per caster. Standard practice is to size a four-caster set assuming three casters carry the load, so this model supports roughly a 3,000 lb cart with margin for shock loading and uneven floors. Continuous operating range is -30°F to 140°F.
About Series 40. Our medium and heavy duty line is engineered to make light work of heavy loads, handling up to 1,500 lb per caster with ergonomics and maneuverability in mind so that a loaded cart stays manageable. The line continues to expand as new industries bring us new requirements.
