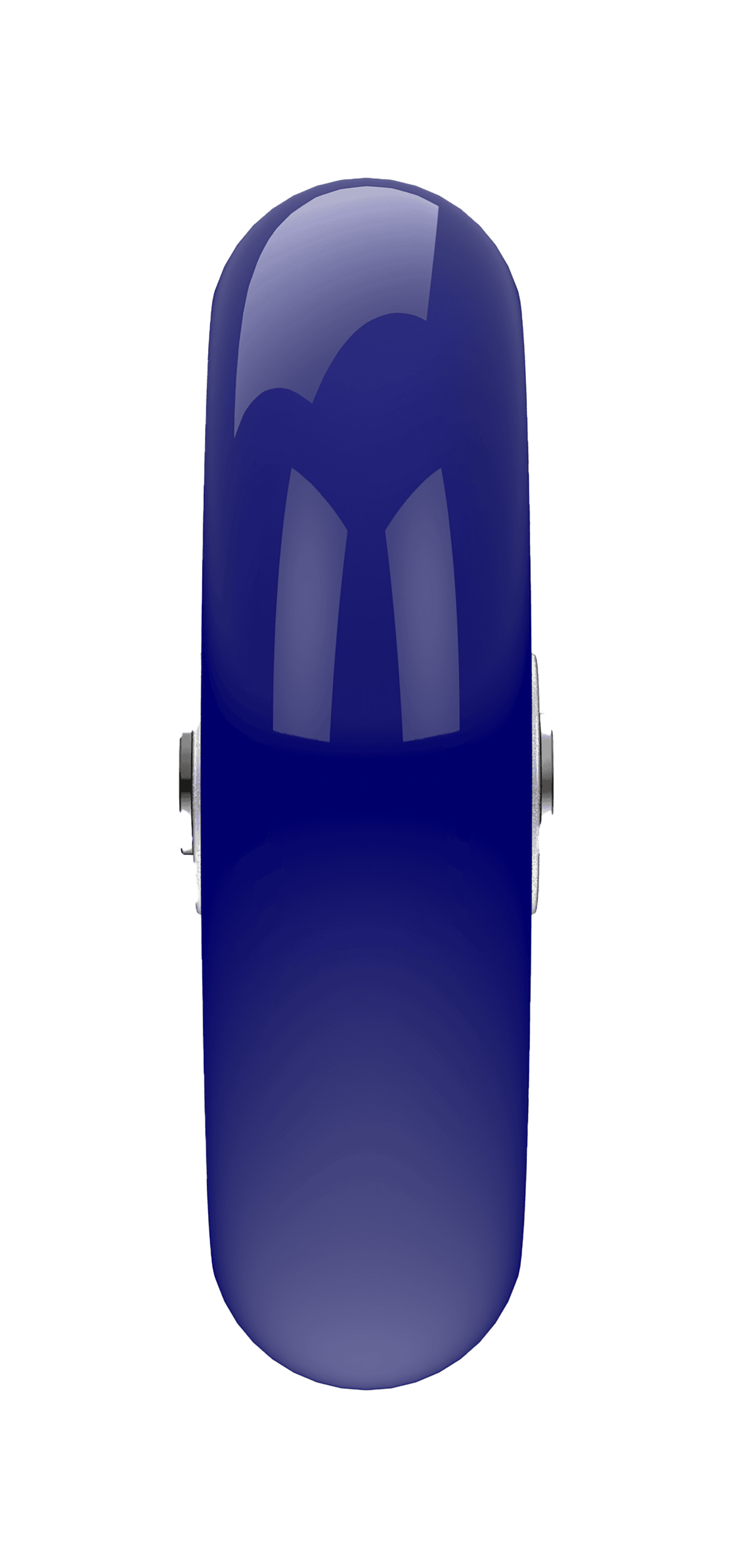

A 10″ heavy duty polyurethane wheel with a 2″ round low profile tread in blue on silver and running on a 1/2″ dual precision bearing with a 2-1/2″ hub. It carries 1,500 lb and operates from -30°F to 140°F, with a Shore A90 tread.
| Product Series | |
|---|---|
| Series Type | Heavy Duty |
| Wheel Diameter | |
| Wheel Tread Width | |
| Hub Width | |
| Wheel Profile | |
| Wheel Tread Material | Polyurethane |
| Wheel Core Material | Polyurethane |
| Wheel Durometer | |
| Wheel Color | |
| Bearing Type | |
| Wheel Bore Size | 1/2" |
| Bearing Material | |
| Load Capacity | |
| Bearing Size | |
| Operating Temp | |
| Warranty Duration | |
| Threadguard |
Where it fits. Polyurethane combines high load capacity with floor protection. The tread is non-marking, resists oils and most chemicals, and carries substantially more weight than rubber at the same diameter while still cushioning the load. It is the standard choice where capacity and floor finish both matter.
Construction. This is a solid polyurethane wheel with no separate core. Hub width is 2-1/2″. A 1/2″ steel dual precision bearing fits a 1/2″ axle.
Load and duty. The 1,500 lb rating is per wheel. Standard practice is to size a four-wheel set assuming three wheels carry the load, so this wheel supports roughly a 4,500 lb cart with margin for shock loading and uneven floors. Continuous operating range is -30°F to 140°F.
About Series 50. Series 50 wheels are our heavy duty line, designed for challenging environments and loads up to 5,000 lb, engineered for high shock and impact, maximum capacity at minimal height, and floor protection under load.
