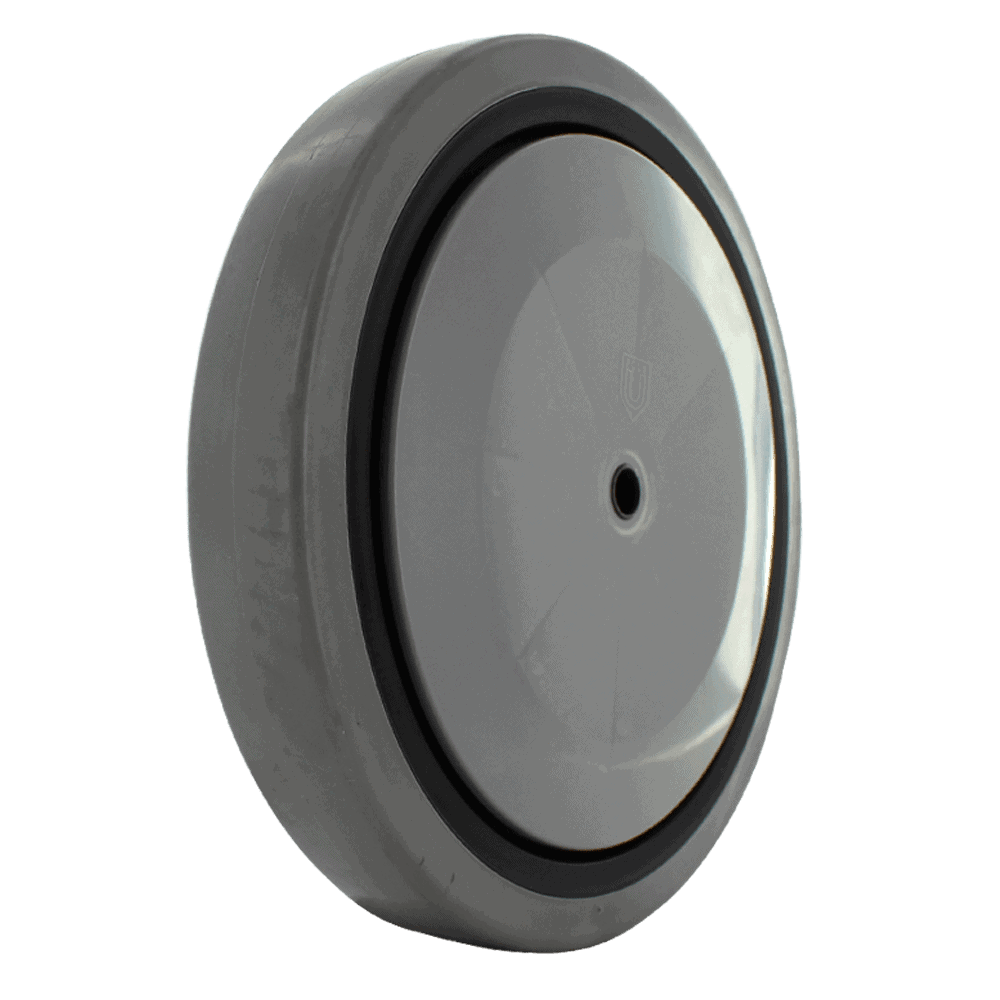

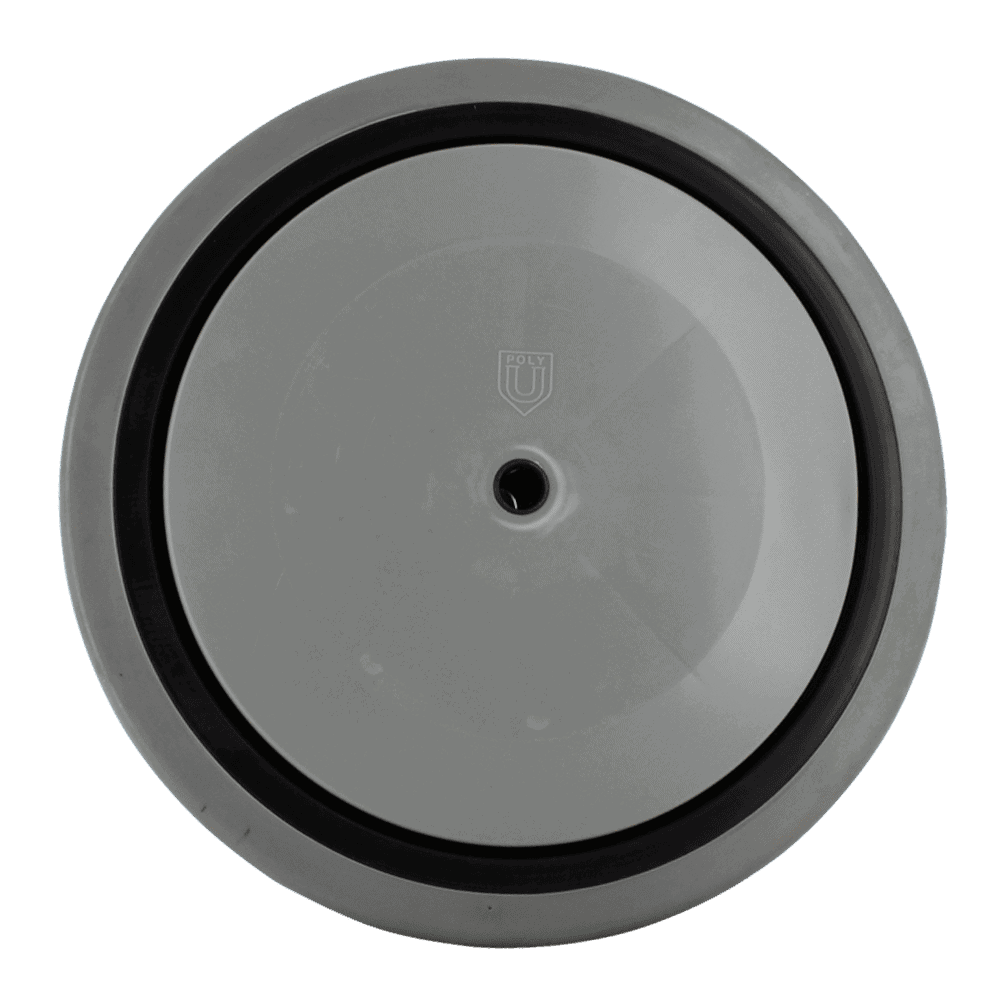

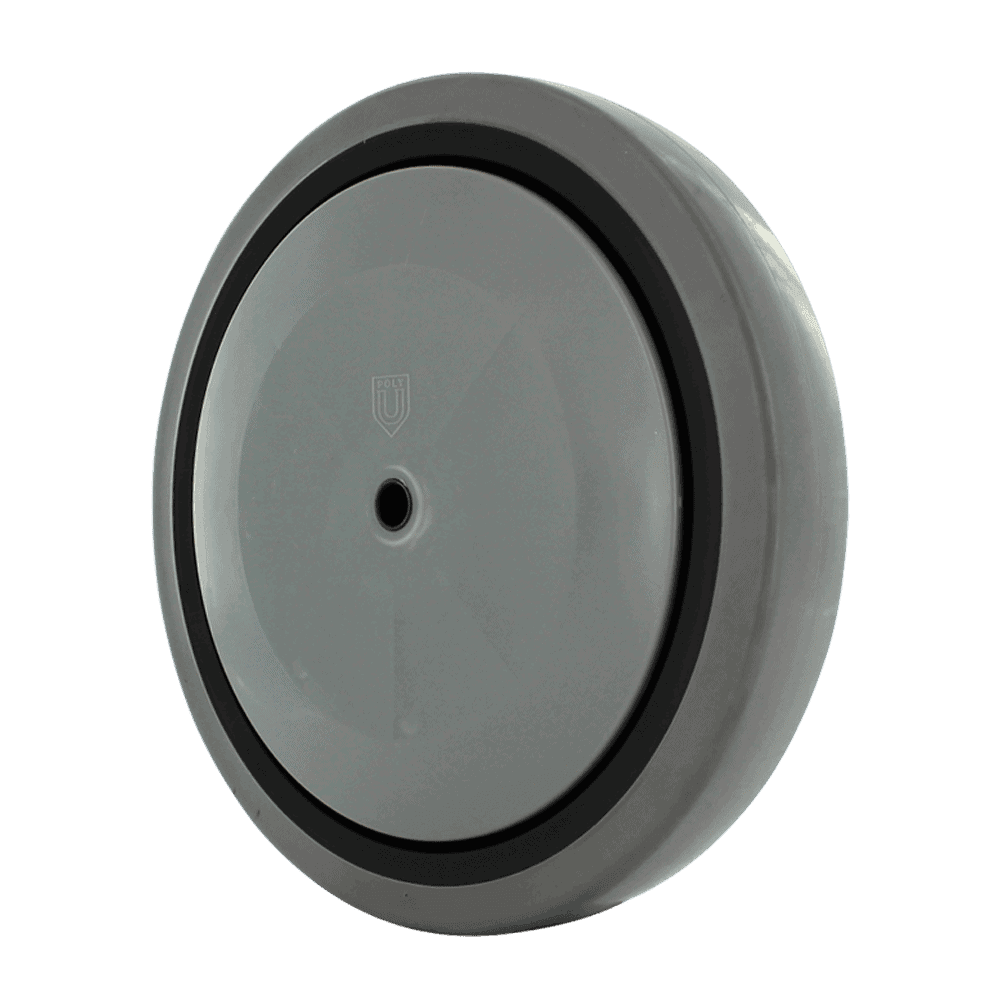

An 8″ industrial TPR wheel with a 1-1/4″ crown tread in gray on black and running on a 3/8″ dual precision bearing with a 1-13/16″ hub. It carries 350 lb and operates from -30°F to 140°F, with a Shore A70 tread.
| Product Series | |
|---|---|
| Series Type | Industrial |
| Wheel Diameter | |
| Wheel Tread Width | |
| Hub Width | |
| Wheel Profile | |
| Wheel Tread Material | TPR |
| Wheel Core Material | Polypropylene |
| Wheel Durometer | |
| Wheel Color | |
| Bearing Type | |
| Wheel Bore Size | 3/8" |
| Bearing Material | |
| Load Capacity | |
| Bearing Size | |
| Operating Temp | |
| Weight | |
| Warranty Duration | |
| Threadguard |
Where it fits. Thermoplastic rubber is the quiet, floor-friendly choice. The soft non-marking tread absorbs shock and rolls without the clatter a hard wheel produces on tile and sealed concrete, which makes it a common specification for patient areas, retail floors, and anywhere noise carries. Softer treads trade some rolling efficiency for that quiet.
Construction. The tread is molded to a polypropylene core. Hub width is 1-13/16″. Thread guards are fitted to keep string, film, and debris out of the bore. A 3/8″ steel dual precision bearing fits a 3/8″ axle.
Load and duty. The 350 lb rating is per wheel. Standard practice is to size a four-wheel set assuming three wheels carry the load, so this wheel supports roughly a 1,050 lb cart with margin for shock loading and uneven floors. Continuous operating range is -30°F to 140°F.
About Series 20. Series 20 wheels cover our light and medium duty range, from 150 lb to 400 lb per wheel. The series includes the crown tread polyurethane family that has become a standard in retail, along with our high temperature wheels for bakery and food service equipment.
