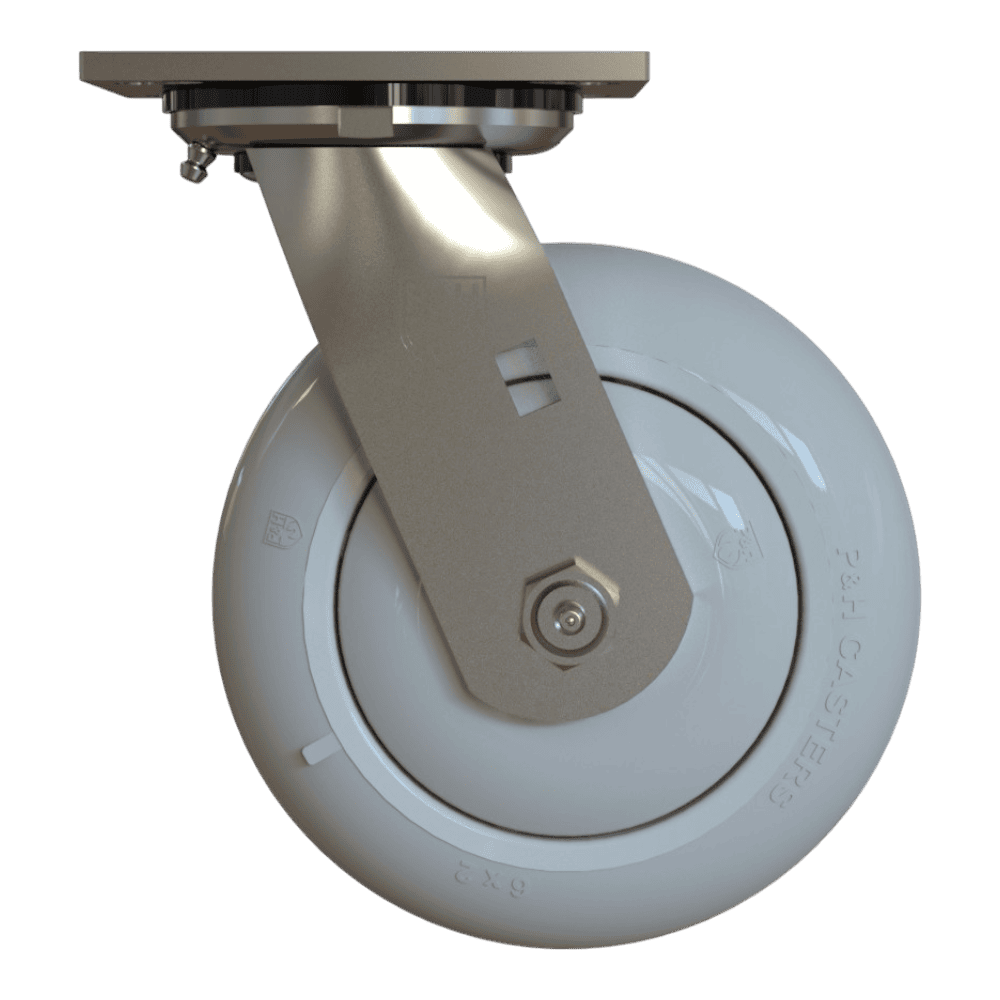

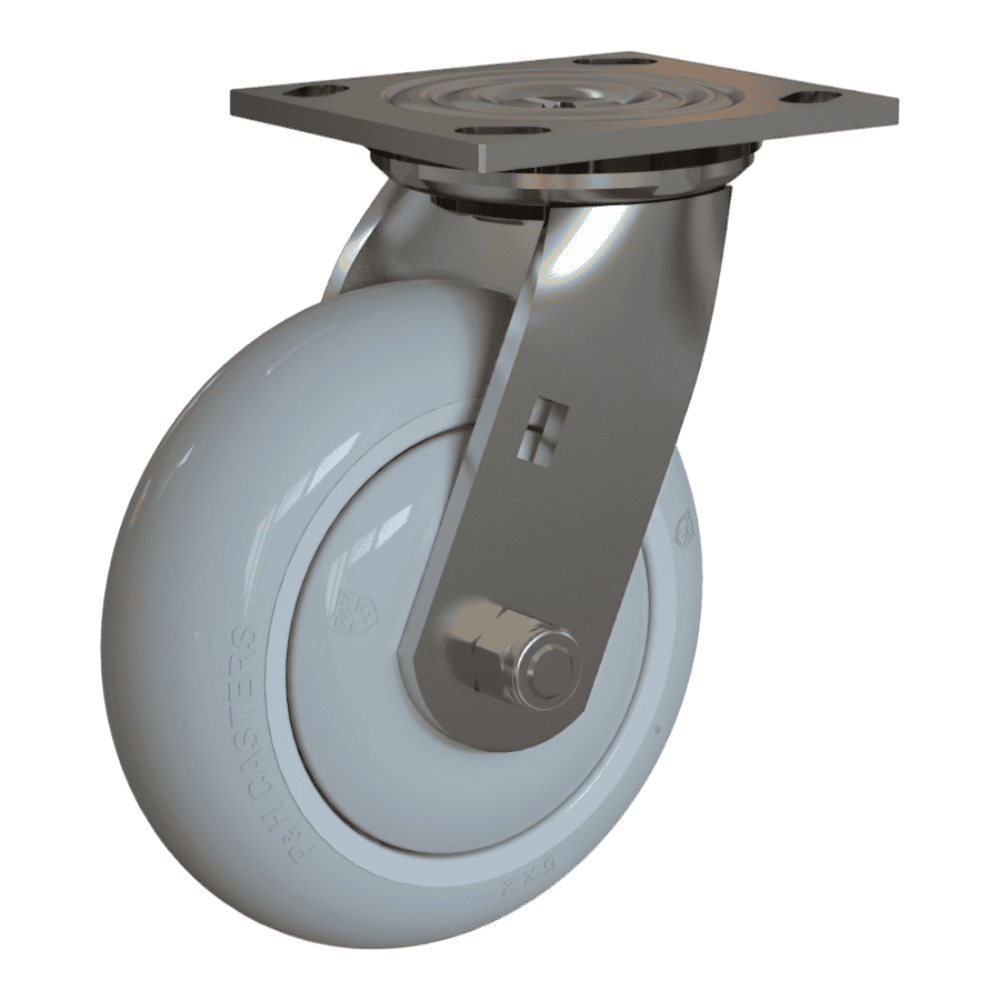

Front view of N40P362KGNZGL caster
Front view of N40P362KGNZGL caster

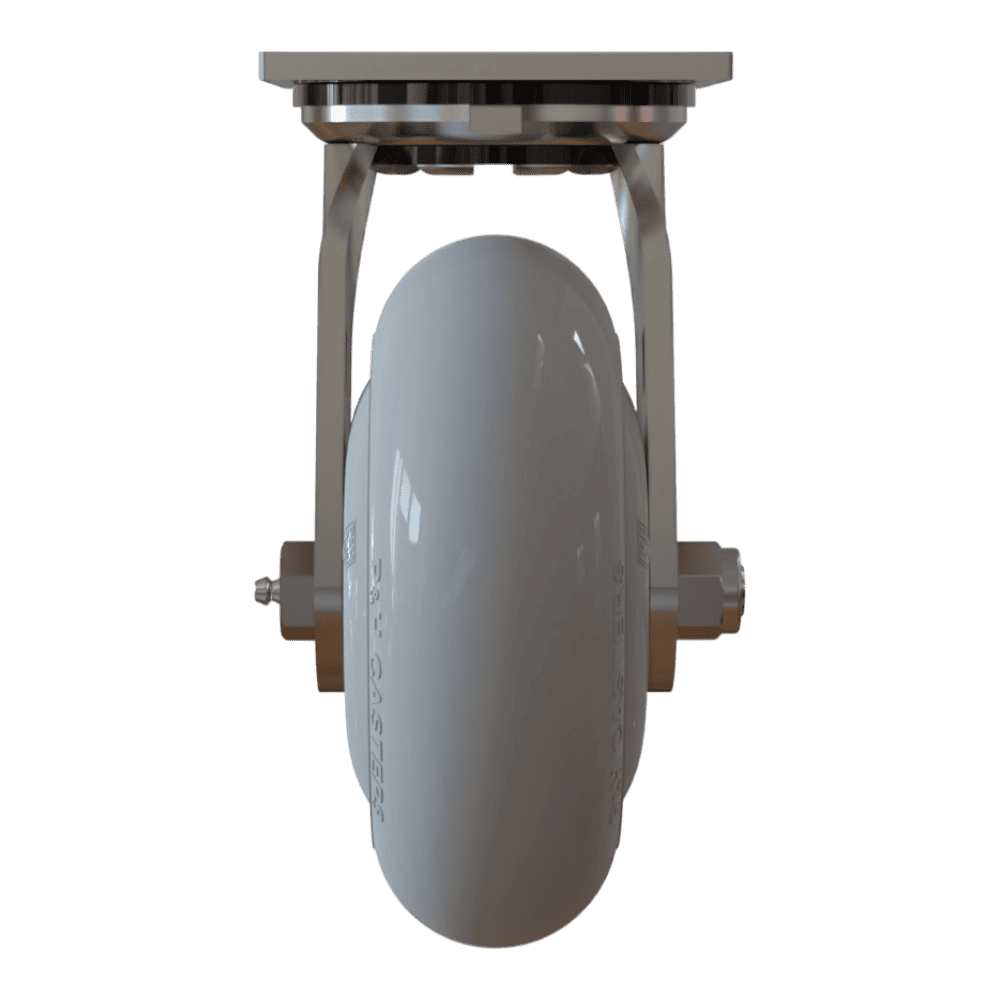

Side view of N40P362KGNZGL caster
Rear view of N40P362KGNZGL caster

N40P362KGNZGL

The N40P362KGNZGL is a 6″ x 2″ medium/heavy-duty swivel caster with a zinc-plated yoke, TPR wheel, and a load capacity of 450 lbs, designed for industrial and commercial use.

  • Caster Type:Swivel
  • Tread Width:2"
  • Wheel Diameter:6"
  • Wheel Type:TPR
  • Capacity:450 LBS
  • Finish:Zinc Plated, Non-Heat Treated
Category: Tags: , , , , , , , , , , , , , , , , , ,
Add to Quote
Compare
download

See Shipping information for details about shipping.

Questions? Contact Us

Additional information

Caster Type

Wheel Part No

Wheel Material

Attachment Method

Caster Finish

Product Series

Series Types

Industry

, , ,

Application

, , , ,

Threadguard

Overall Height

Swivel Radius

Weight

Axle Type

Wheel Diameter

Wheel Tread Width

Wheel Color

Axle Size

Bearing Type

Bearing Material

Wheel Profile

Hub Width

Wheel Durometer

Load Capacity

Operating Temp

Bearing Size

Warranty Duration

  • Ideal Applications:
    • Food Equipment: Smooth and silent operation ideal for kitchen and food service environments
    • Backroom: Perfect for stockroom carts and equipment
    • Hospitality: Suitable for luggage carts, housekeeping trolleys
    • Institutional: Great for hospital beds and medical carts
    • Material Handling: Efficient for industrial carts and transport equipment
    • Retail: Shopping carts, display racks
    • High Temp: Able to withstand higher temperature environments
    • Conveyor: Reliable for conveyor systems in warehouses
  • Material and Finish:
    • Yoke: Zinc plated, non-heat treated
    • Wheel: Thermoplastic rubber (TPR) with polypropylene core

    Dimensions:

    • Wheel Diameter: 6 inches
    • Tread Width: 2 inches
    • Overall Height: 7.5 inches
    • Plate Size: 4″ x 4 1/2″
    • Load Capacity: 450 lbs
    • Durometer: A70

    Bearing Type:

    • Roller bearing

    Special Features:

    • Gray-on-gray color scheme for professional appearance
    • Large gray thread guards to prevent debris from entering the wheel bearing
  • The N40P362KGNZGL caster is available in the following options:
    • Wheel Materials: Various compounds for different environments
    • Plate Sizes: Customizable plate sizes for specific mounting requirements
    • Bearing Types: Available with different bearing options, including precision ball bearings
