Caster Type | SWIVEL |
---|---|
Attachment Method | PLATE |
Attachment Size | 4″ X 4 1/2″ |
Plate Hole Centers | 2 13/16″ X 3 1/4″ |
Overall Height | 5 1/2″ |
Swivel Radius | 3 5/8″ |
Application | High Temperature, Material Handling |
Series | 20 |
Caster Finish | STAINLESS STEEL |
Wheel Material | EPOXY RESIN, HIGH TEMP |
Wheel Diameter | 4″ |
Load Capacity | 500 LBS |
Tread Width | 1.5″ |
Hub Width | 1.75″ |
Wheel Bearing | 5/16″ DUAL PRECISION |
Wheel Hardness | SHORE A98 |
Operating Temp | -20°F TO 550°F |
Weight | 1.9 |
Axle | 5/16″ |
Wheel Color | GREEN |
Grease Fittings | ZA |

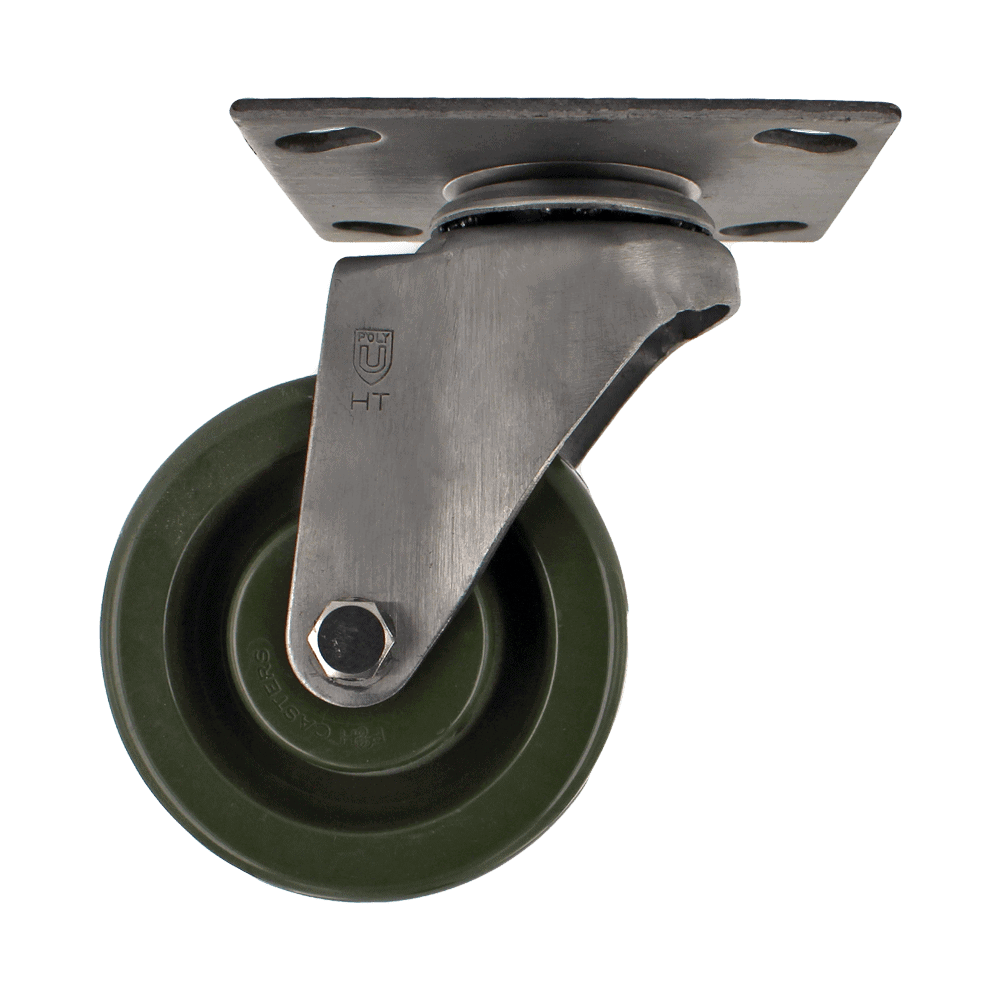

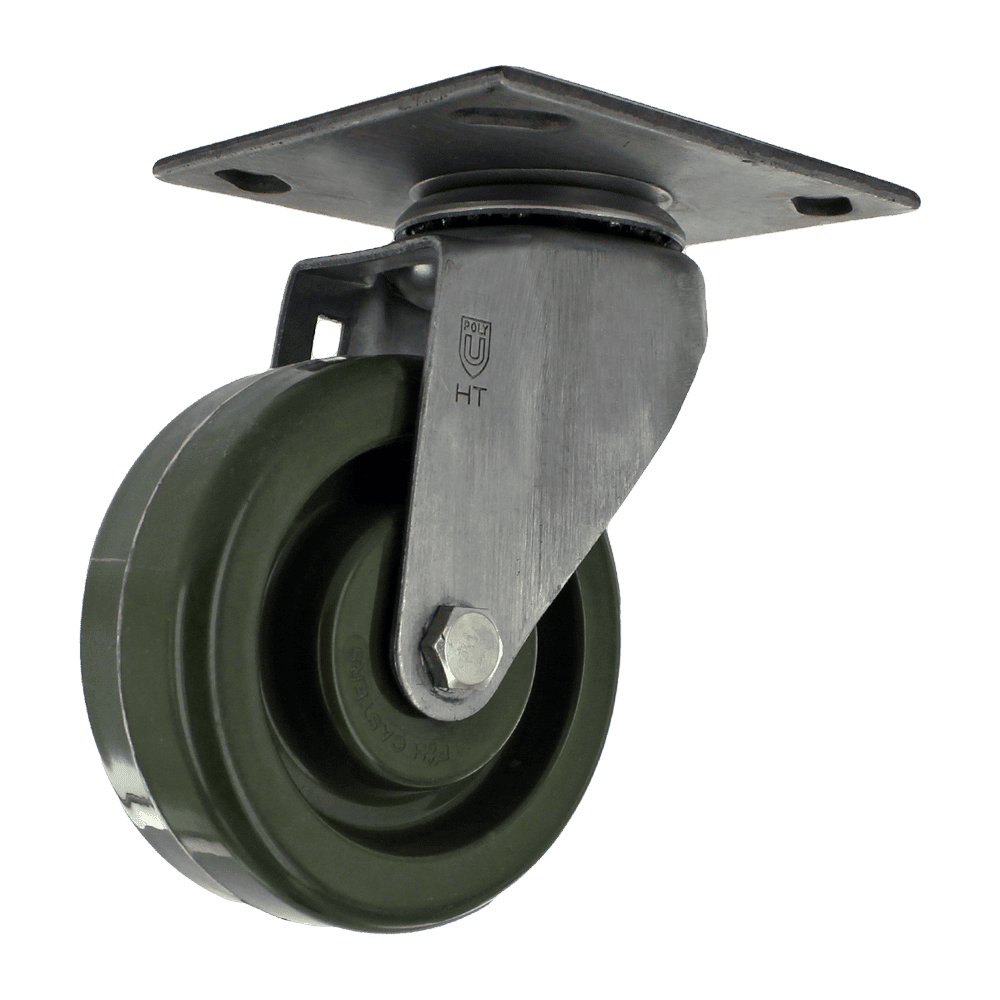

T20P3X31NGF
Light/Medium Duty Caster with 5″ Stainless Steel Yoke,
4″ X 4 1/2″ Plate Mount, 4″ X 1 1/2″ Flat Epoxy
Resin High Temperature Green Wheel with 5/16″
Dual Precision Bearing, 5/16″ Axle and Nut.
Overall height: 5 1/2″.
Wheel Part No.W12043NH
- Food service equipment
- Bakery equipment
- High temperature applications
- Oven carts and racks
- Pan and tray storage carts
- Cooler carts
- Platter carts
Our Series 20 Light/Medium duty casters support individual weight capacities of 150 lbs. to 400 lbs. They function well in day to day use and general purpose applications. Series 20 products include a wide range of light/medium duty casters in zinc, stainless steel and the P&H rust resistant plastic caster models.
The Series 20 product line also includes our Precision Raceway line of medium duty casters that utilize a precision bearing raceway in the swivel. These very specialized casters are guaranteed to increase performance and reduce noise in any application.
Spanish Product Data Sheet
Some of our most popular casters that are standards in the retail industry and our High Temperature caster family are part of our expansive Series 20 casters.
The P&H line of High Temperature casters are designed to withstand temperatures ranging from -20° F up to 550° F, so they can go directly from the freezer to the oven. Made from shock and impact resistant epoxy resin or durable phenolic materials, these casters are unaffected by most chemicals, water or steam — making them the perfect choice for in-store bakeries and food service operations.
Mounting options include several plate sizes in both swivel and rigid models, square, round, friction and expandable stem attachments.
