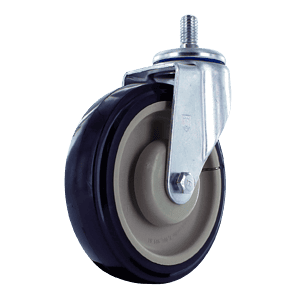

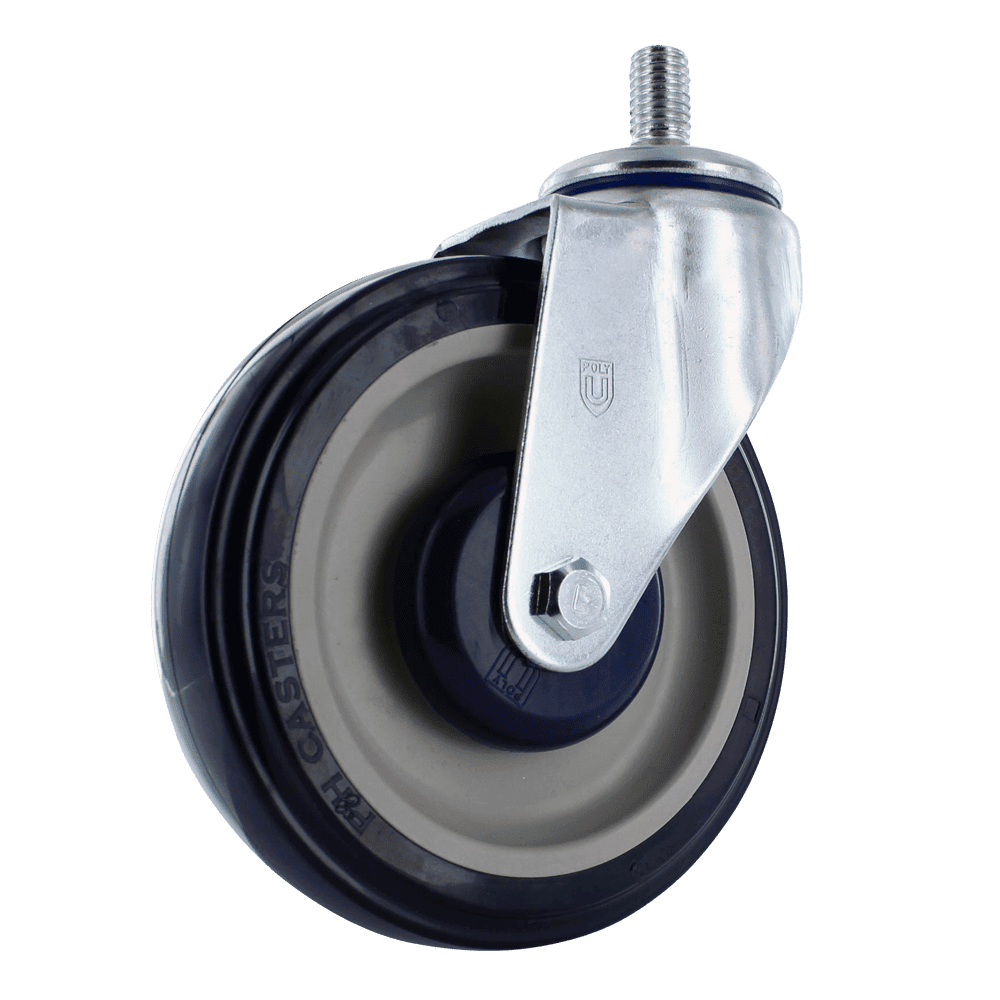

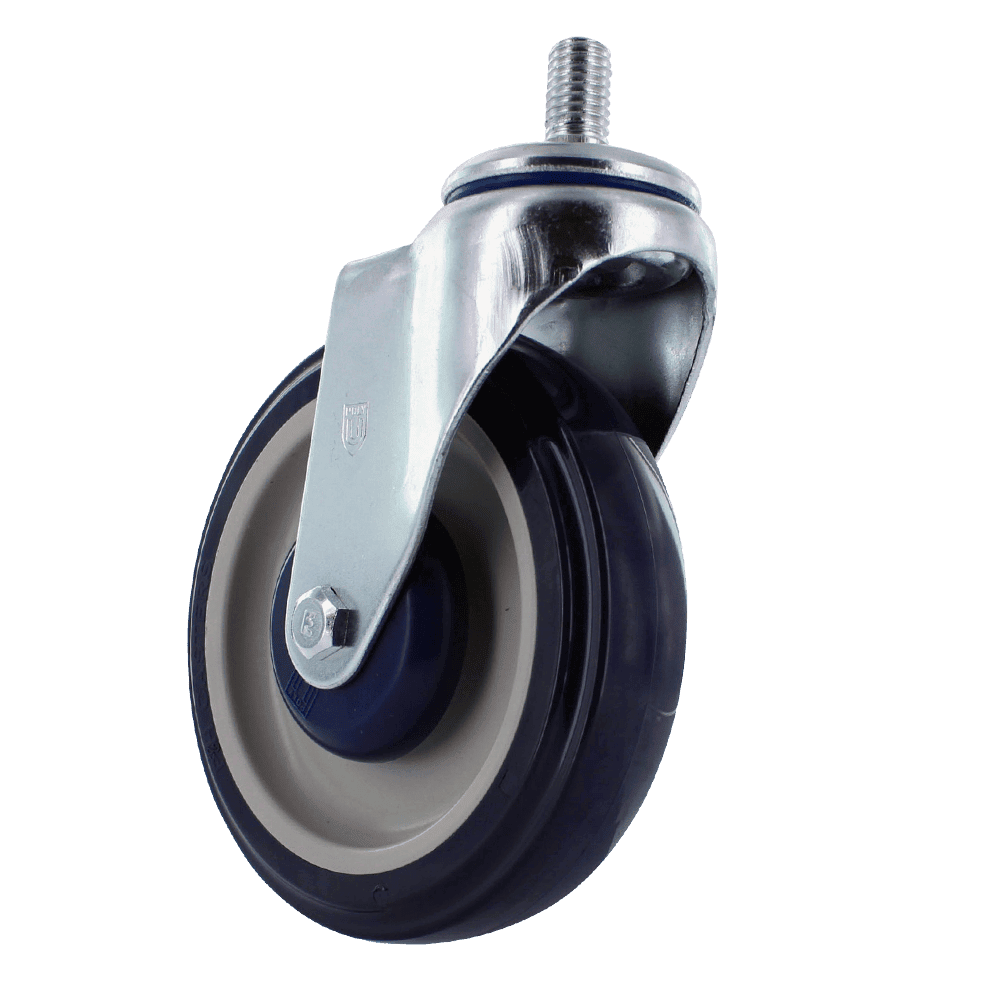

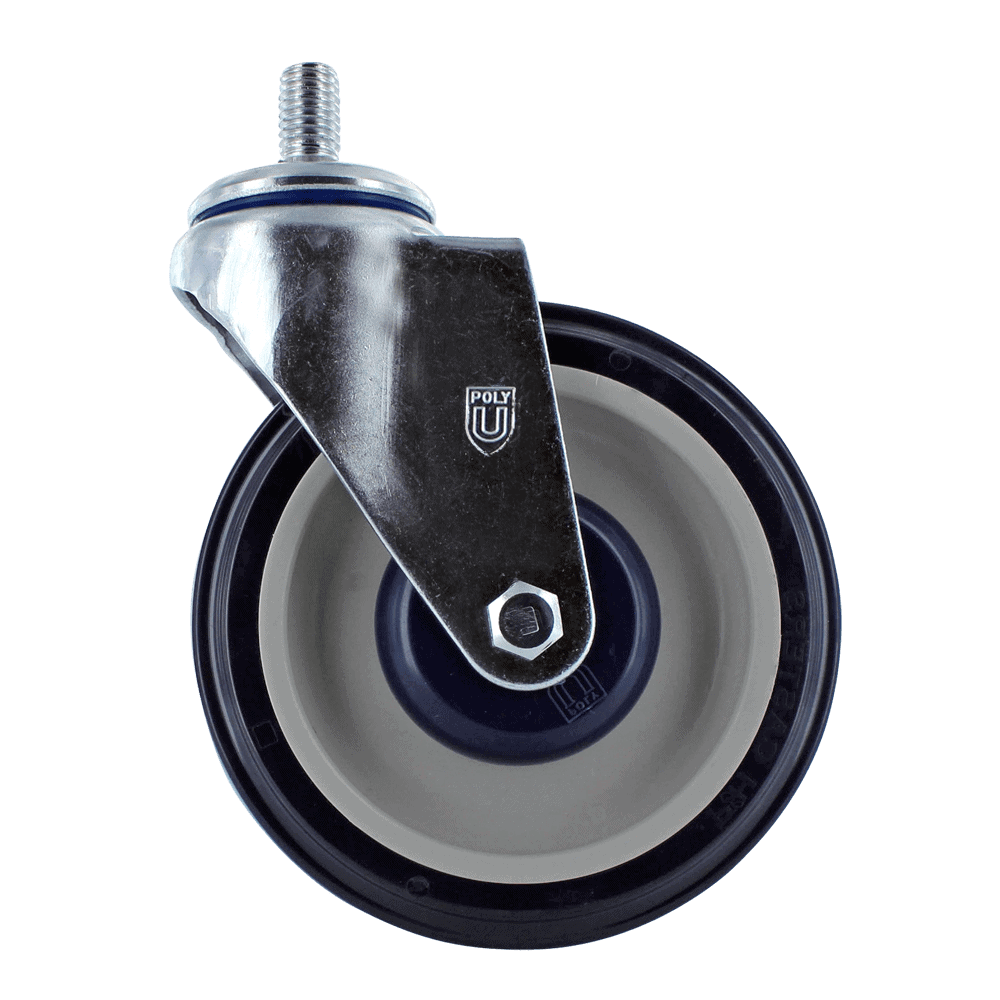

A 5″ shopping cart swivel caster pairing a crown tread TPU wheel with a zinc plated steel yoke on a 1/2″ x 13 x 7/8″ threaded stem. It carries 250 lb, stands 6″ tall, has a 4″ swivel radius, and turns on a 5/16″ steel dual precision bearing, operating from -30°F to 140°F.
| Product Series | |
|---|---|
| Series Type | Shopping Cart |
| Caster Type | |
| Wheel Part No | WC2054LD |
| Wheel Diameter | |
| Wheel Tread Width | |
| Hub Width | |
| Wheel Profile | |
| Wheel Tread Material | TPU |
| Wheel Core Material | Polypropylene |
| Wheel Durometer | |
| Wheel Color | |
| Bearing Type | |
| Bearing Material | |
| Bearing Size | |
| Axle Size | |
| Load Capacity | |
| Operating Temp | |
| Overall Height | |
| Swivel Radius | |
| Caster Finish | |
| Threadguard | |
| Attachment Method | |
| Mount Size | 1/2" x 13 x 7/8" |
| Warranty Duration | |
| Weight | |
| Shopping Cart Method |
Where it fits. Thermoplastic polyurethane is the general-purpose upgrade tread. It is non-marking, resists oils and most mild chemicals, and carries more load than rubber at the same diameter without the noise of a hard tread. TPU holds its shape under sustained static load, so carts parked loaded overnight are less prone to flat spots. This swivel model rotates a full 360 degrees and is normally specified two per cart with two rigid casters at the opposite end, or four per cart where the equipment has to move sideways in tight aisles.
Construction. The yoke is formed from zinc-plated steel for corrosion resistance. It uses a threaded stem attachment. Thread guards are fitted to keep string, film, and debris out of the axle. A 5/16″ steel dual precision bearing rides on a 5/16″ axle for smooth, low-effort rolling.
Load and duty. The 250 lb rating is per caster. Standard practice is to size a four-caster set assuming three casters carry the load, so this model supports roughly a 750 lb cart with margin for shock loading and uneven floors. Continuous operating range is -30°F to 140°F.
About Series 30. Series 30 is built for retail, with a focus on shopping cart equipment. P&H has specialized in shopping cart wheels and casters since the 1980s, and our shopping cart casters have become a standard across much of the US retail market. The series also includes travelator and moving walkway casters for carts found primarily outside the US.
