Caster Type | SWIVEL |
---|---|
Attachment Method | PLATE |
Attachment Size | 4″ X 4 1/2″ |
Plate Hole Centers | 3 1/8″ X 2 1/16″ |
Overall Height | 7″ |
Application | Backroom, Institutional, Material Handling, Specialty |
Series | 40 |
Caster Finish | STAINLESS STEEL |
Wheel Material | SOLID URETHANE |
Wheel Diameter | 5″ |
Load Capacity | 800 LBS |
Tread Width | 2″ |
Hub Width | 2.5″ |
Wheel Bearing | 1/2″ QUAD X |
Wheel Hardness | SHORE A70 |
Operating Temp | -30°F TO 140°F |
Axle | 1/2″ |
Side Brake | SIDE BRAKE |

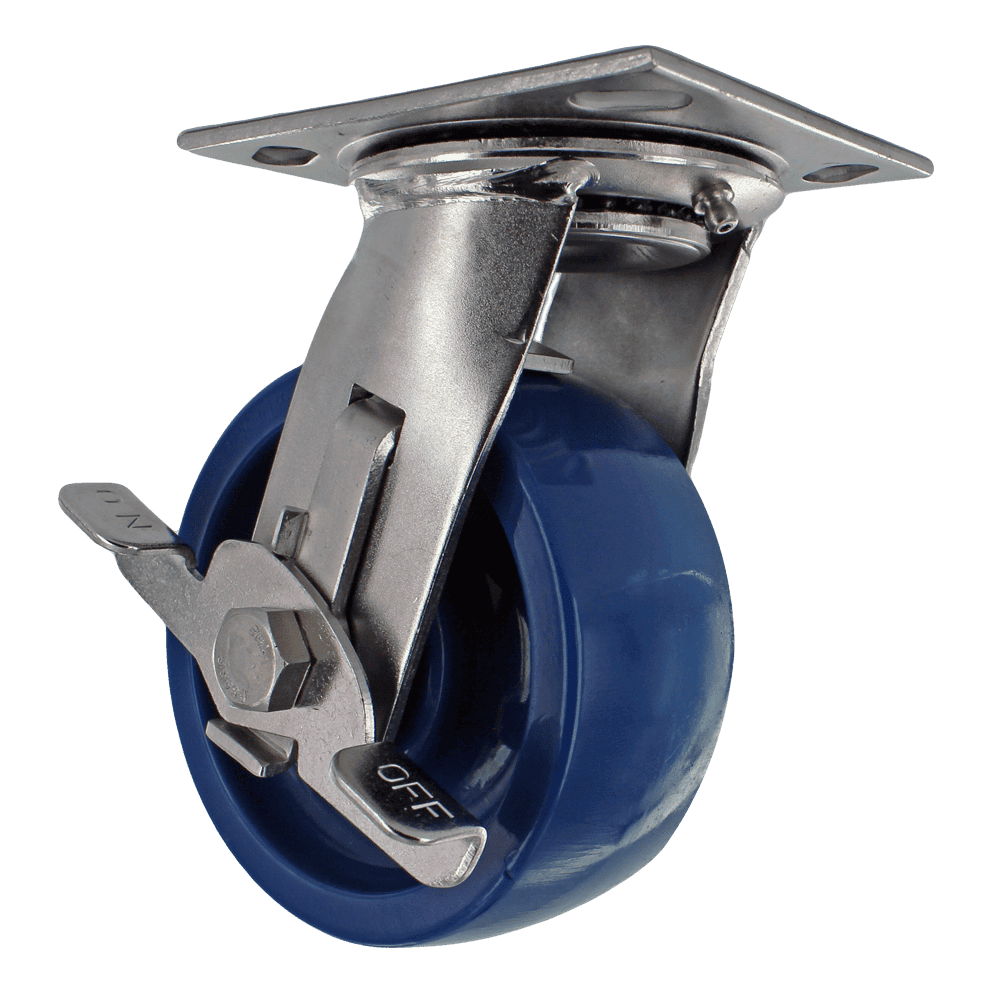

T40P352EUPM3S
Medium/Heavy Duty Caster with Stainless Steel Yoke and 4″ X 4 1/2″
Plate Mount. 5″ X 2″ Flat Tread Solid Urethane Blue Wheel with 1/2″
Stainless Steel Precision QuadX Bearing, 1/2″ Stainless Steel Axle
and Nut. With Side Brake.
Wheel Part No.WE4052UPA
Download Product Data SheetMaterial handling
Distribution
Back room
Industrial
Platform & stock trucks
Dollies
Trash, mail & cargo containers
Freight terminal trucks
Automotive Equipment
Toolboxes
Commercial kitchen equipment
Janitorial Equipment
Р & H has developed a broad line of casters and wheels to make light work of heavy loads. Our products are designed to handle loads up to 1500 lbs. with ergonomics and maneuverability in mind to make any type of cart manageable in a wide range of environments.
Our Medium/Heavy duty line is constantly expanding to meet the needs of the wide range of industries that have a requirement for these products.
P&H Medium/Heavy duty casters and wheels are available in several finishes, with a wide selection of wheels.
The options for brakes, bearing and other features are as unlimited as your requirements. If you don’t see what you need in our standard inventory of products, talk to us about specialized design!
Top, side and total lock brakes
Precision/Dual Precision and Quad X bearings
Sealed raceways
Plain Bore / No Bearing or Spanner Bushings
Wheel Bearing Seals
Delrin Bearings
Recommended Products
-

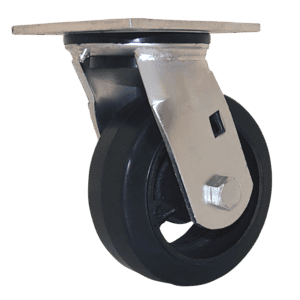

Z40P382MBNL
